Disassembly and Assembly

Disassembly and Assembly

[F4A5A>

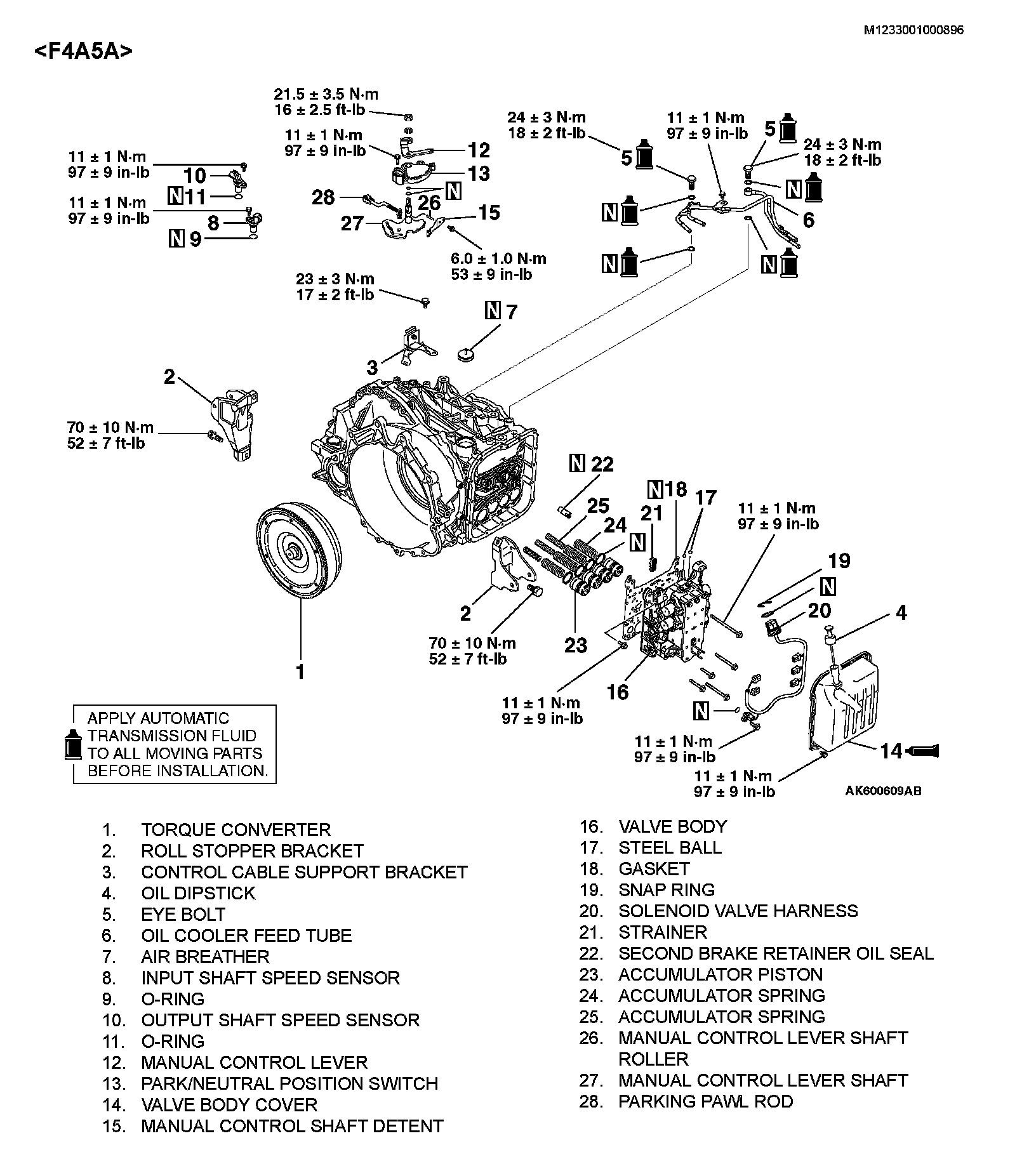

Steps 1-28:

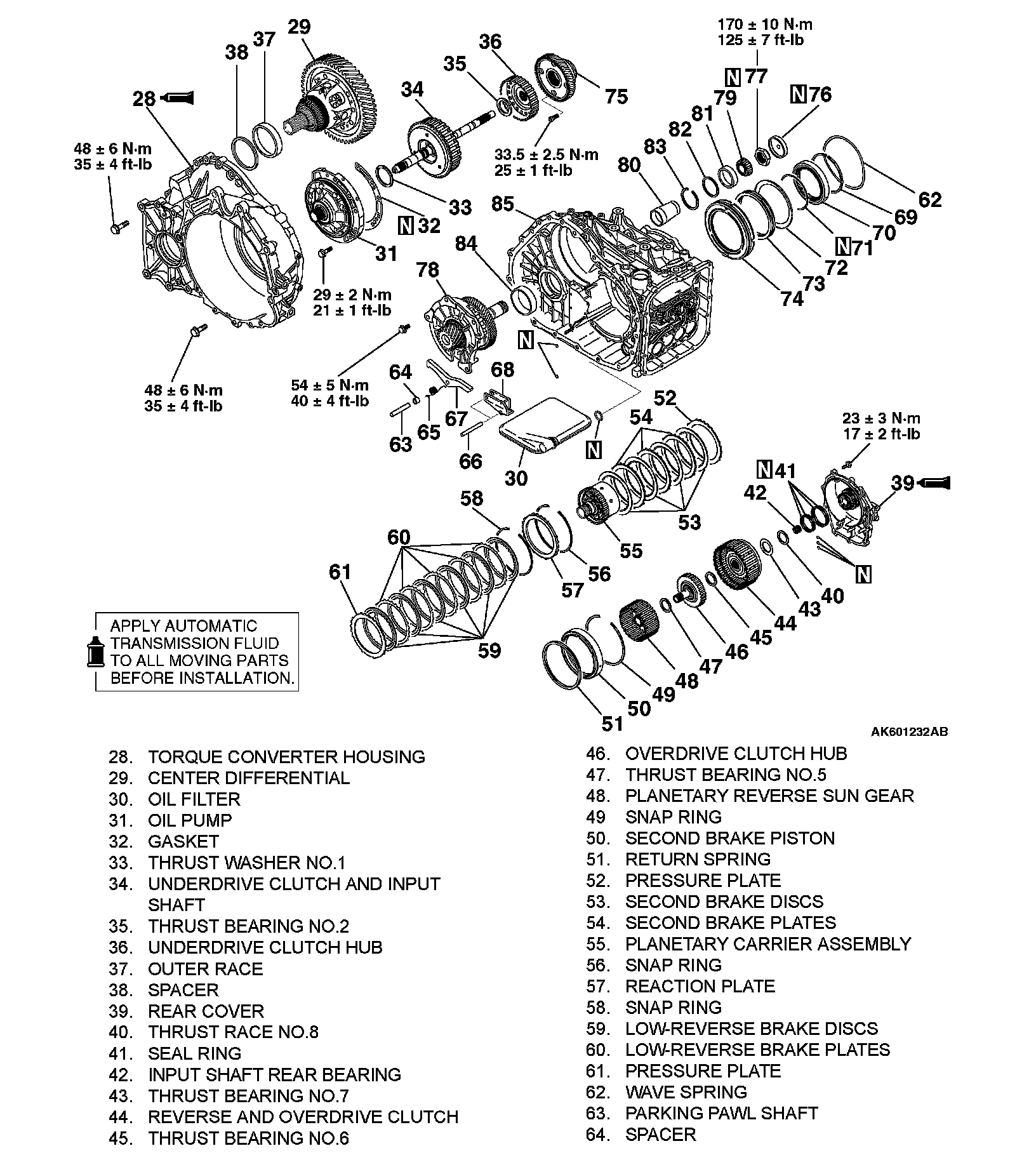

Steps 29-73:

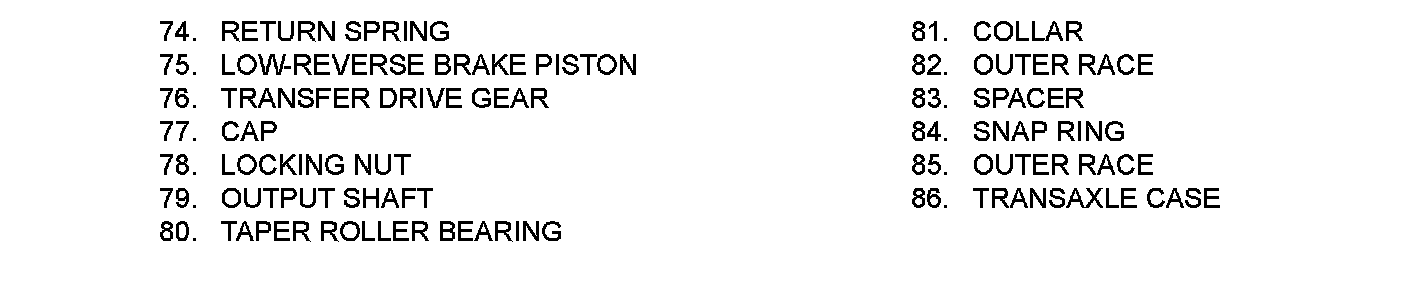

Steps 74-86:





[W4A5A>

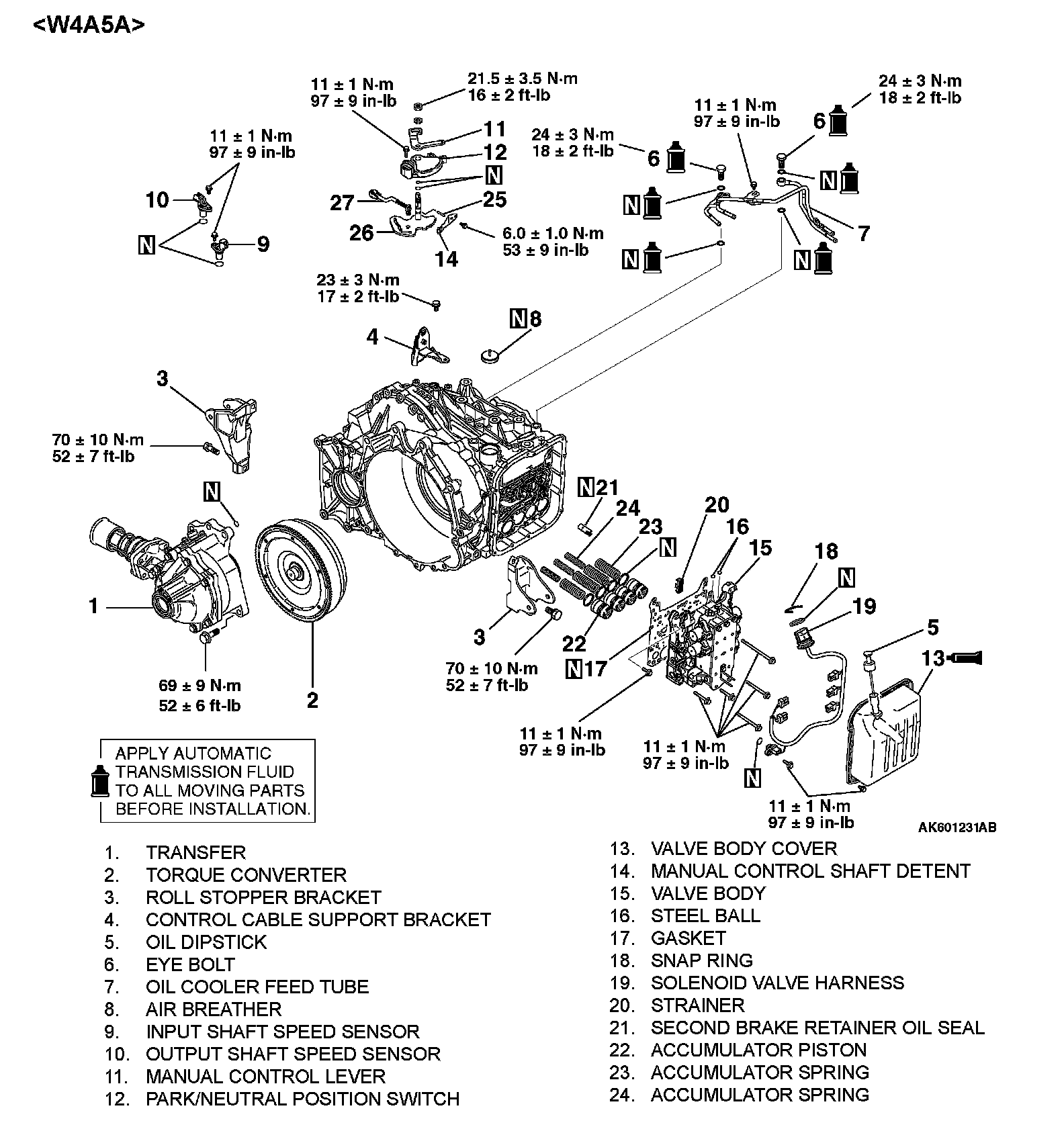

Steps 1-24:

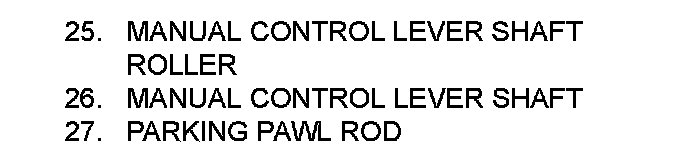

Steps 25-27:

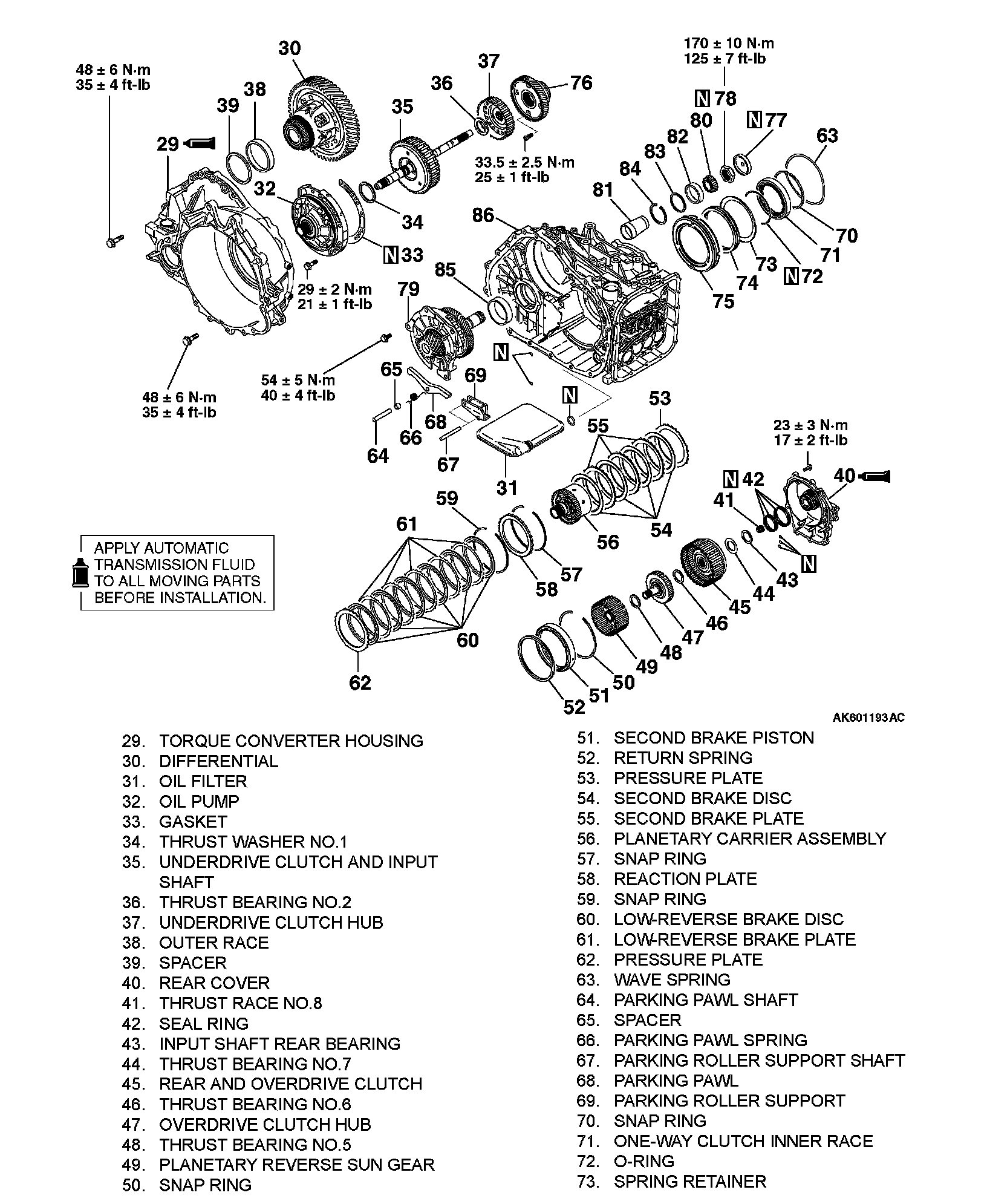

Steps 28-64:




Steps 65-85:
