Fuse: Application and ID
CENTRALIZED JUNCTIONFUSIBLE LINK AND FUSE

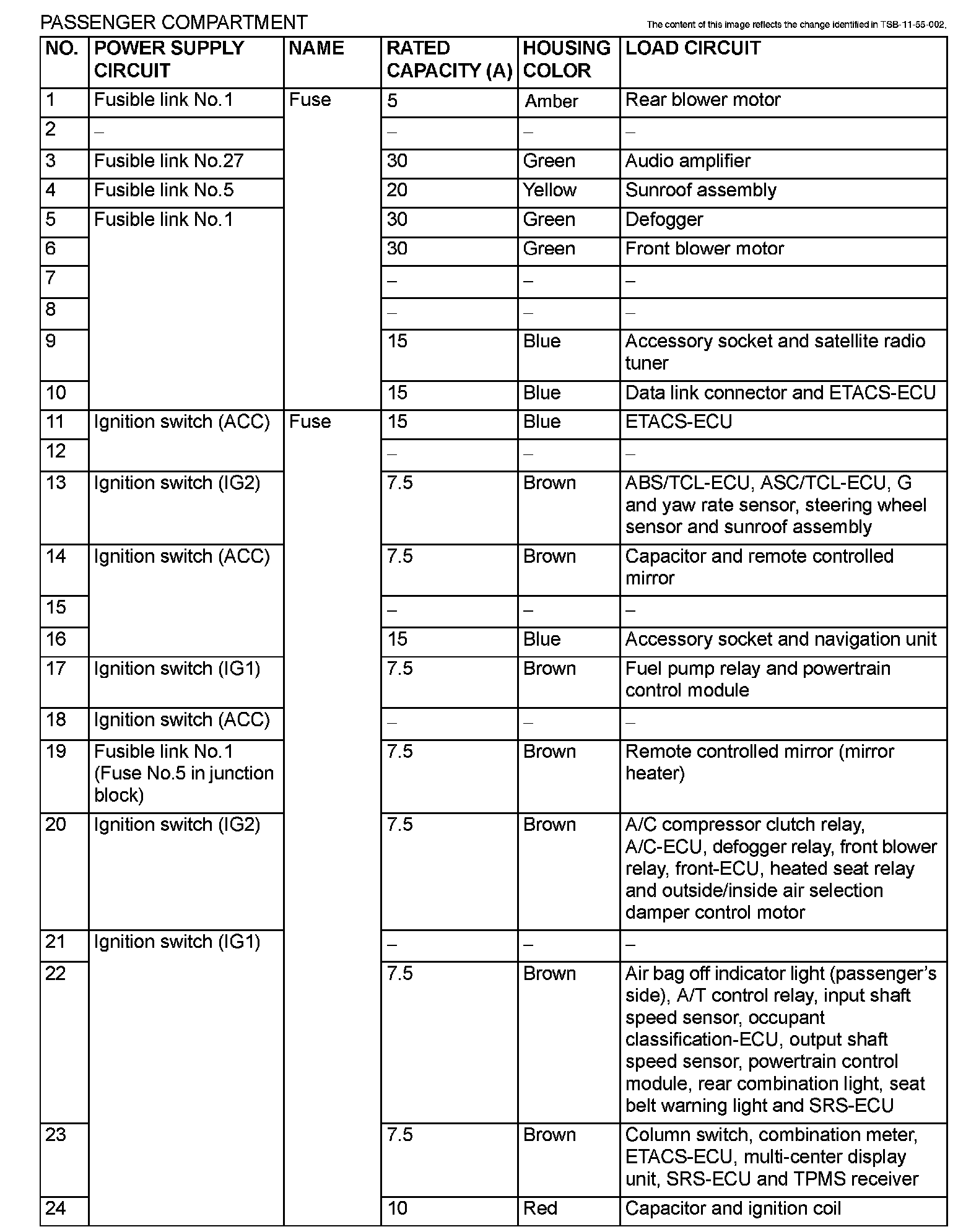

Application Table Part 1:

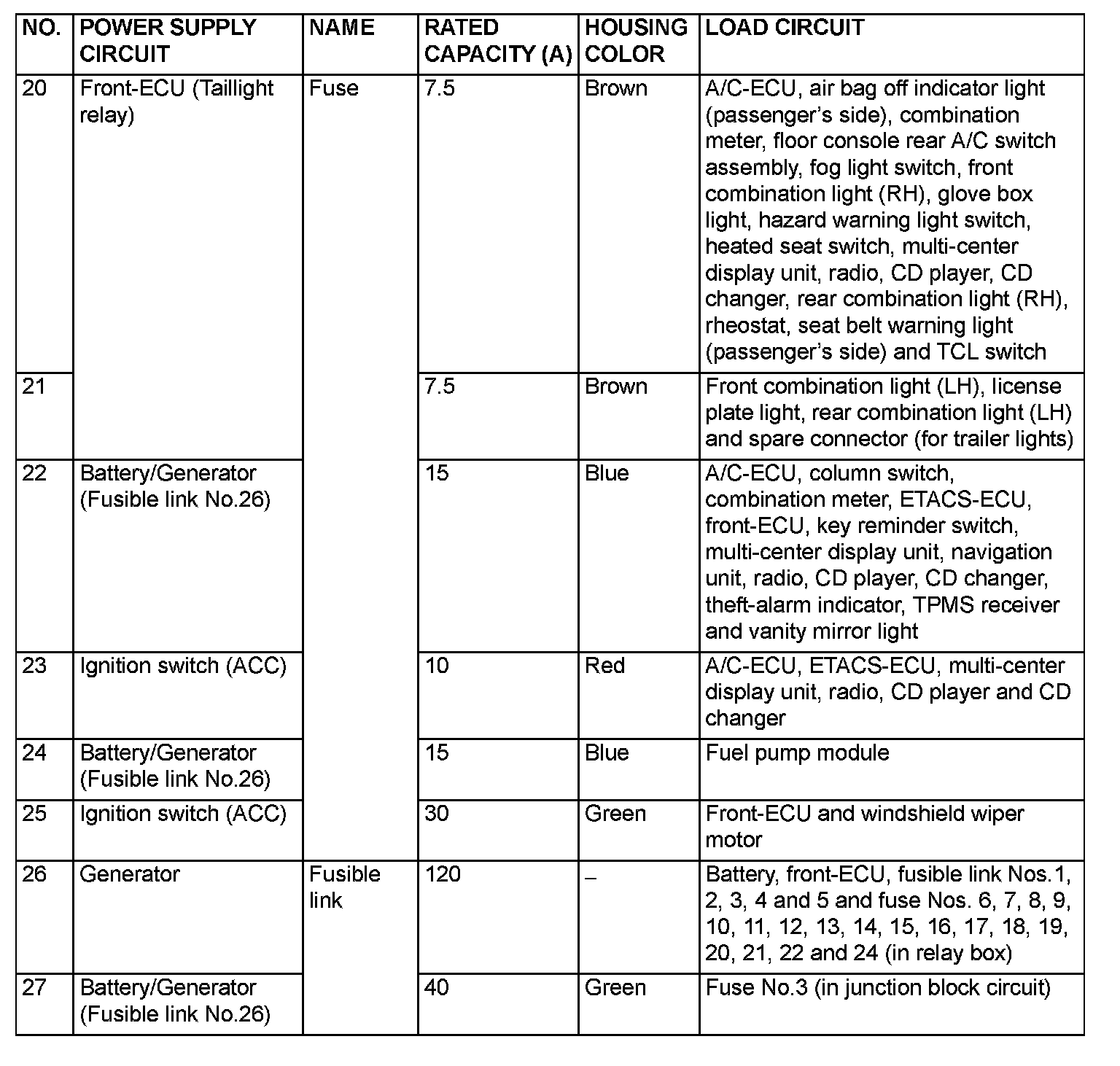

Application Table Part 2:

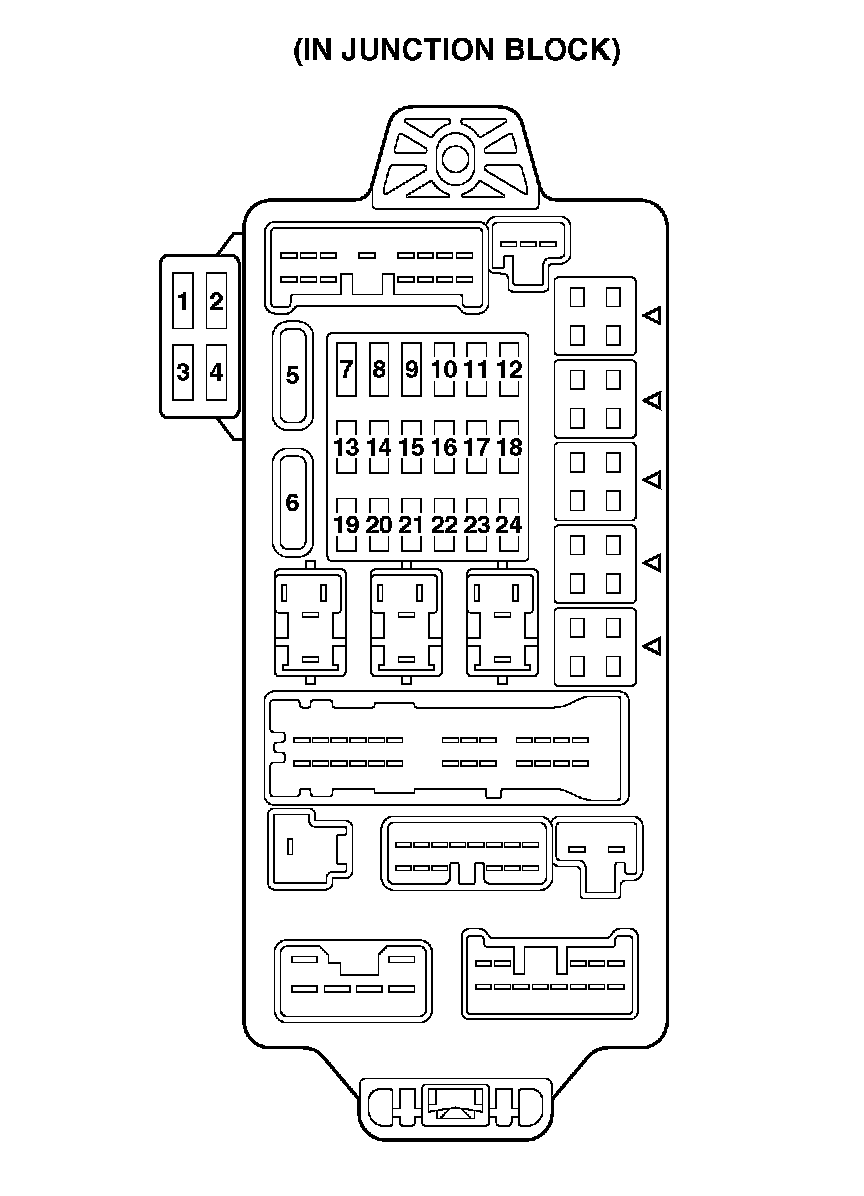

Location View:
ENGINE COMPARTMENT

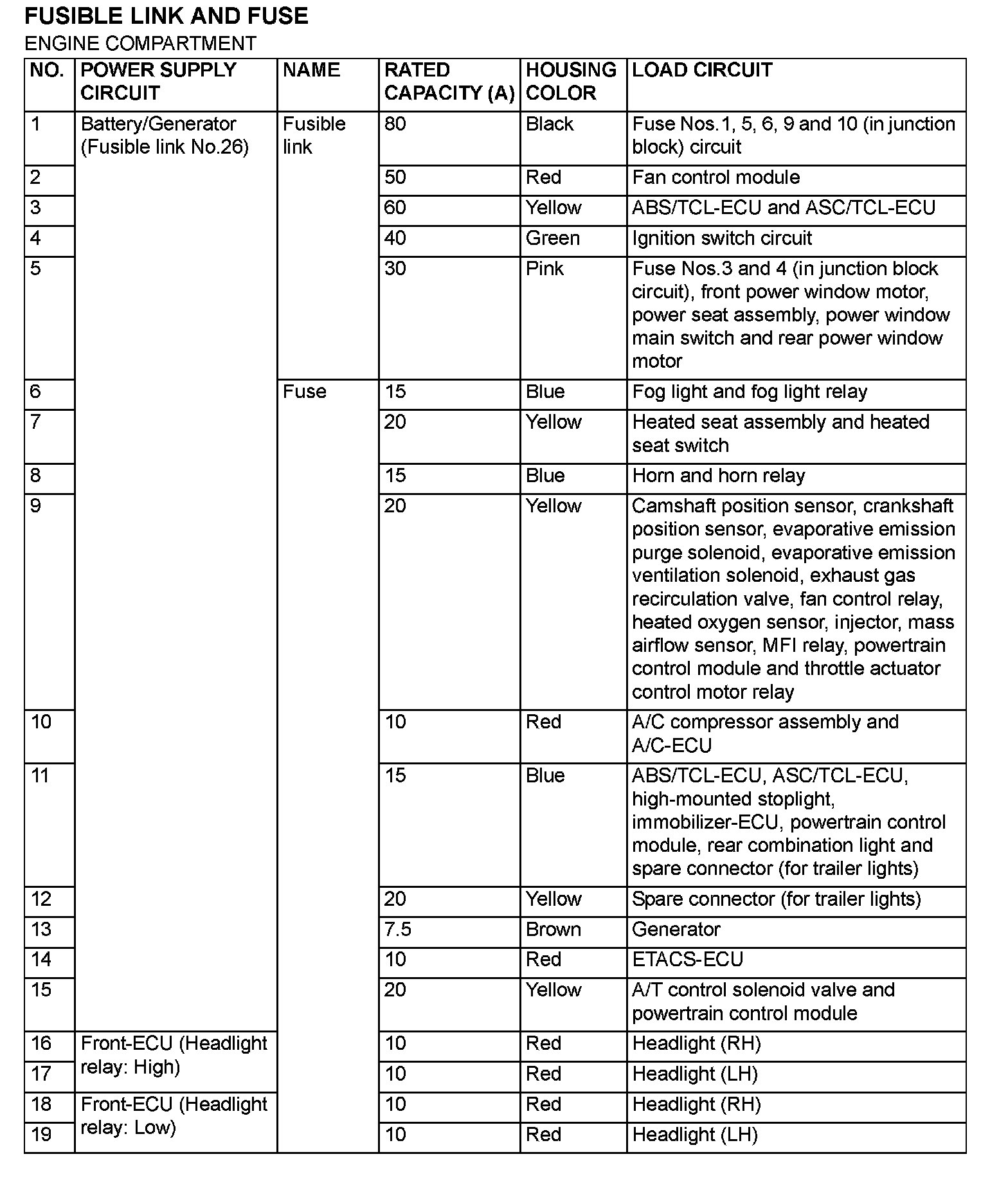

Application Table:
Location View:
PASSENGER COMPARTMENT
FUSIBLE LINK AND FUSE
ENGINE COMPARTMENT
PASSENGER COMPARTMENT
