Fuel Pump Relay Continuity Check







FUEL PUMP RELAY CONTINUITY CHECK

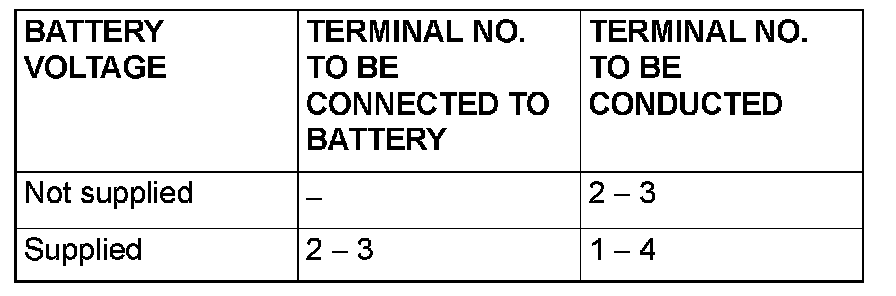

Inspect the fuel pump relay for continuity in accordance with the chart shown.
