Symptom Chart

SYMPTOM CHART

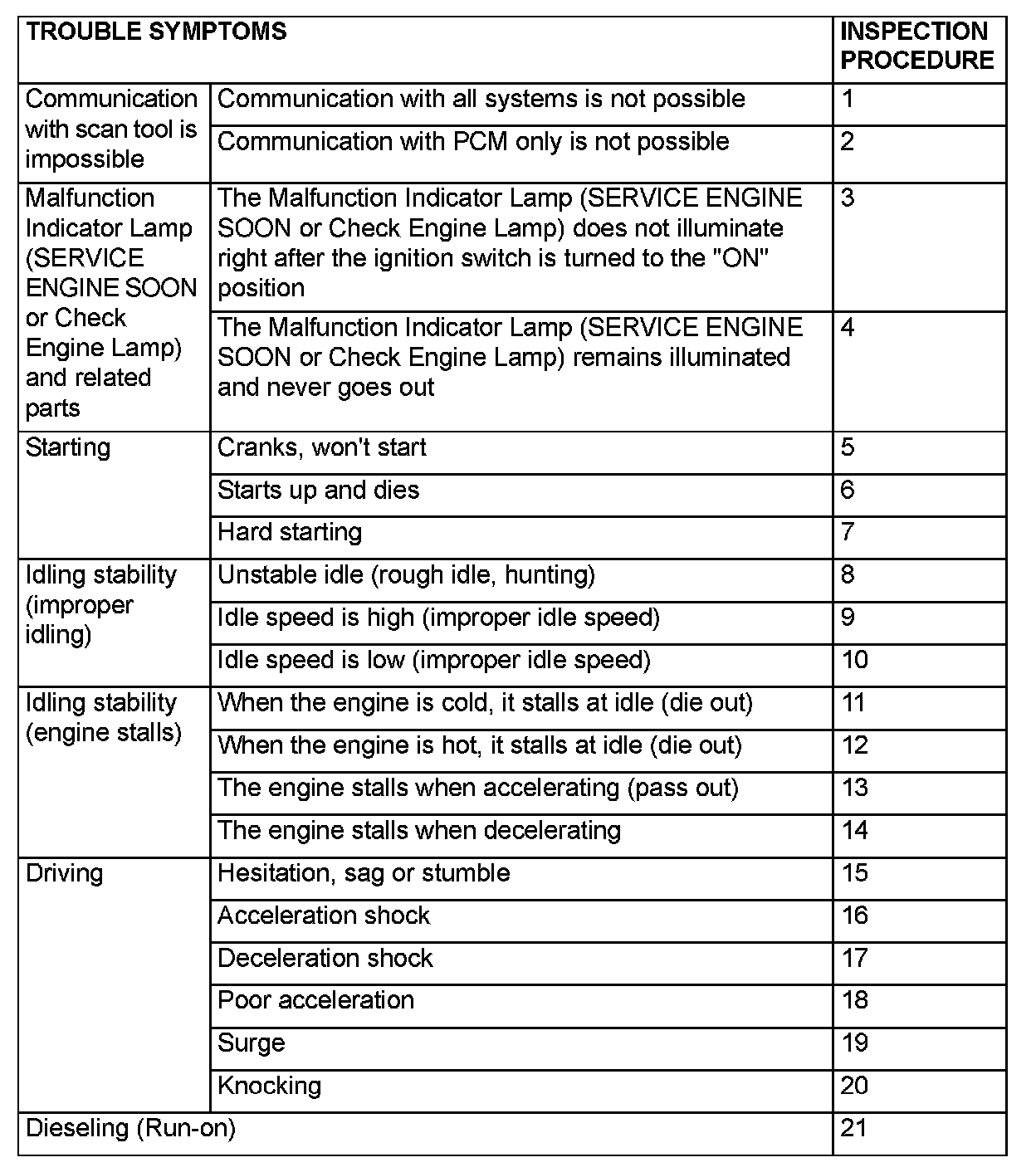

Inspection Chart For Trouble Symptoms Part 1:

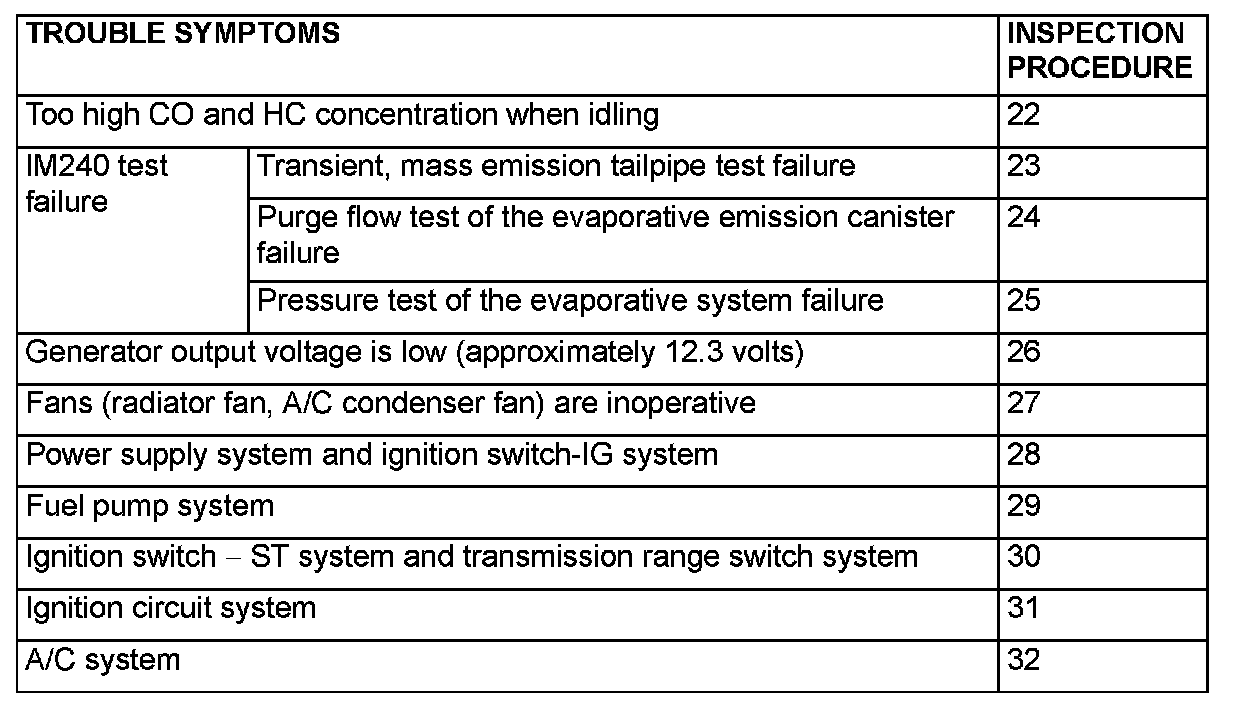

Inspection Chart For Trouble Symptoms Part 2:

CAUTION: During diagnosis, a DTC associated with other system may be set when the ignition switch is turned on with connector(s) disconnected. On completion, confirm all systems for DTCs. If DTCs are set, erase them all.

CAUTION: Disconnecting the battery cables or removing the combination meter will erase the learned value of the fuel gauge. To recover the learned value, input a vehicle speed (by actually driving the vehicle or inputting a simulated vehicle speed), and stop the vehicle. This will complete the learning process.

NOTE: Check that the PCM ground circuit is normal before checking for the cause of the problem.

NOTE: When the racing (3,000 to 5,000 r/min or more) continues on the vehicle stopped with no load during the specified time or more, the increase in the engine speed might be limited.

Inspection Chart For Trouble Symptoms Part 1:

Inspection Chart For Trouble Symptoms Part 2:

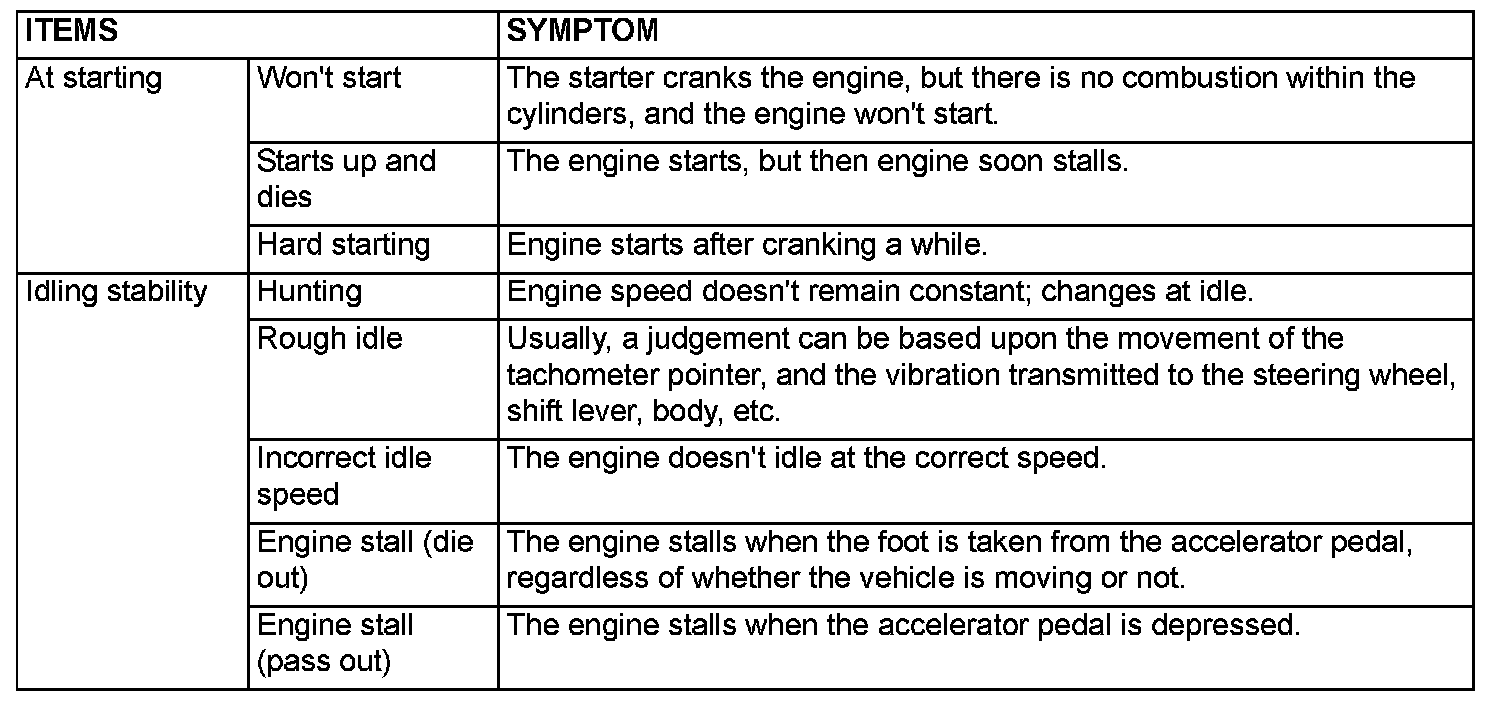

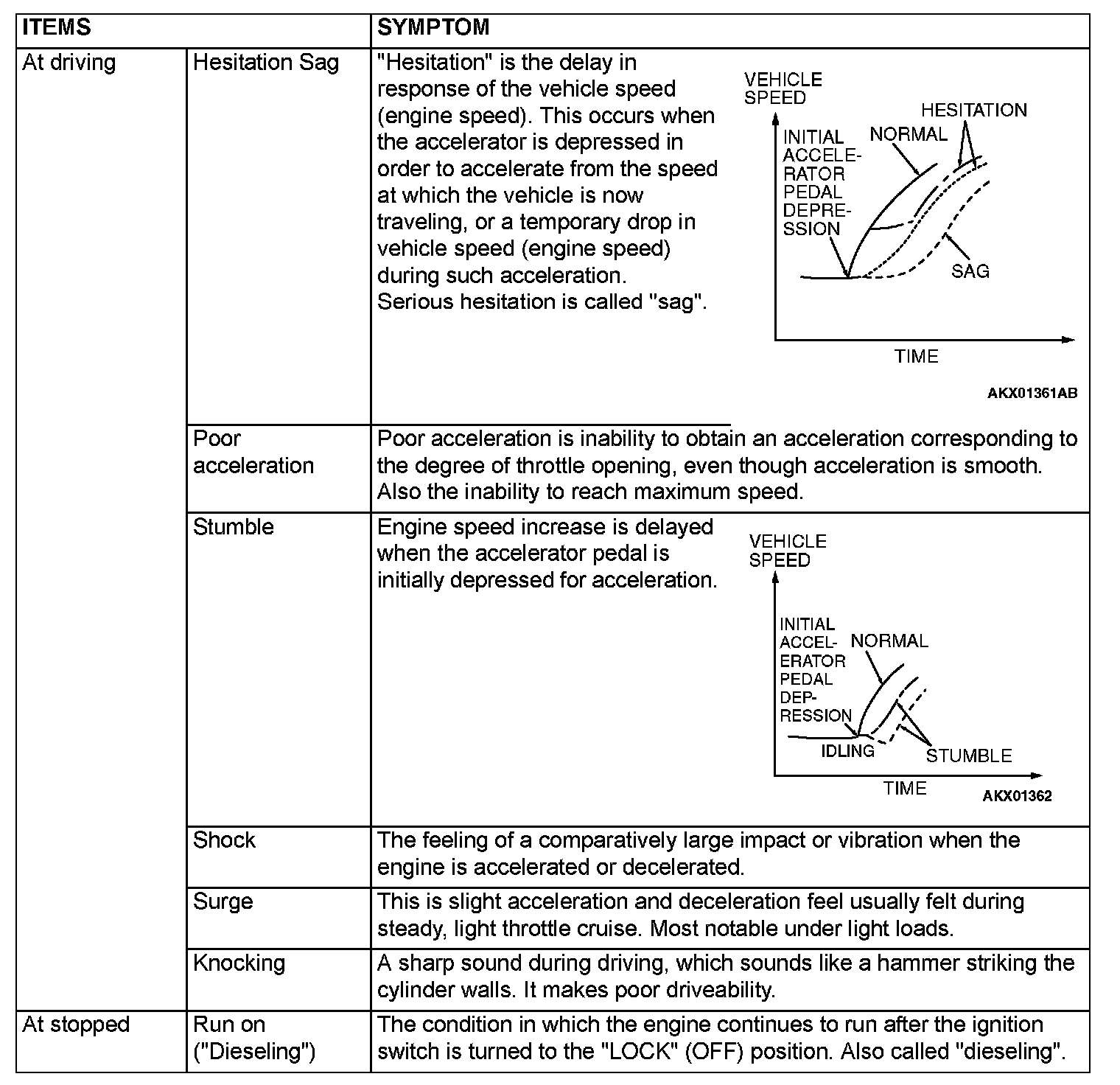

PROBLEM SYMPTOMS TABLE (FOR YOUR INFORMATION)
