Evaporative Emissions System: Service and Repair

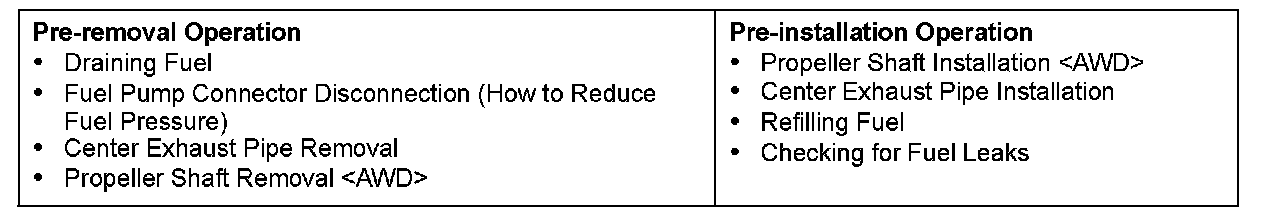

Pre-Removal And Post-Installation Operation:

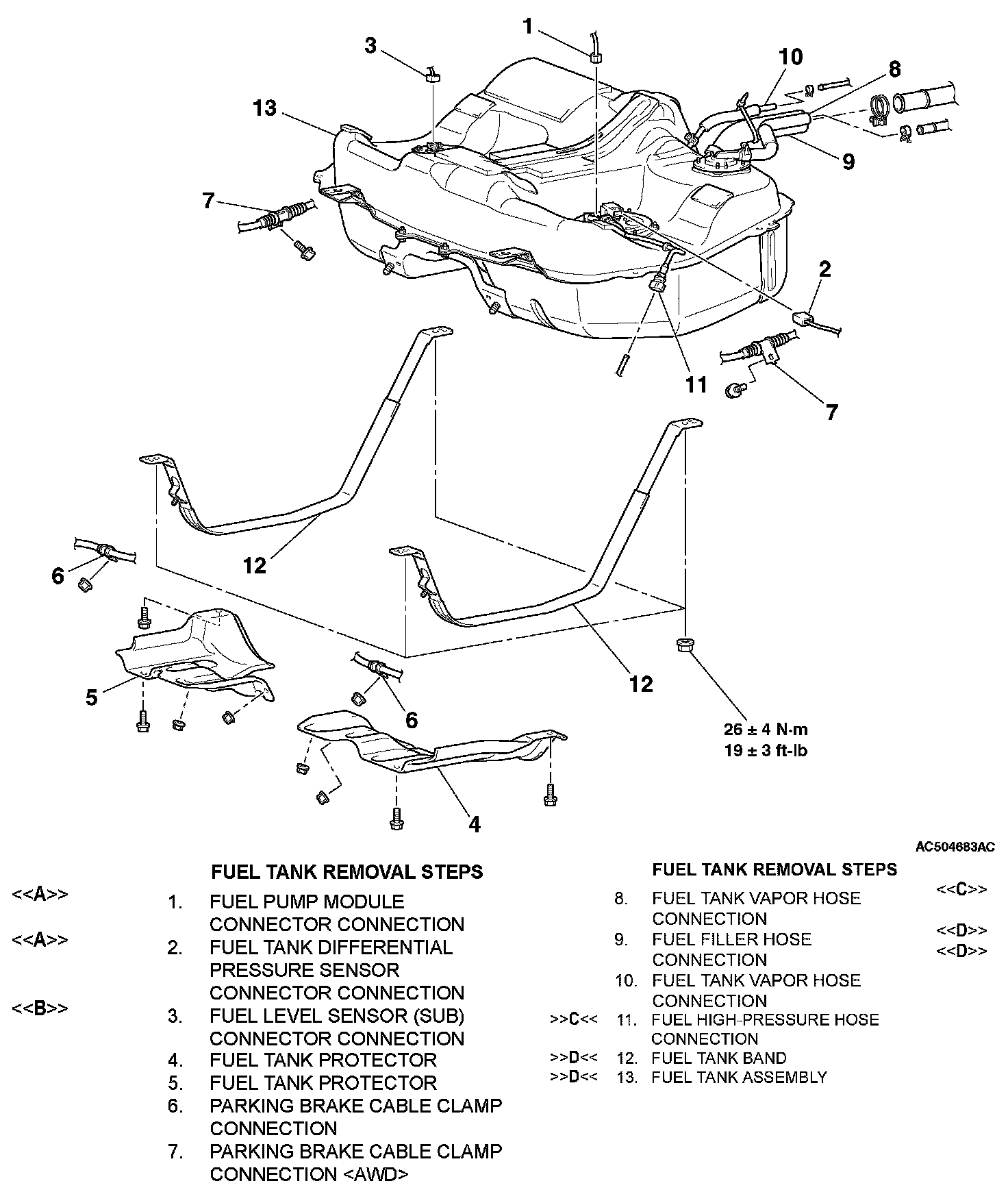

Removal Steps 1-13:

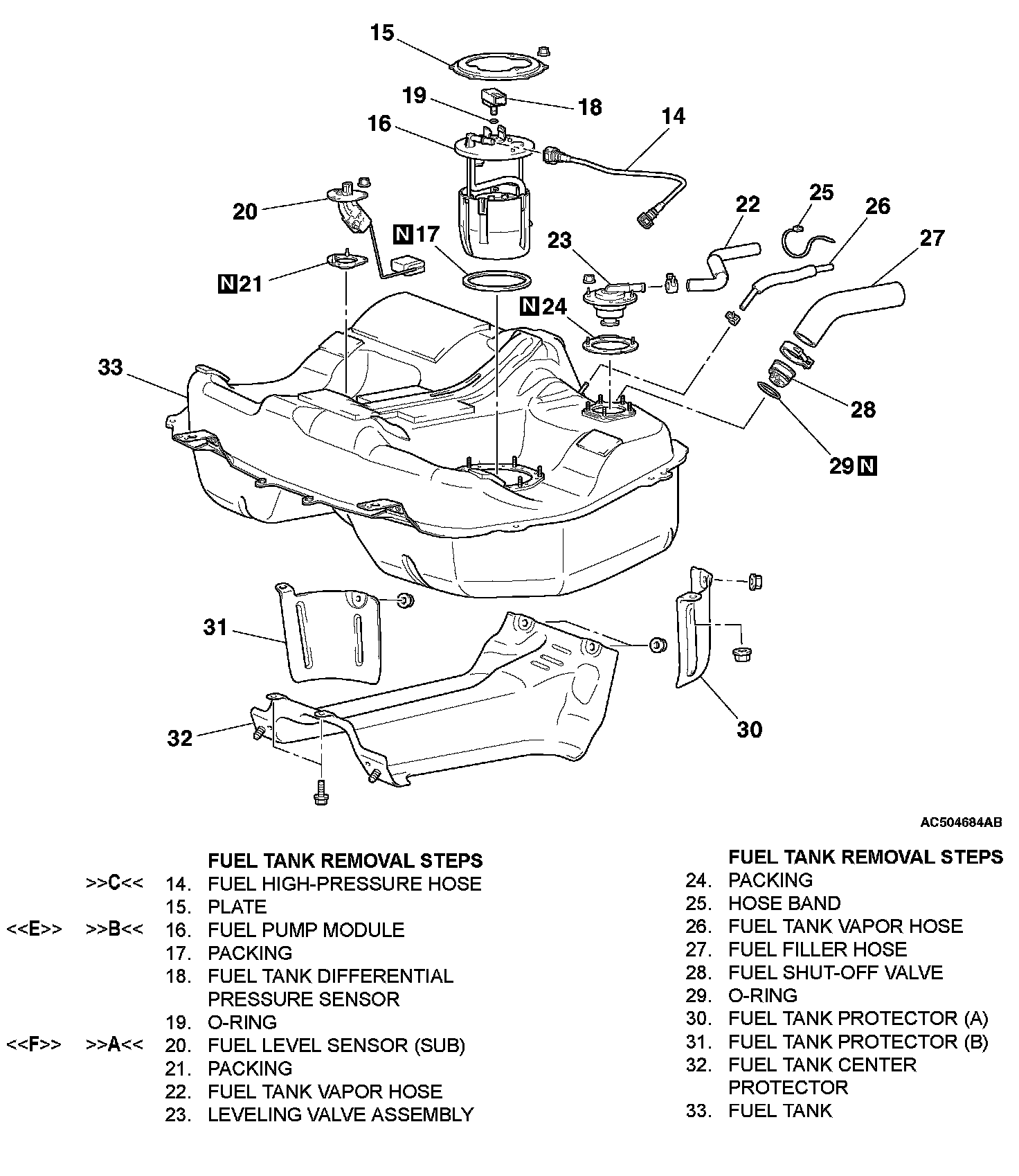

Removal Steps 14-33:

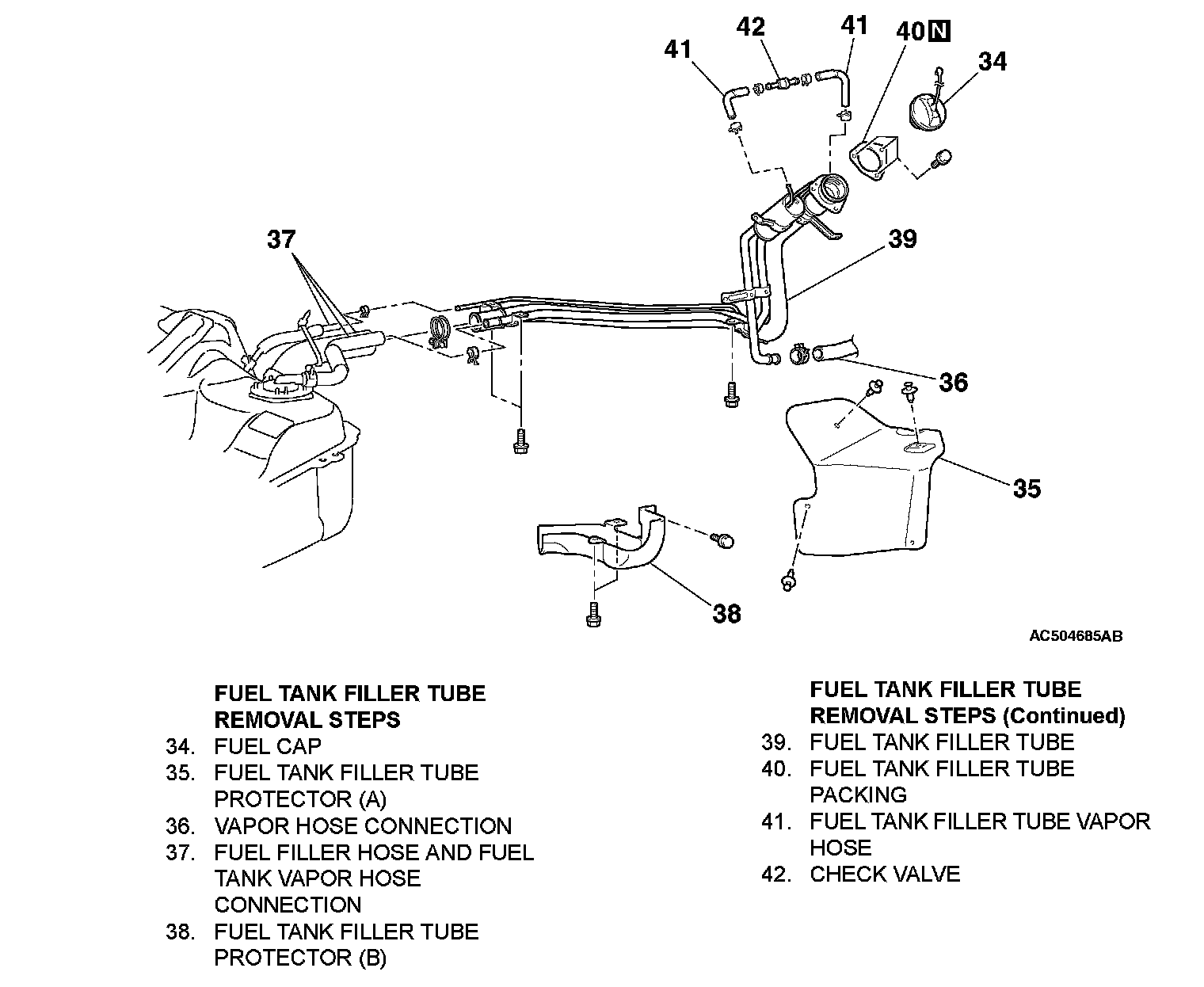

Removal Steps 34-42:

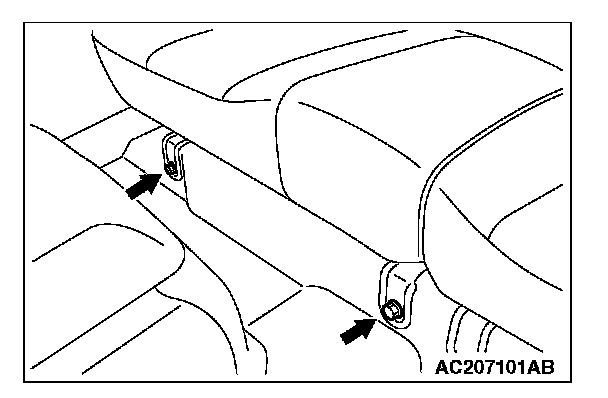

1. Remove the left rear seat cushion mounting bolts, and lift the left rear seat cushion and tie it to the head restraint.

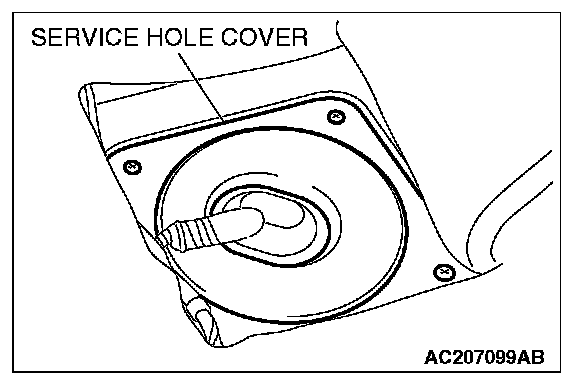

2. Cut the floor mat and then remove the service hole cover to gain access to the service hole.

NOTE: Push the floor mat to find the notches and cut the floor mat along them.

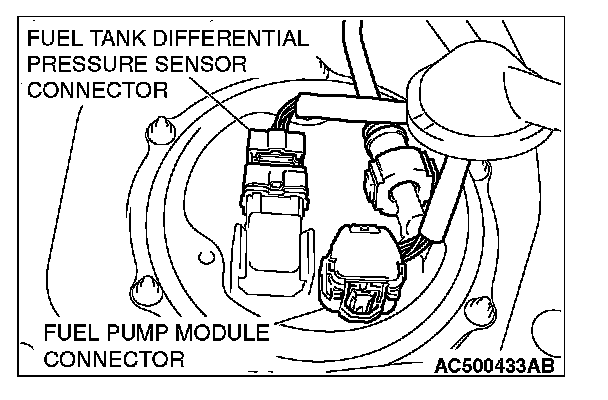

3. Disconnect the fuel pump module connector and the fuel tank differential pressure sensor connector connection.

<>

FUEL LEVEL SENSOR (SUB) CONNECTOR CONNECTION REMOVAL

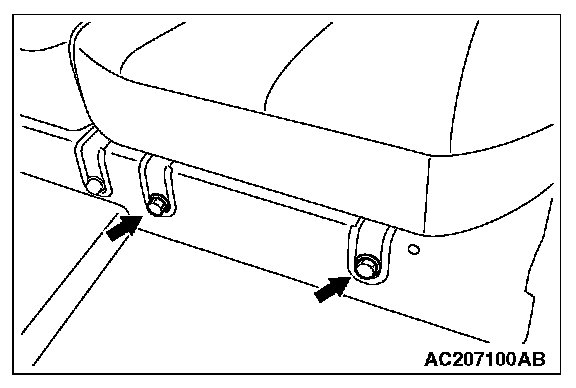

1. Remove the right rear seat cushion mounting bolts, and lift the right rear seat cushion and tie it to the head restraint.

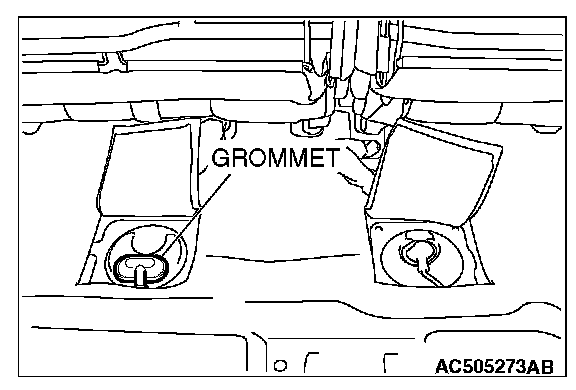

2. Remove the grommet.

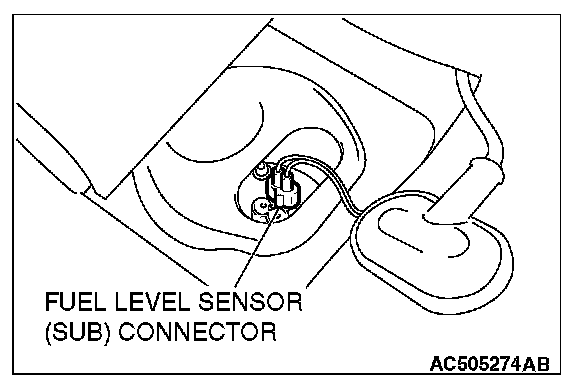

3. Disconnect the fuel level sensor (sub) connector.

<> FUEL HIGH-PRESSURE HOSE CONNECTION REMOVAL

CAUTION: As there will be some pressure remaining in the fuel pipe line, cover it with a shop towel to prevent fuel from spraying out.

<> FUEL TANK BAND/FUEL TANK ASSEMBLY REMOVAL

1. Support the fuel tank with a transaxle jack.

2. Remove the fuel tank band and fuel tank assembly as follows.
1. Remove the fuel tank band.
2. Lower the fuel tank assembly gradually to remove it.
3. Remove the fuel tank band and fuel tank assembly as follows.
1. Remove the front securing nut of the fuel tank band.
2. Tilt the fuel tank assembly forward and lower it gradually to remove it.
3. Remove the fuel tank band.

<> FUEL PUMP MODULE REMOVAL

CAUTION:
- When removing the fuel pump module from the fuel tank, be careful not to spill the fuel remaining in the fuel pump module.

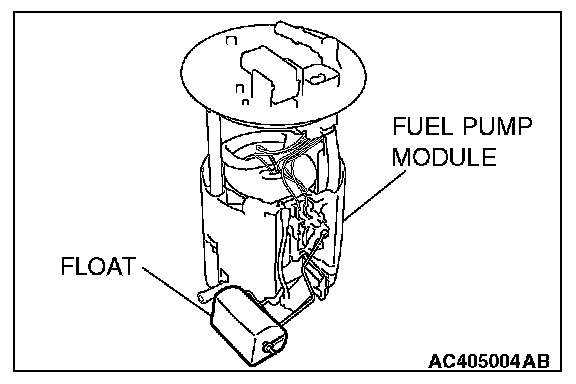

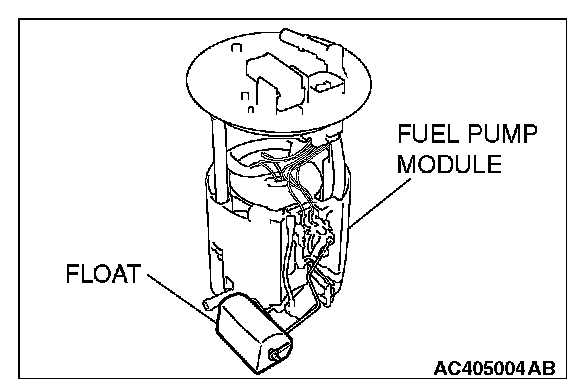

- When withdrawing the fuel pump module from the fuel tank, be careful not to damage the module unit and the float.

1. Drain the fuel remaining in the fuel pump module while removing the fuel pump module from the service hole.

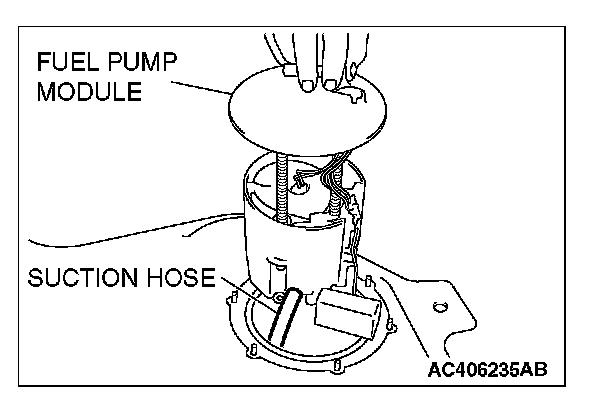

2. Disconnect the suction hose and remove the fuel pump module from the fuel tank.

<> FUEL LEVEL SENSOR (SUB) REMOVAL

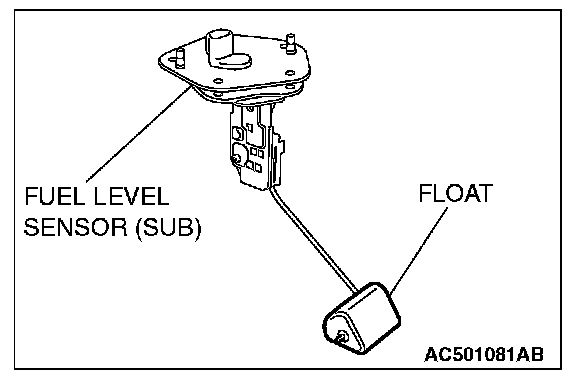

CAUTION: When withdrawing the fuel level sensor (sub) from the fuel tank, be careful not to damage the sensor unit and the float.

INSTALLATION SERVICE POINTS

>>A<< FUEL LEVEL SENSOR (SUB) INSTALLATION

CAUTION: When inserting the fuel level sensor (sub) into the fuel tank, be careful not to damage the sensor unit and the float.

>>B<< FUEL PUMP MODULE INSTALLATION

CAUTION:
- When installing the fuel pump module into the fuel tank, be careful not to damage the module unit and the float.
- Check the fuel lever sensor moving part of the fuel pump module works smoothly and then install the fuel pump module into the fuel tank.

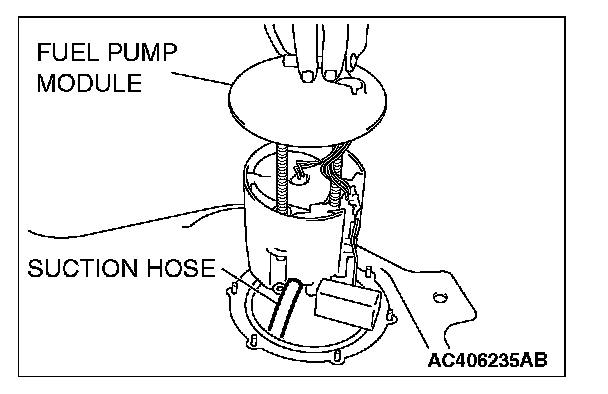

1. Connect the suction hose to the fuel pump module.
2. Install the fuel pump module into the fuel tank.

>>C<< FUEL HIGH-PRESSURE HOSE/FUEL HIGH-PRESSURE HOSE CONNECTION INSTALLATION

CAUTION: Connect the fuel high-pressure hose, and then pull it gently in the direction of removal to check that the hose is firmly connected.

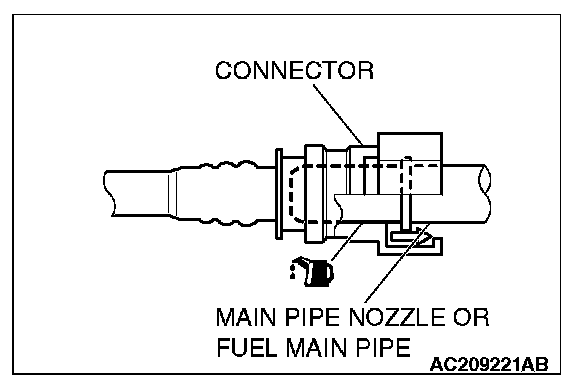

Apply clean engine oil to the tips of the main pipe nozzle and the fuel main pipe, and connect connector of the fuel high-pressure hose to them.

>>D<< FUEL TANK ASSEMBLY/FUEL TANK BAND INSTALLATION

1. Raise the fuel tank assembly carefully with a transaxle jack.
2. Ensure that the fuel tank assembly does not interfere with surrounding parts. Then install the fuel tank band and tighten the mounting nuts to the specified torque.

Tightening torque: 26 ± 4 N.m (19 ± 3 ft-lb)

3. Again, ensure that the fuel tank assembly does not interfere with surrounding components. If the fuel tank assembly interferes surrounding components, remove the fuel tank assembly and the tank band and reinstall them.
