Road Test

ROAD TEST
Check using the following procedures.

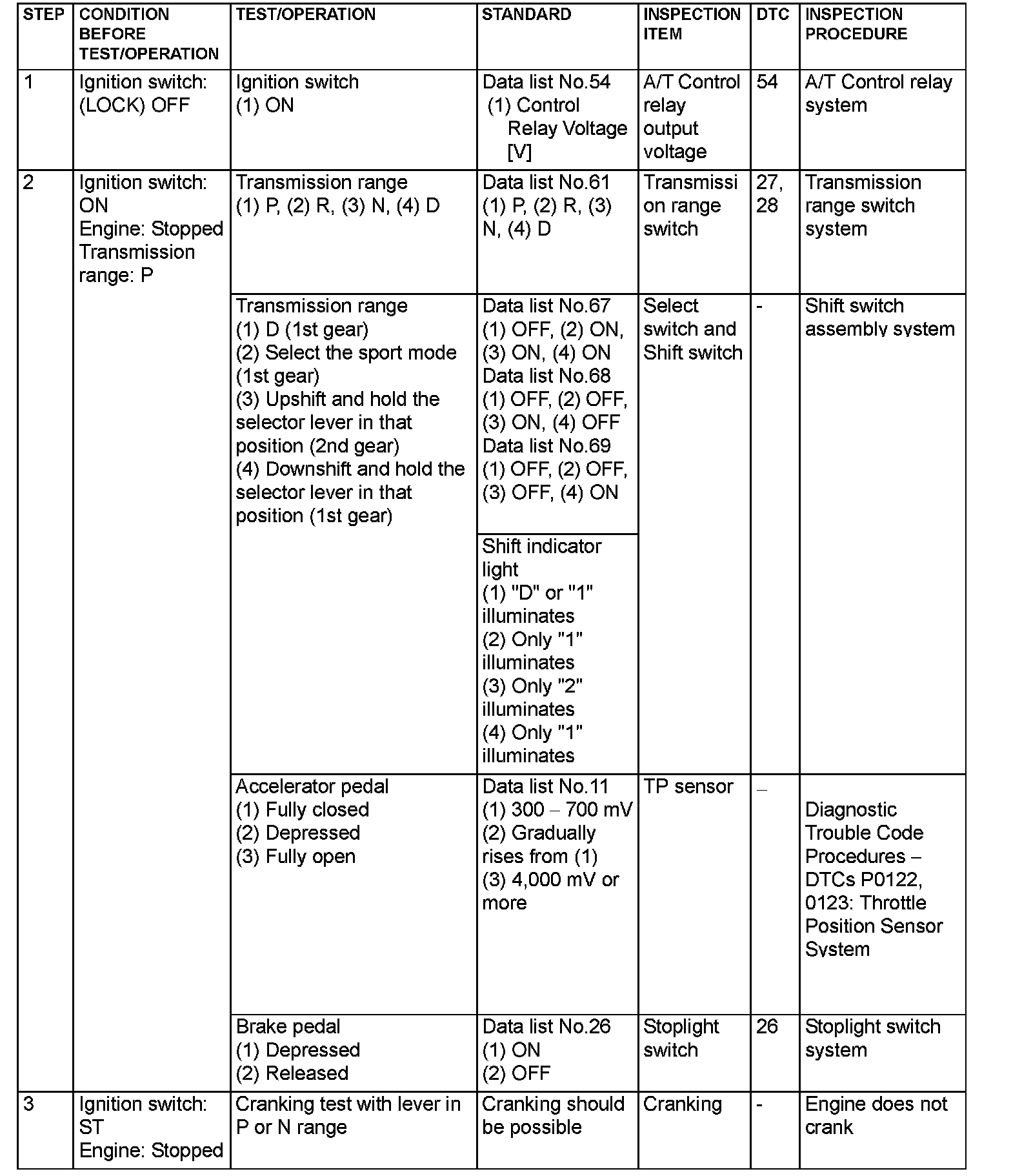

Step 1-Step 3:

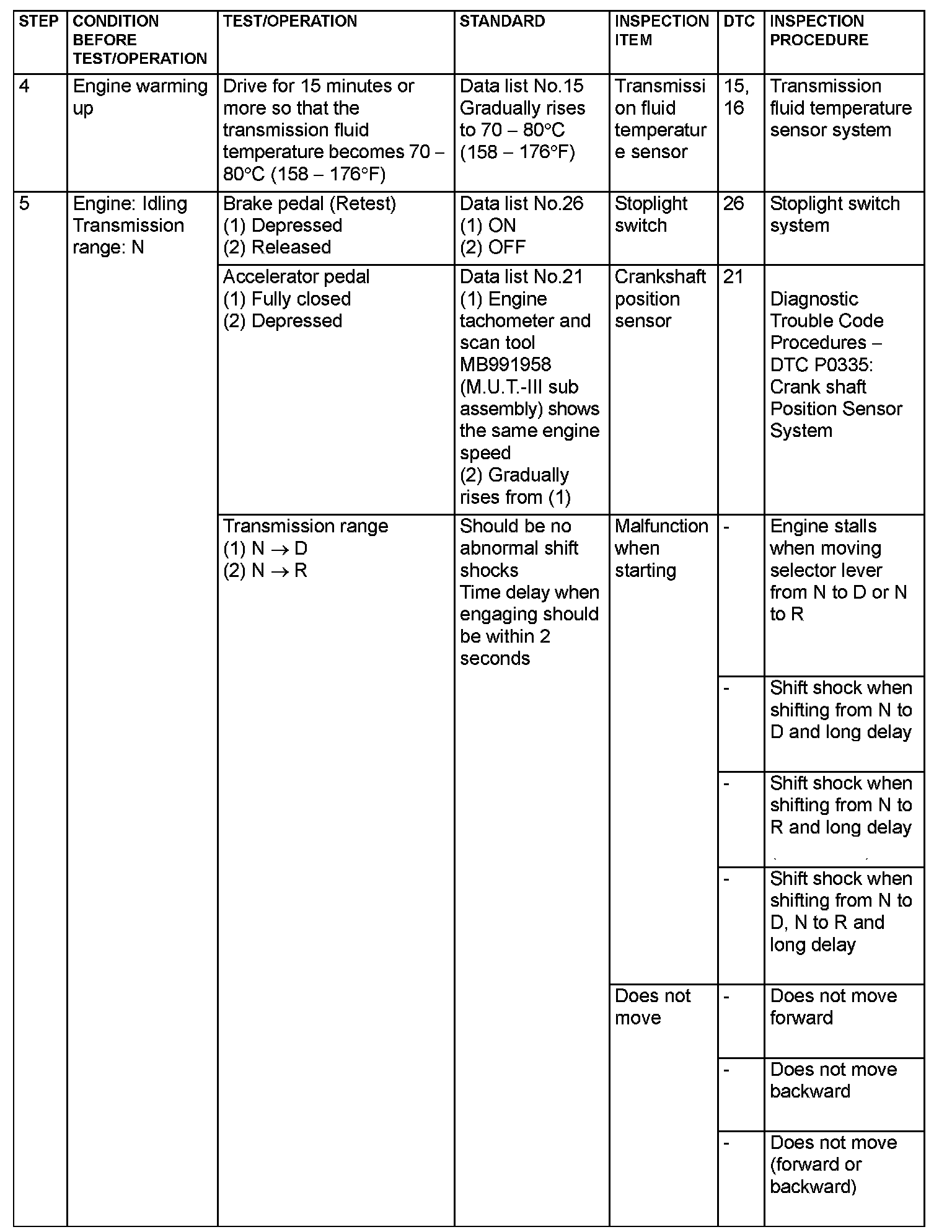

Step 4-Step 5:

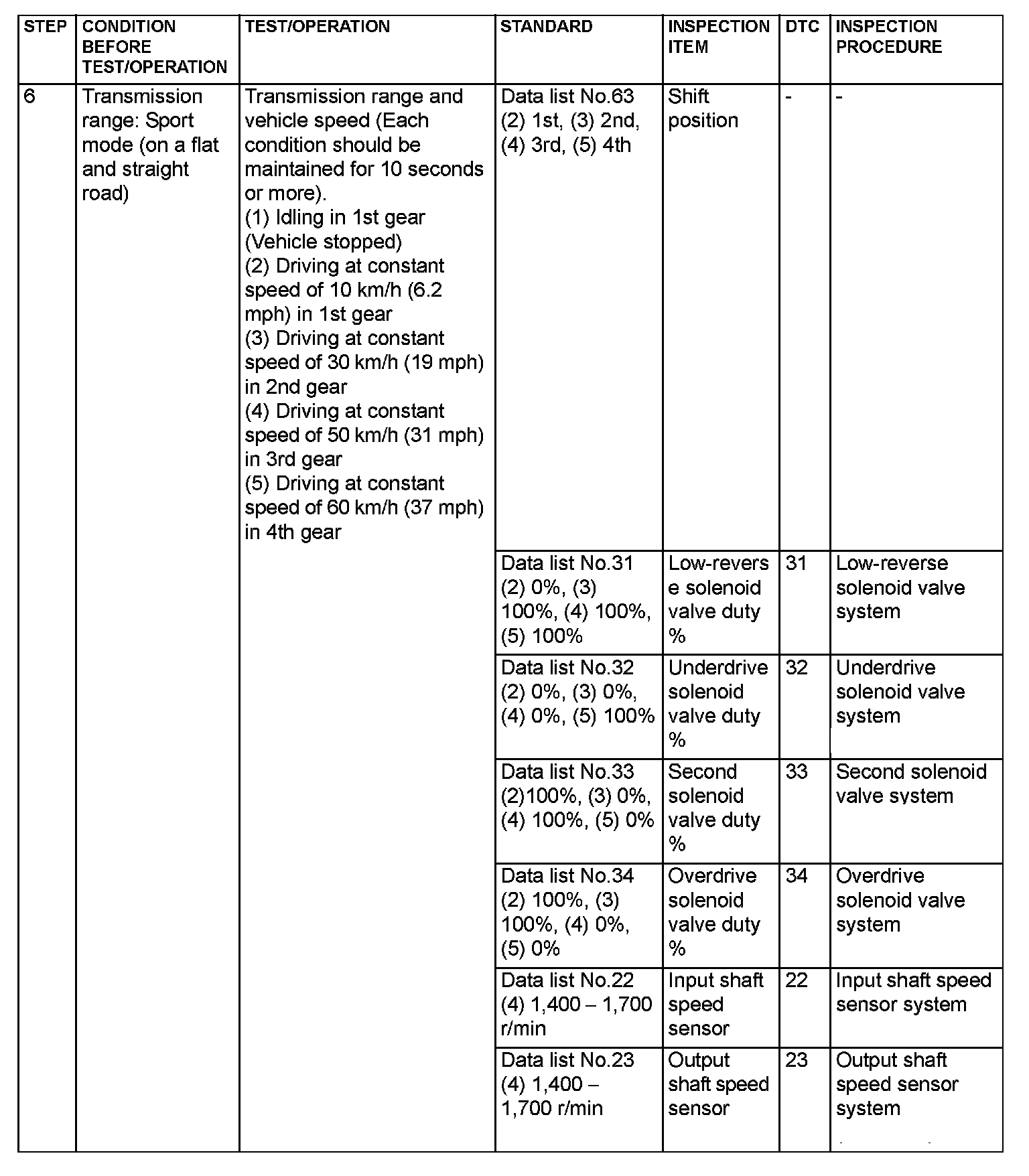

Step 6:

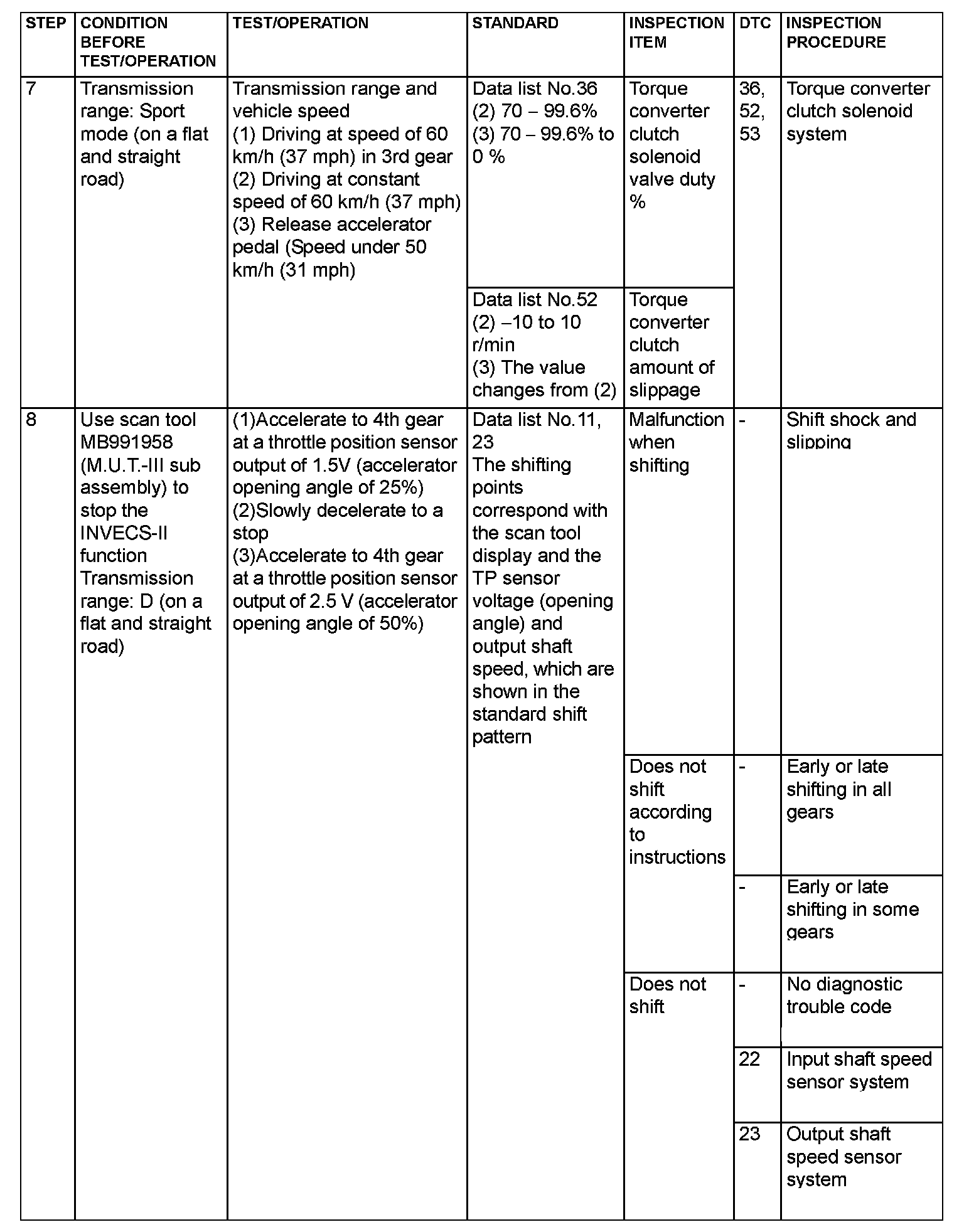

Step 7-Step 8:

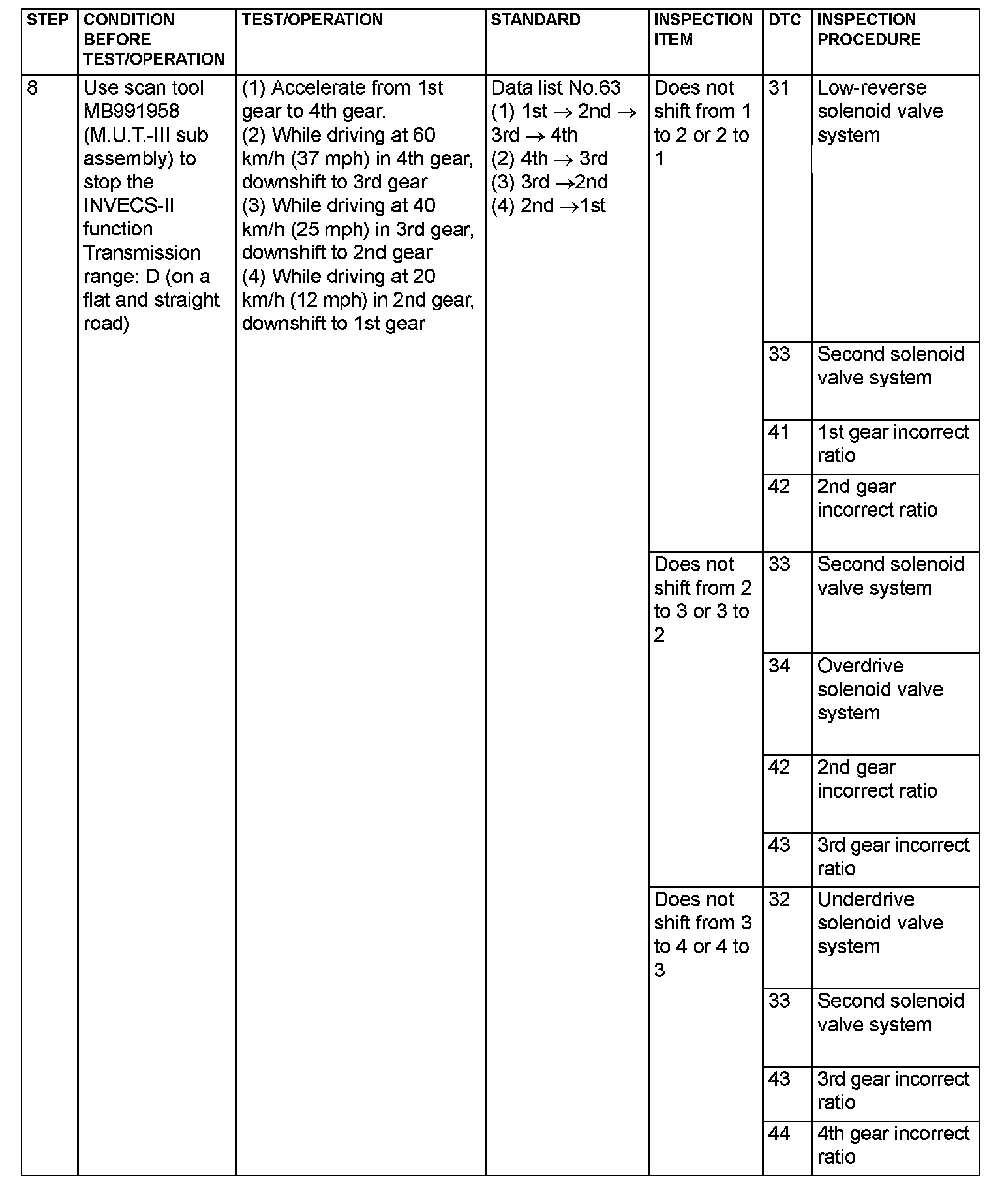

Step 8(continued):

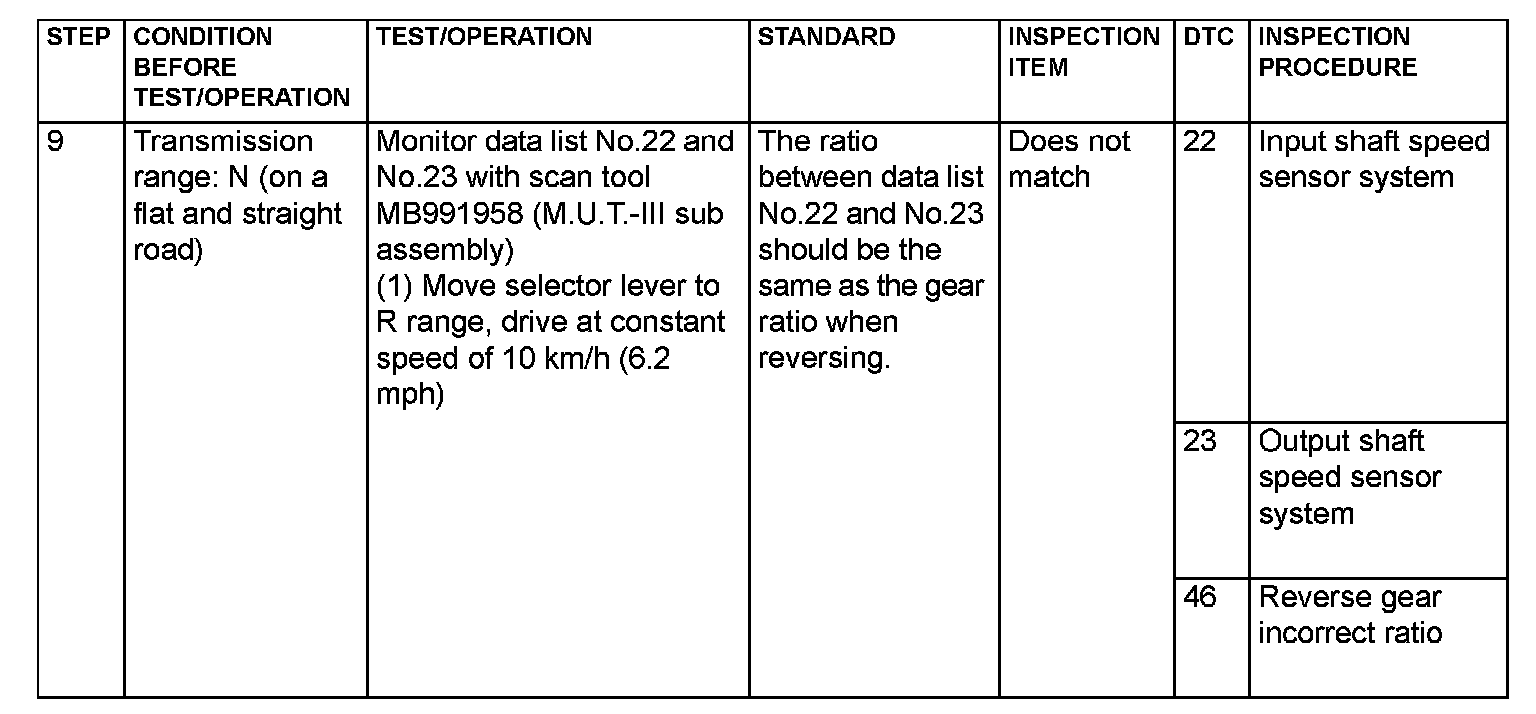

Step 9:
