Data List Reference Table

This document has been updated per TSB# 09-52b-001.

DATA LIST REFERENCE TABLE

Data List Reference Table:

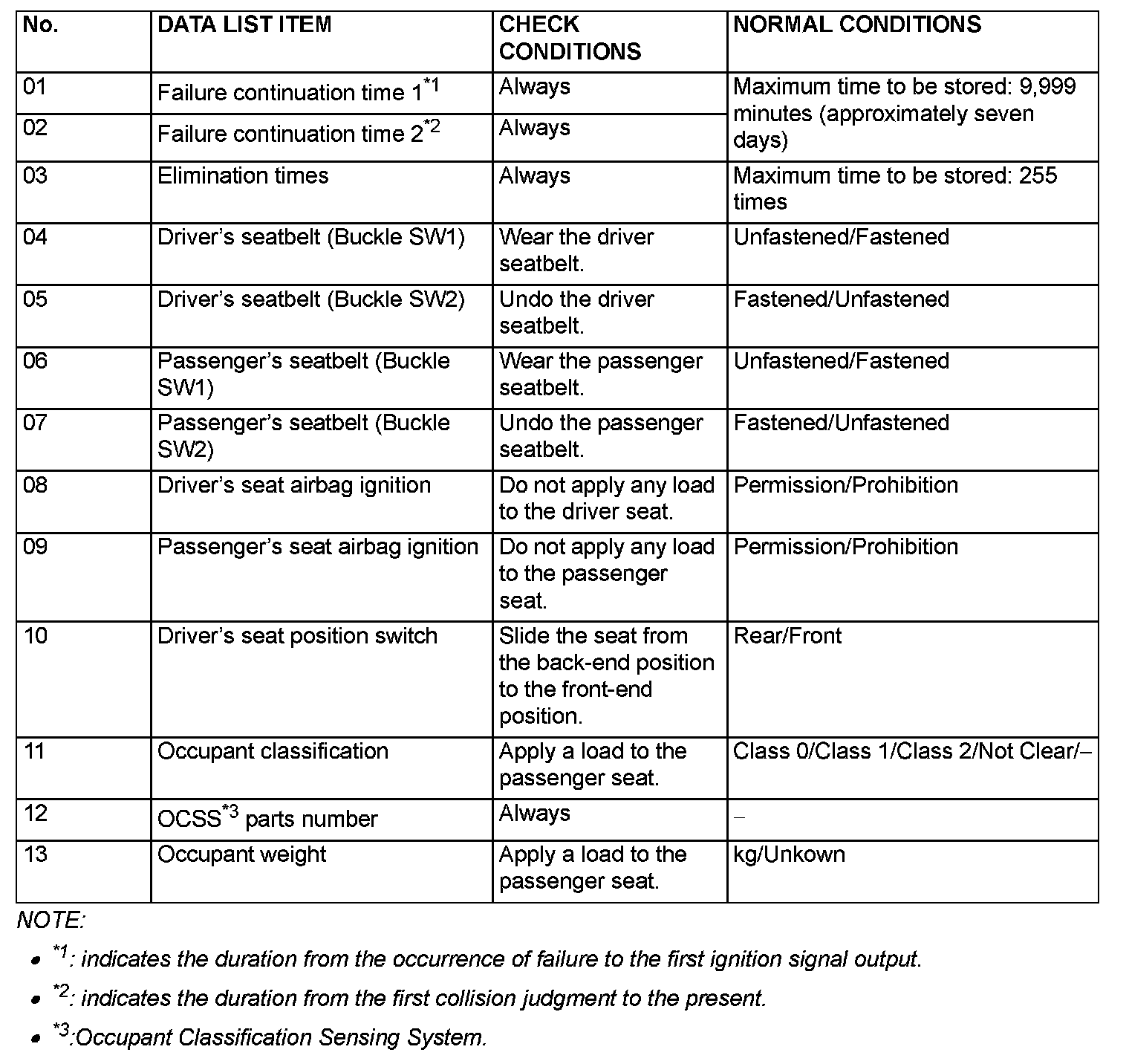

The given items can be read by the scan tool from the ABS-ECU input data. The following items can be read by the scan tool from the SRS-ECU input data.
