FUEL AND EMISSION PARTS
REMOVAL AND INSTALLATION

INSTALLATION SERVICE POINTS
]]A[[ EXHAUST GAS RECIRCULATION VALVE INSTALLATION

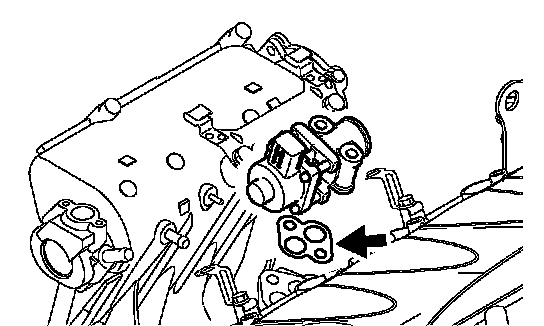

Install a new gasket in the position shown in the illustration.

]]B[[ INJECTORS INSTALLATION

CAUTION: Use care not to let engine oil enter the fuel rail.

1. Apply clean engine oil to the O-ring.





2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly. If not, remove the injector to check the O-ring for damage, and replace the O-ring if necessary. Then, reinstall the injector and check that it rotates smoothly.

]]C[[ THROTTLE BODY GASKET INSTALLATION

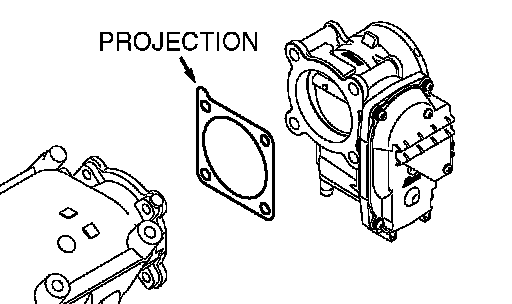

Install a new gasket so that the projection is positioned as shown in the illustration.
