Removal and Installation

REAR AXLE HUB ASSEMBLY
REMOVAL AND INSTALLATION

CAUTION:
^ For vehicles with ABS, be careful not to strike the pole piece at the tip of the rear wheel speed sensor with tools during servicing work.
^ The rear hub assembly should not be dismantled.

REMOVAL SERVICE POINT
[[A]] CALIPER ASSEMBLY REMOVAL
Secure the removed caliper assembly with wire, etc.

[[B]] BRAKE DISC REMOVAL





If the brake disc is seized, install M8 x 1.25 bolts as shown, and remove the disc by tightening the bolts evenly and gradually.

[[C]] REAR HUB ASSEMBLY REMOVAL





Insert a flat-tipped screwdriver into the mounting holes of knuckle hub to prevent the rear brake shoe and backing plate from falling down after the rear hub assembly has been removed from the knuckle.

INSPECTION

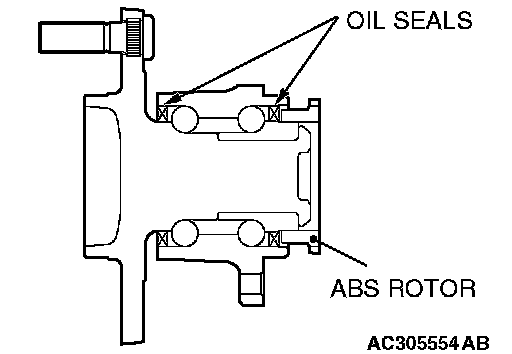

^ Check the ABS rotor for chipped teeth.
