Wireless Control Module

DTC B2416: ECU internal error

DTC SET CONDITION
WCM sets DTC B2416 when it determines an abnormal status within itself.

TECHNICAL DESCRIPTION (COMMENT)
WCM determines that the abnormality is present, if the data abnormality is found when the ignition switch is turned ON and then EEPROM is written.

TROUBLESHOOTING HINTS
- Malfunction of WCM.

DIAGNOSIS

Required Special Tools:
MB991958: Scan Tool (M.U.T.-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.)
MB991827: M.U.T.-III USB Cable
MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Recheck for diagnostic trouble code.
Check again if the DTC is set to the WCM.






CAUTION: To prevent damage to scan tool (MB991958), always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool (MB991958).

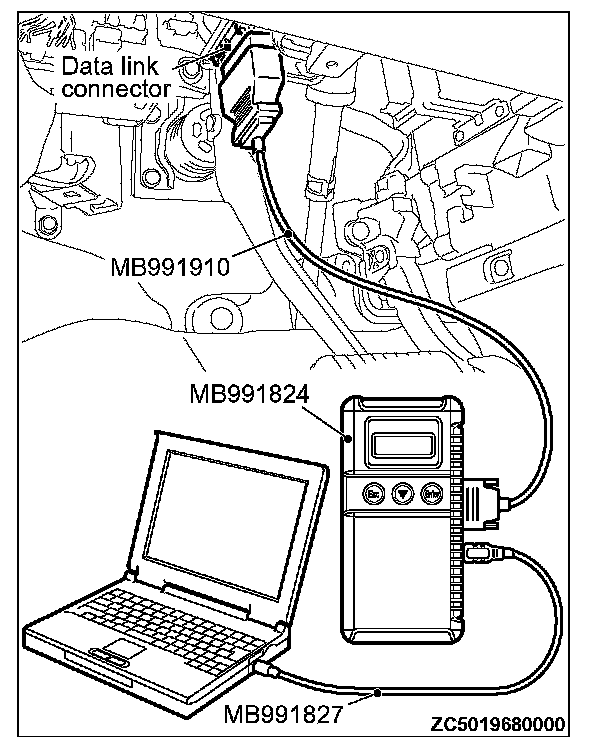

1. Connect scan tool MB991958 to the data link connector.
2. Erase the DTC.
3. Turn the ignition switch from "LOCK" (OFF) position to "ON" position.
4. Check if DTC is set.
5. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the DTC set?

YES : Replace WCM and register the ID codes.

NO : The trouble can be an intermittent malfunction (Refer to General (Body and Chassis) - How to use Troubleshooting/inspection Service Points - How to Cope with Intermittent Malfunction).
