Home >> Mitsubishi >> 2007 >> Raider 2WD V6-3.7L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Ambient Temperature Sensor / Switch HVAC

Ambient Temperature Sensor / Switch HVAC

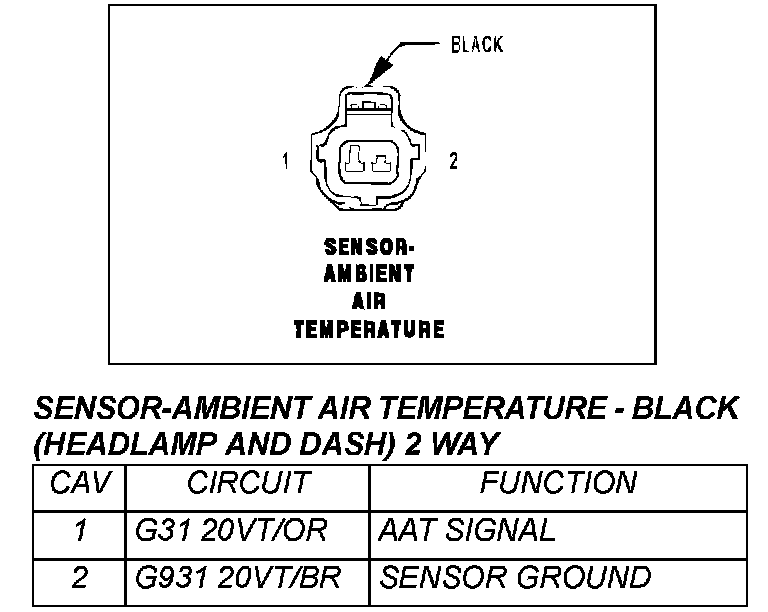

Sensor-Ambient Air Temperature - Black (Headlamp And Dash) 2 Way:
