Control Assembly, HVAC
Control Assembly, HVAC

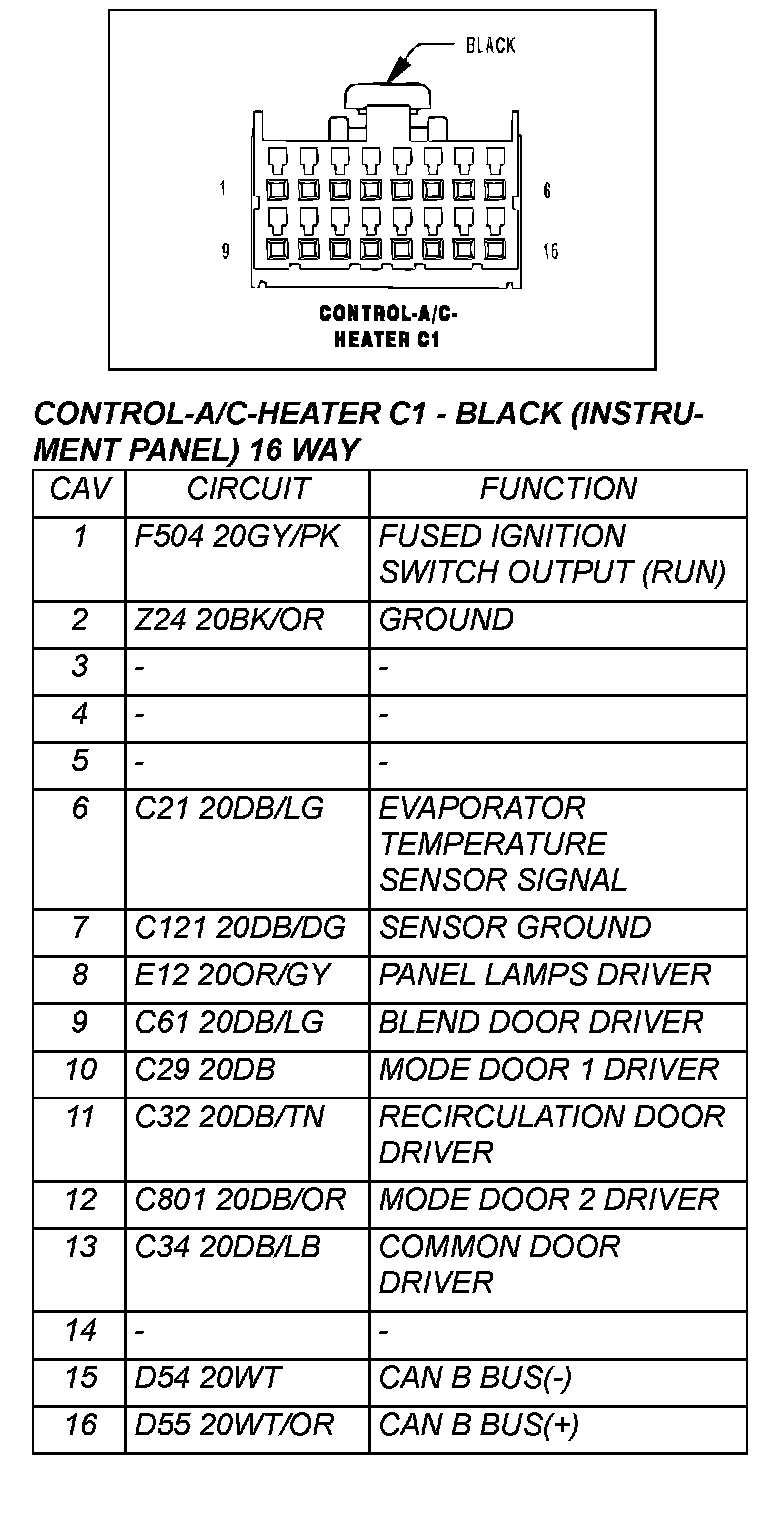

Control-A/C-Heater C1 - Black (Instrument Panel) 16 Way:

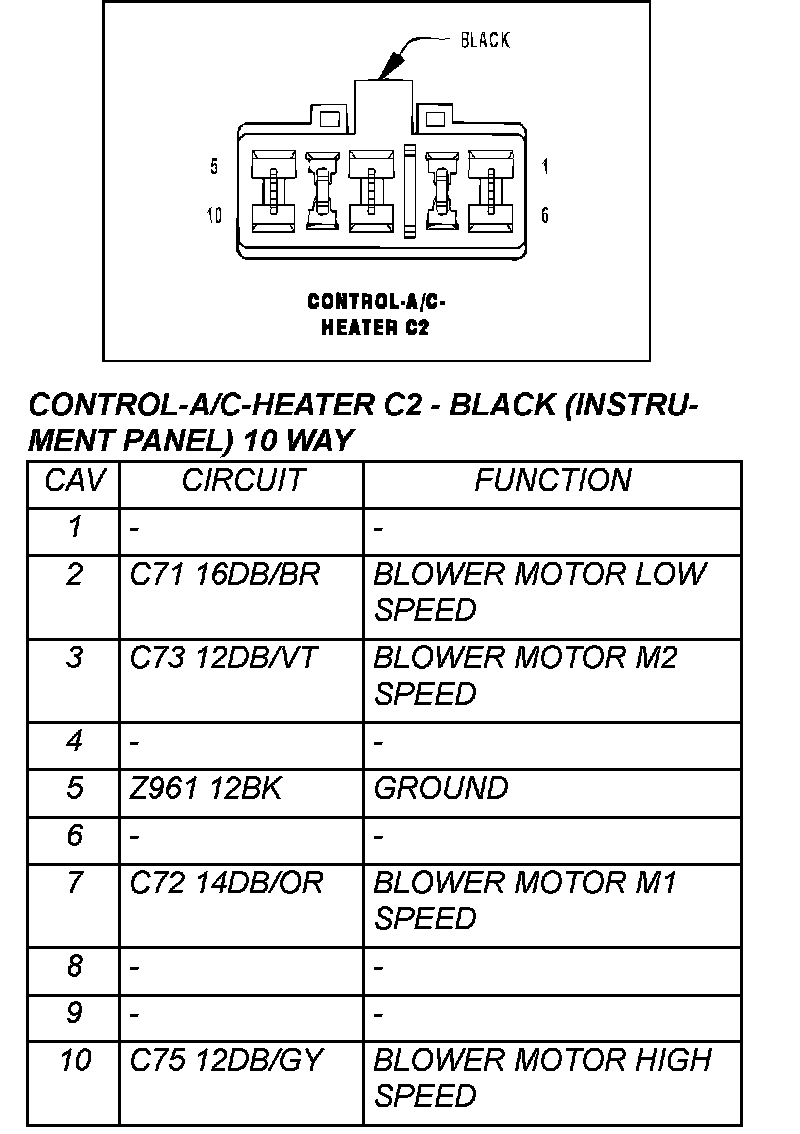

Control-A/C-Heater C2 - Black (Instrument Panel) 10 Way:
