Cruise Control Switch

Switch-Speed Control - Left - Black (Clockspring) 3 Way:

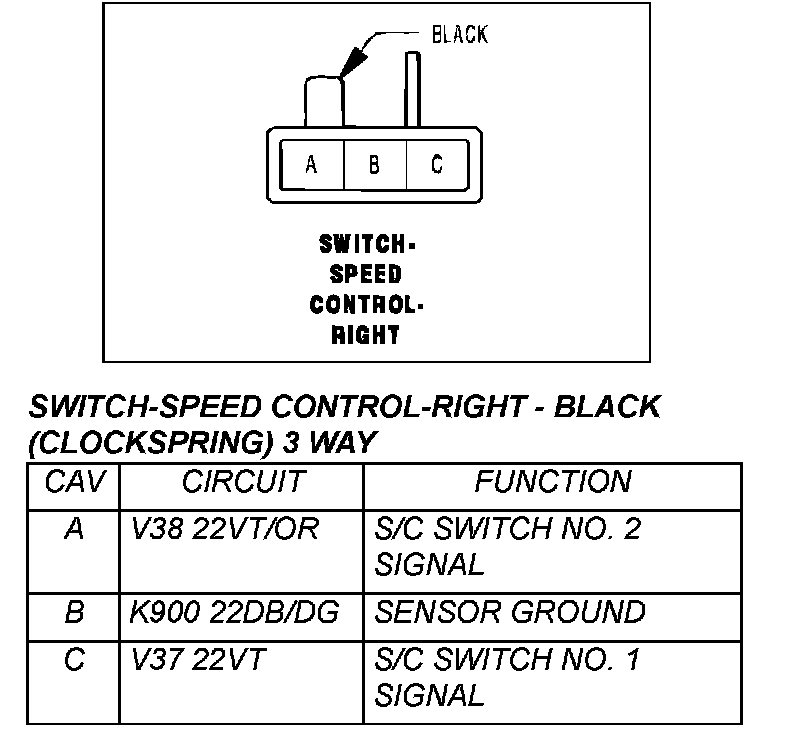

Switch-Speed Control - Right - Black (Clockspring) 3 Way:
