Home >> Mitsubishi >> 2007 >> Raider 2WD V6-3.7L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Dimmer Switch

Dimmer Switch

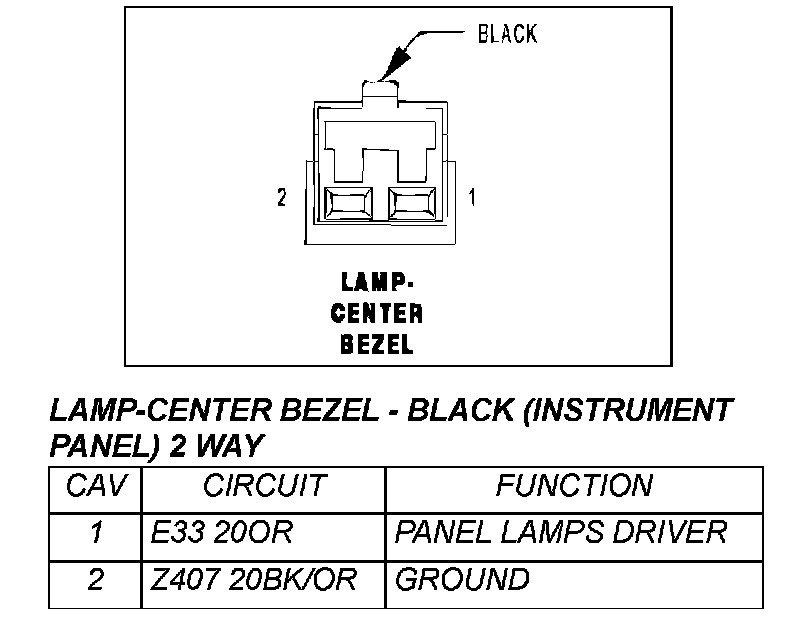

Lamp-Center Bezel - Black (Instrument Panel) 2 Way:
