Home >> Mitsubishi >> 2007 >> Raider 2WD V6-3.7L SOHC >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine - Coolant Temperature Sensor/Switch

Engine - Coolant Temperature Sensor/Switch

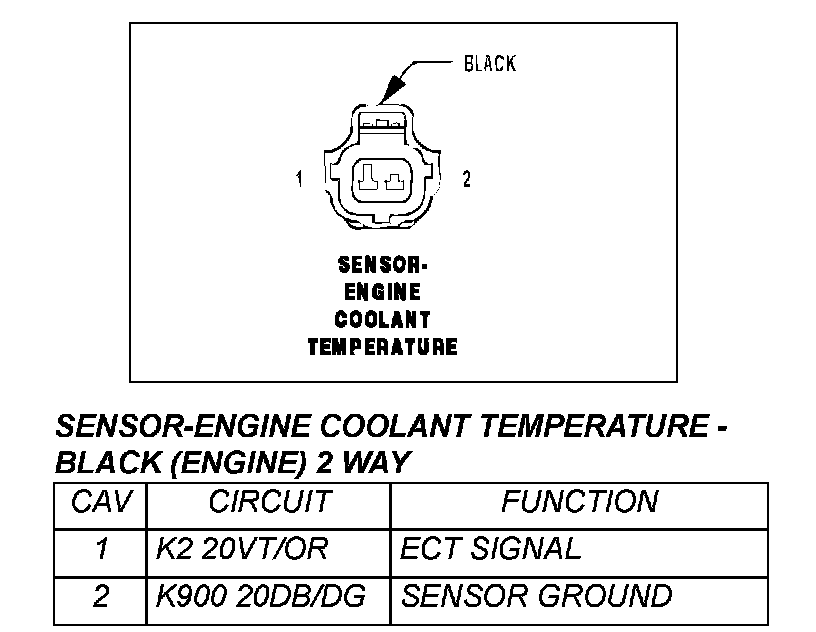

Sensor-Engine Coolant Temperature - Black (Engine) 2 Way:
