Fluid Pressure Sensor/Switch, A/T

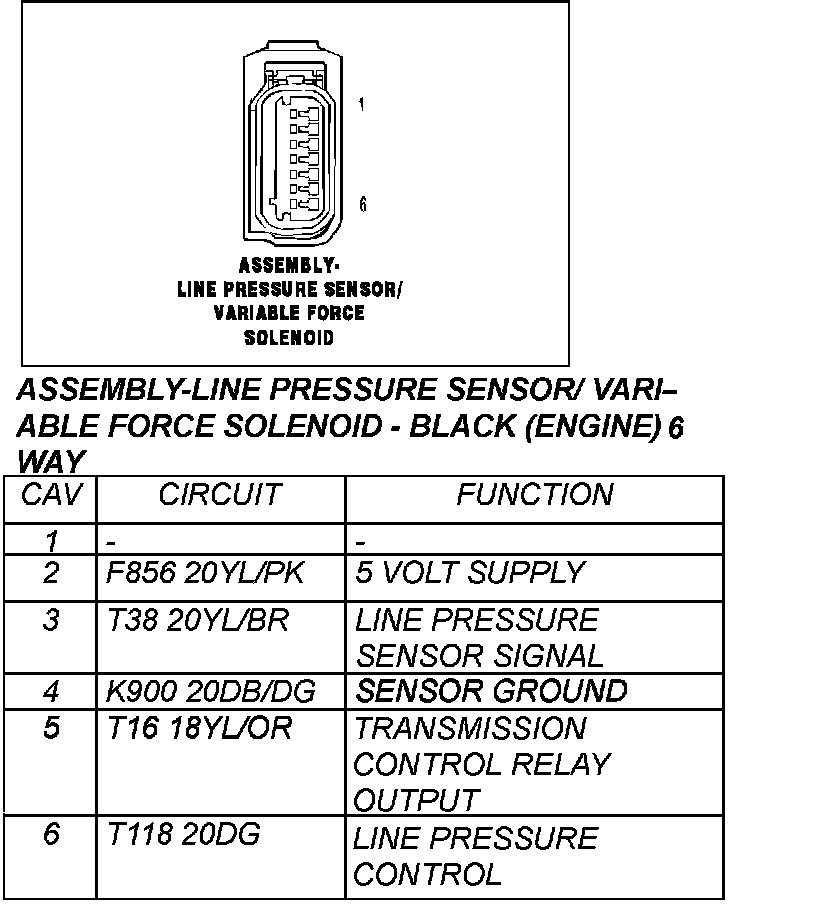

Assembly-Line Pressure Sensor/Variable Force Solenoid - Black (Engine) 6 Way:



Sensor-Line Pressure (RFE) - Black (Engine) 4 Way:
