Impact Sensor

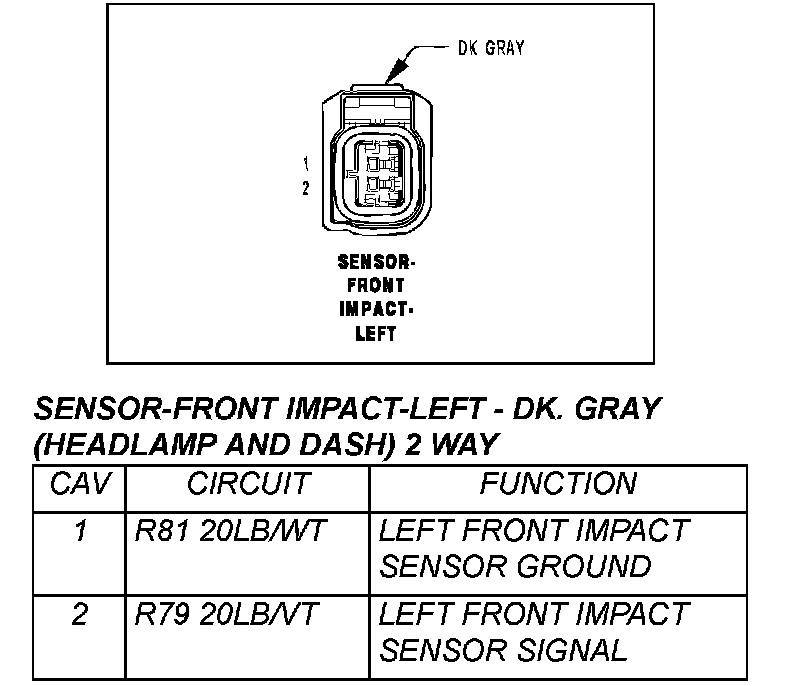

Sensor-Front Impact - Left - Dk. Gray (Headlamp And Dash) 2 Way:

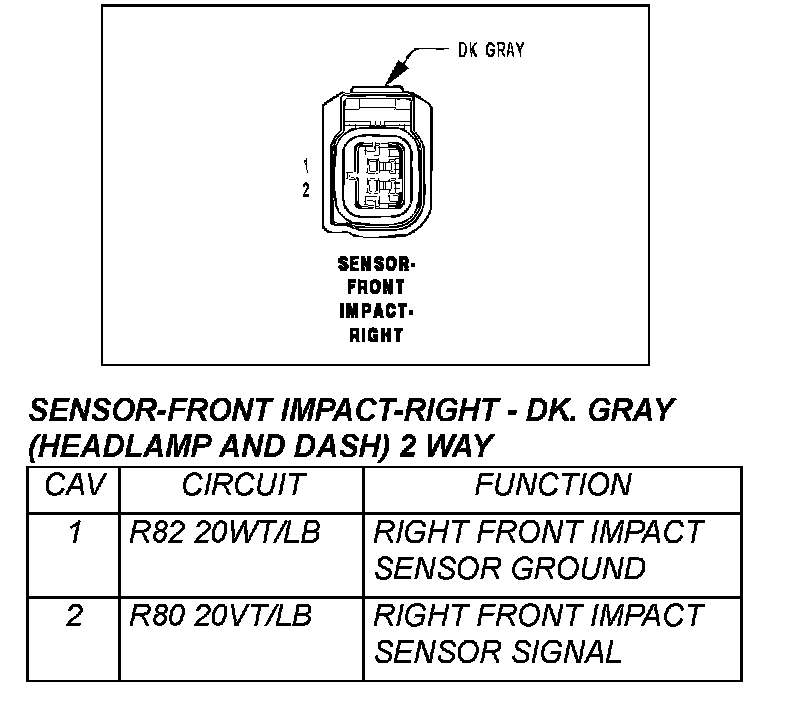

Sensor-Front Impact - Right - Dk. Gray (Headlamp And Dash) 2 Way:

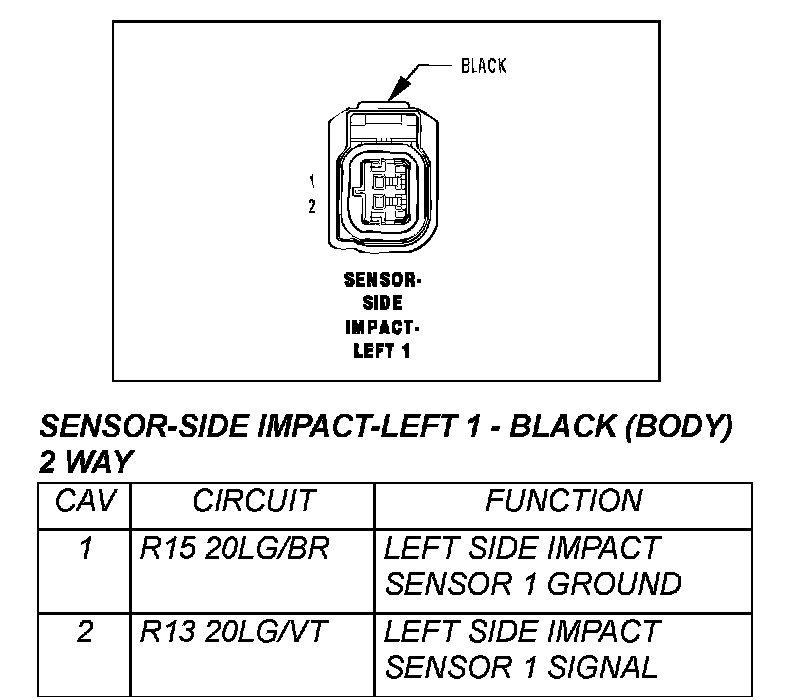

Sensor-Side Impact - Left 1 - Black (Body) 2 Way:

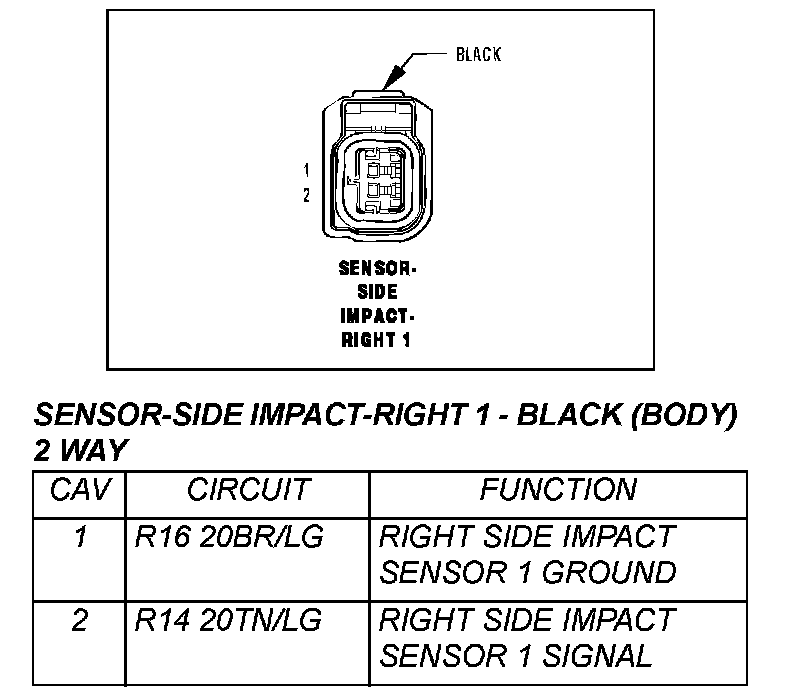

Sensor-Side Impact - Right 1 - Black (Body) 2 Way:
