Shift Interlock Switch
Shift Interlock Switch

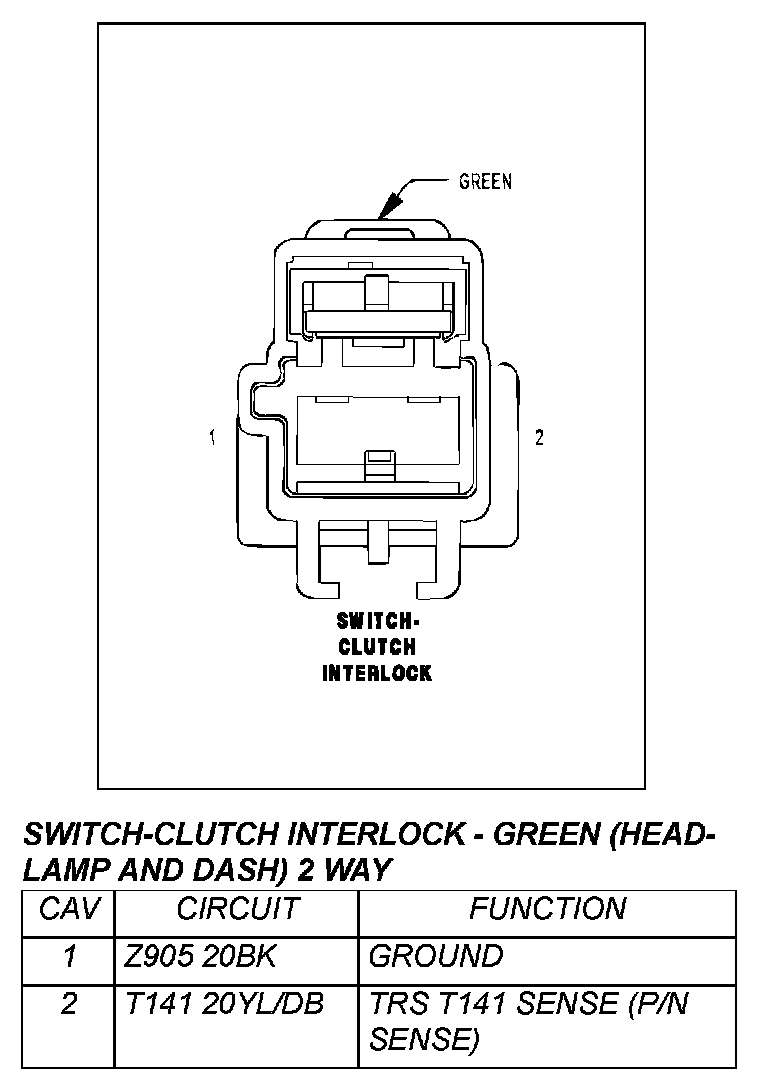

Switch-Clutch Interlock - Green (Headlamp And Dash) 2 Way:
