Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

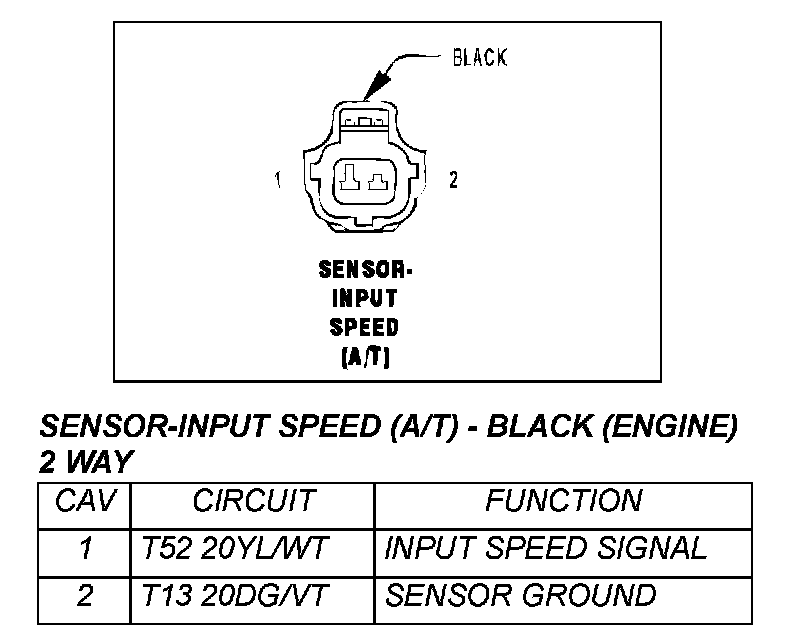

Sensor-Input Speed (A/T) - Black (Engine) 2 Way:

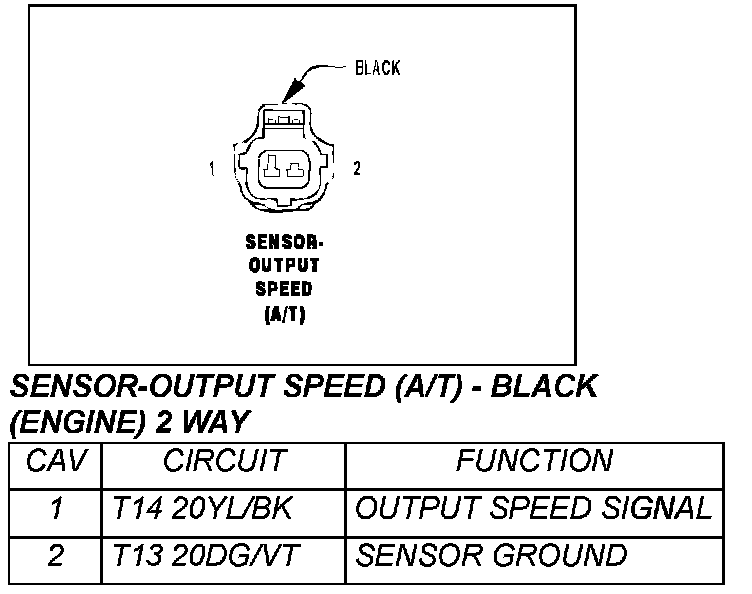

Sensor-Output Speed (A/T) - Black (Engine) 2 Way:
