Fuse Block: Locations

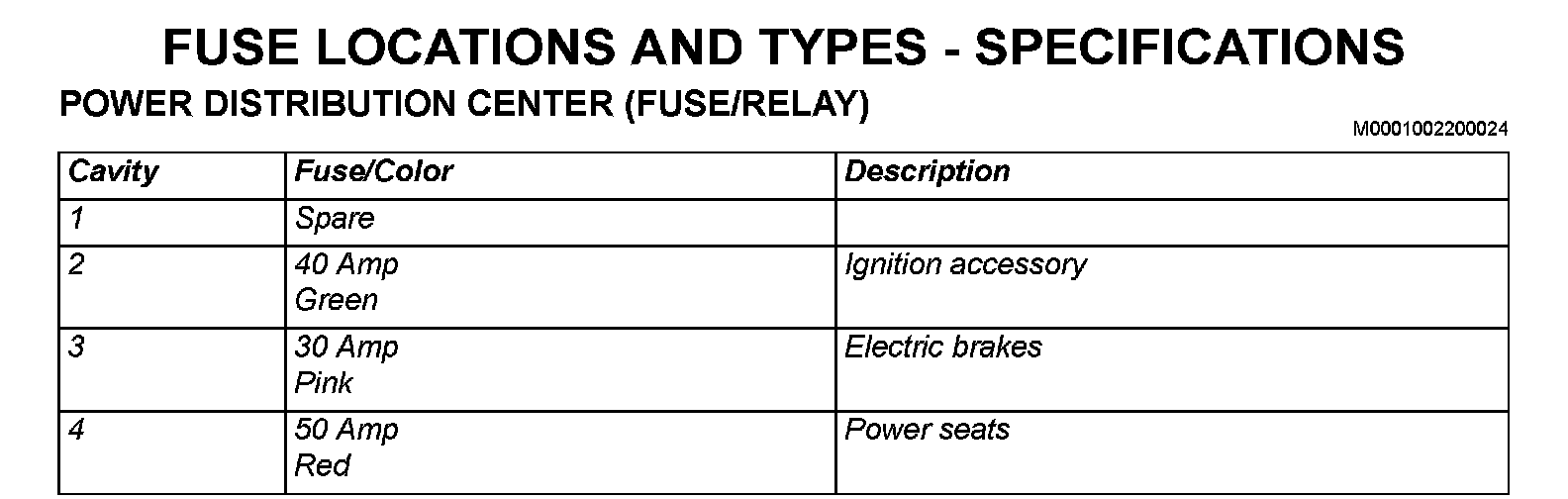

FUSE LOCATIONS AND TYPES - SPECIFICATIONSPOWER DISTRIBUTION CENTER (FUSE/RELAY)
Cavity Fuse/Color (Description)
1 Spare
2 40 Amp Green (Ignition accessory)
3 30 Amp Pink (Electric brakes)
4 50 Amp Red (Power seats)

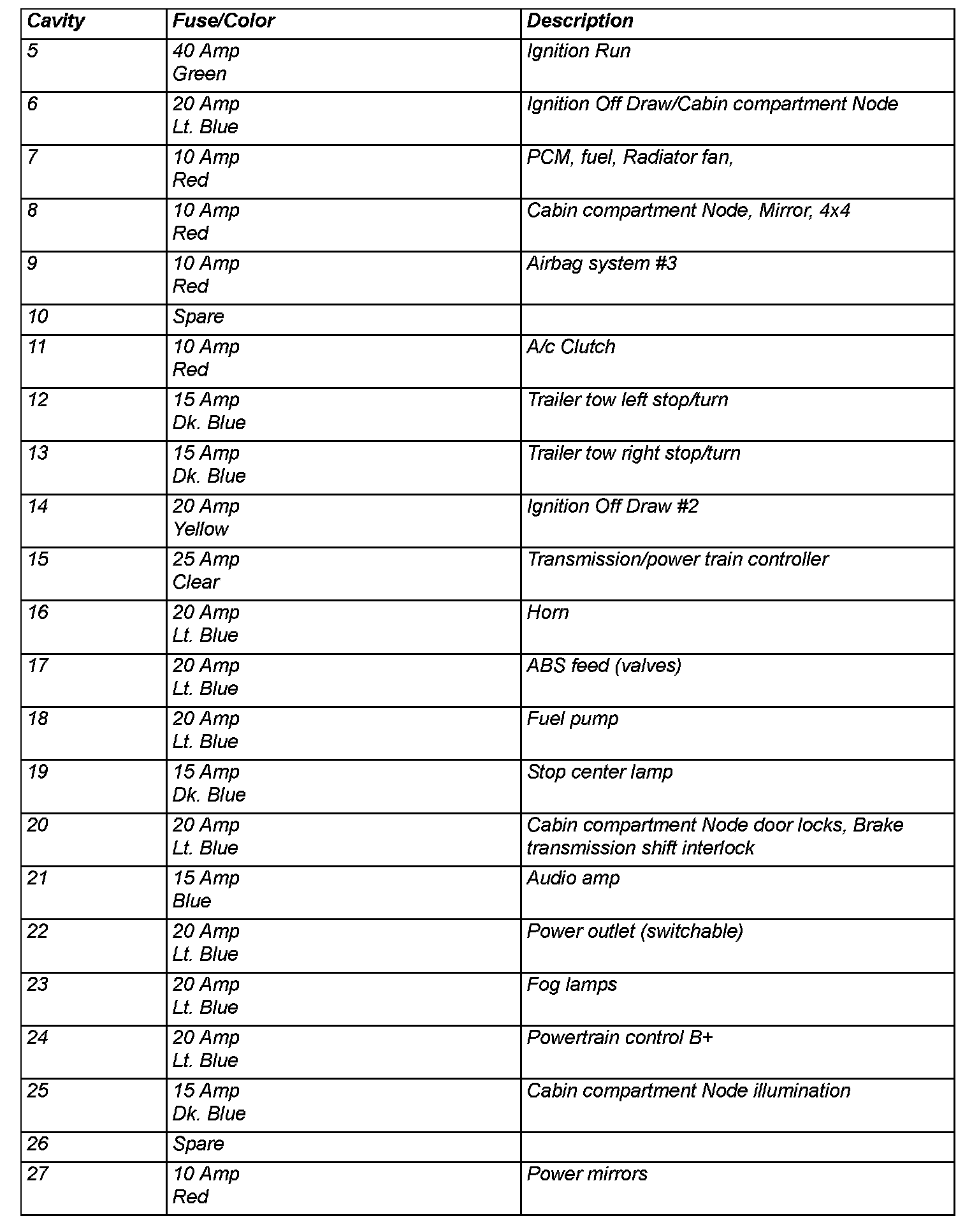

5 40 Amp Green (Ignition Run)
6 20 Amp Lt. Blue (Ignition Off Draw/Cabin compartment Node)
7 10 Amp Red (PCM, fuel, Radiator fan, )
8 10 Amp Red (Cabin compartment Node, Mirror, 4x4)
9 10 Amp Red (Airbag system #3)
10 Spare
11 10 Amp Red (A/c Clutch)
12 15 Amp Dk. Blue (Trailer tow left stop/turn)
13 15 Amp Dk. Blue (Trailer tow right stop/turn)
14 20 Amp Yellow (Ignition Off Draw #2)
15 25 Amp Clear (Transmission/power train controller)
16 20 Amp Lt. Blue (Horn)
17 20 Amp Lt. Blue (ABS feed (valves))
18 20 Amp Lt. Blue (Fuel pump)
19 15 Amp Dk. Blue (Stop center lamp)
20 20 Amp Lt. Blue (Cabin compartment Node door locks, Brake transmission shift interlock)
21 15 Amp Blue (Audio amp)
22 20 Amp Lt. Blue (Power outlet (switchable))
23 20 Amp Lt. Blue (Fog lamps)
24 20 Amp Lt. Blue (Powertrain control B+)
25 15 Amp Dk. Blue (Cabin compartment Node illumination)
26 Spare
27 10 Amp Red (Power mirrors )

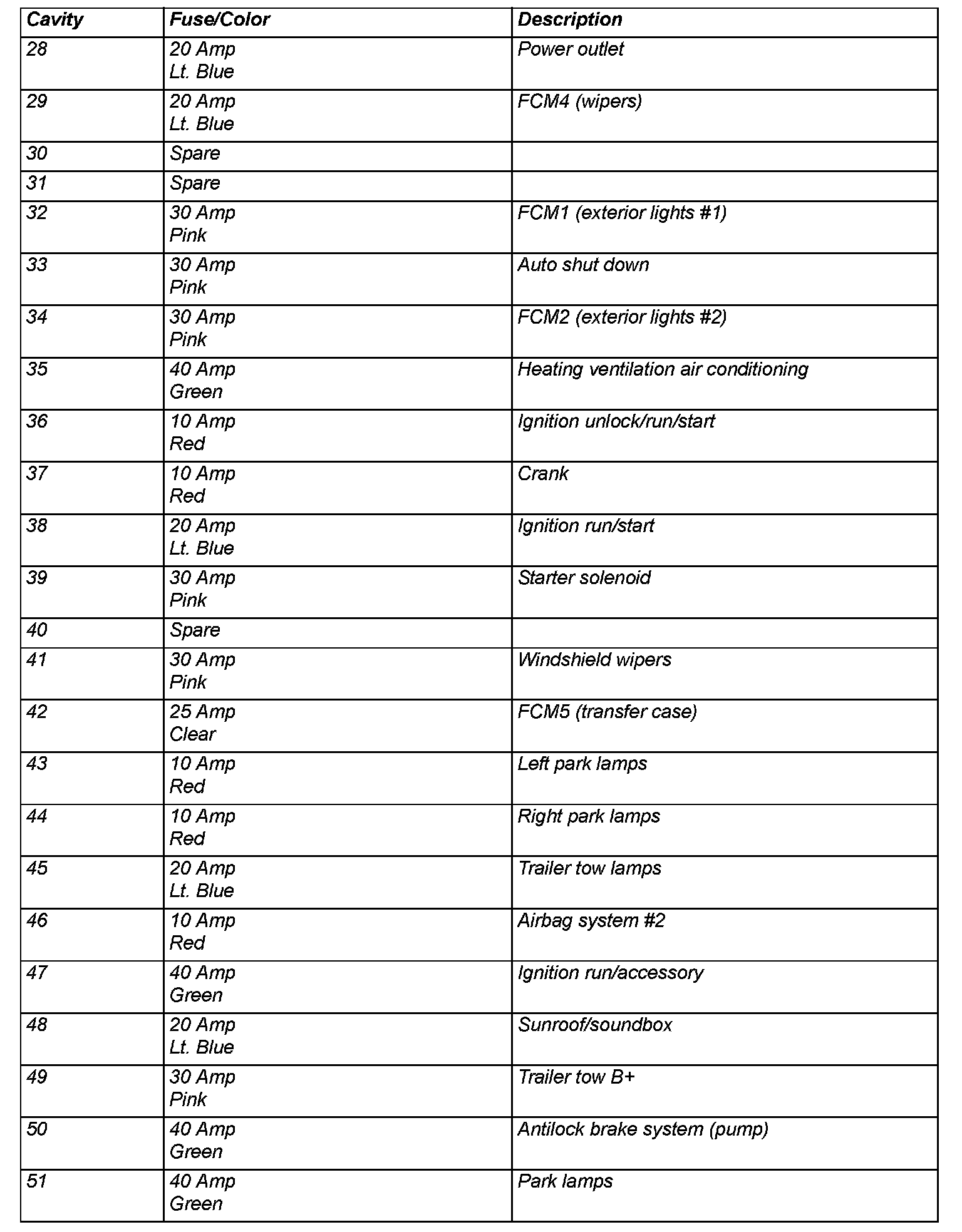

28 20 Amp Lt. Blue (Power outlet)
29 20 Amp Lt. Blue (FCM4 (wipers))
30 Spare
31 Spare
32 30 Amp Pink (FCM1 (exterior lights #1))
33 30 Amp Pink (Auto shut down)
34 30 Amp Pink (FCM2 (exterior lights #2))
35 40 Amp Green (Heating ventilation air conditioning)
36 10 Amp Red (Ignition unlock/run/start)
37 10 Amp Red (Crank)
38 20 Amp Lt. Blue (Ignition run/start)
39 30 Amp Pink (Starter solenoid)
40 Spare
41 30 Amp Pink (Windshield wipers)
42 25 Amp Clear (FCM5 (transfer case))
43 10 Amp Red (Left park lamps)
44 10 Amp Red (Right park lamps)
45 20 Amp Lt. Blue (Trailer tow lamps)
46 10 Amp Red (Airbag system #2)
47 40 Amp Green (Ignition run/accessory)
48 20 Amp Lt. Blue (Sunroof/soundbox)
49 30 Amp Pink (Trailer tow B+)
50 40 Amp Green (Antilock brake system (pump))
51 40 Amp Green (Park lamps)

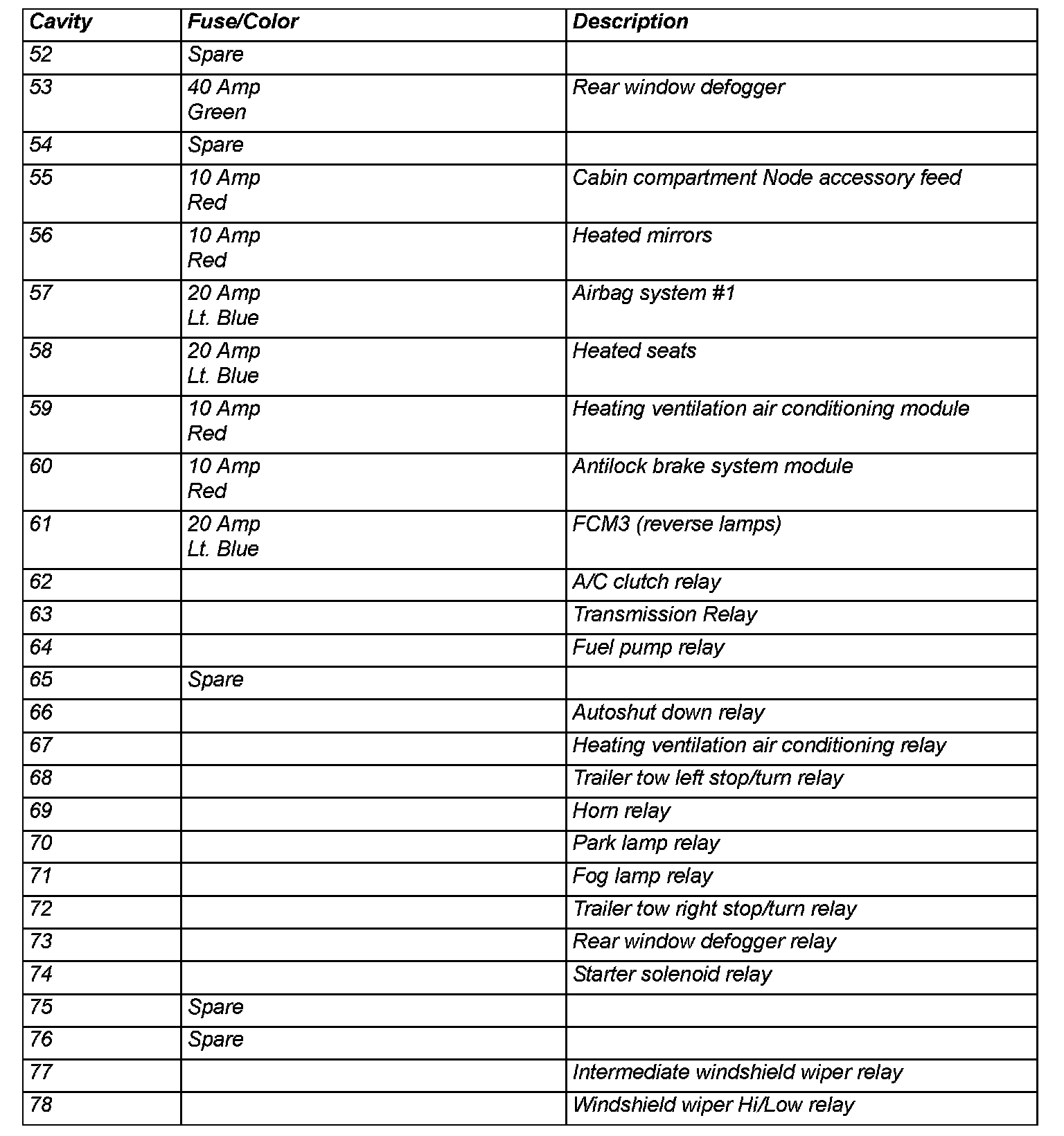

52 Spare
53 40 Amp Green (Rear window defogger)
54 Spare
55 10 Amp Red (Cabin compartment Node accessory feed)
56 10 Amp Red (Heated mirrors)
57 20 Amp Lt. Blue (Airbag system #1)
58 20 Amp Lt. Blue (Heated seats)
59 10 Amp Red (Heating ventilation air conditioning module)
60 10 Amp Red (Antilock brake system module)
61 20 Amp Lt. Blue (FCM3 (reverse lamps))
62 A/C clutch relay
63 Transmission Relay
64 Fuel pump relay
65 Spare
66 Autoshut down relay
67 Heating ventilation air conditioning relay
68 Trailer tow left stop/turn relay
69 Horn relay
70 Park lamp relay
71 Fog lamp relay
72 Trailer tow right stop/turn relay
73 Rear window defogger relay
74 Starter solenoid relay
75 Spare
76 Spare
77 Intermediate windshield wiper relay
78 Windshield wiper Hi/Low relay
