Home >> Mitsubishi >> 2007 >> Raider 2WD V6-3.7L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Camshaft Position Sensor >> Locations

Camshaft Position Sensor: Locations

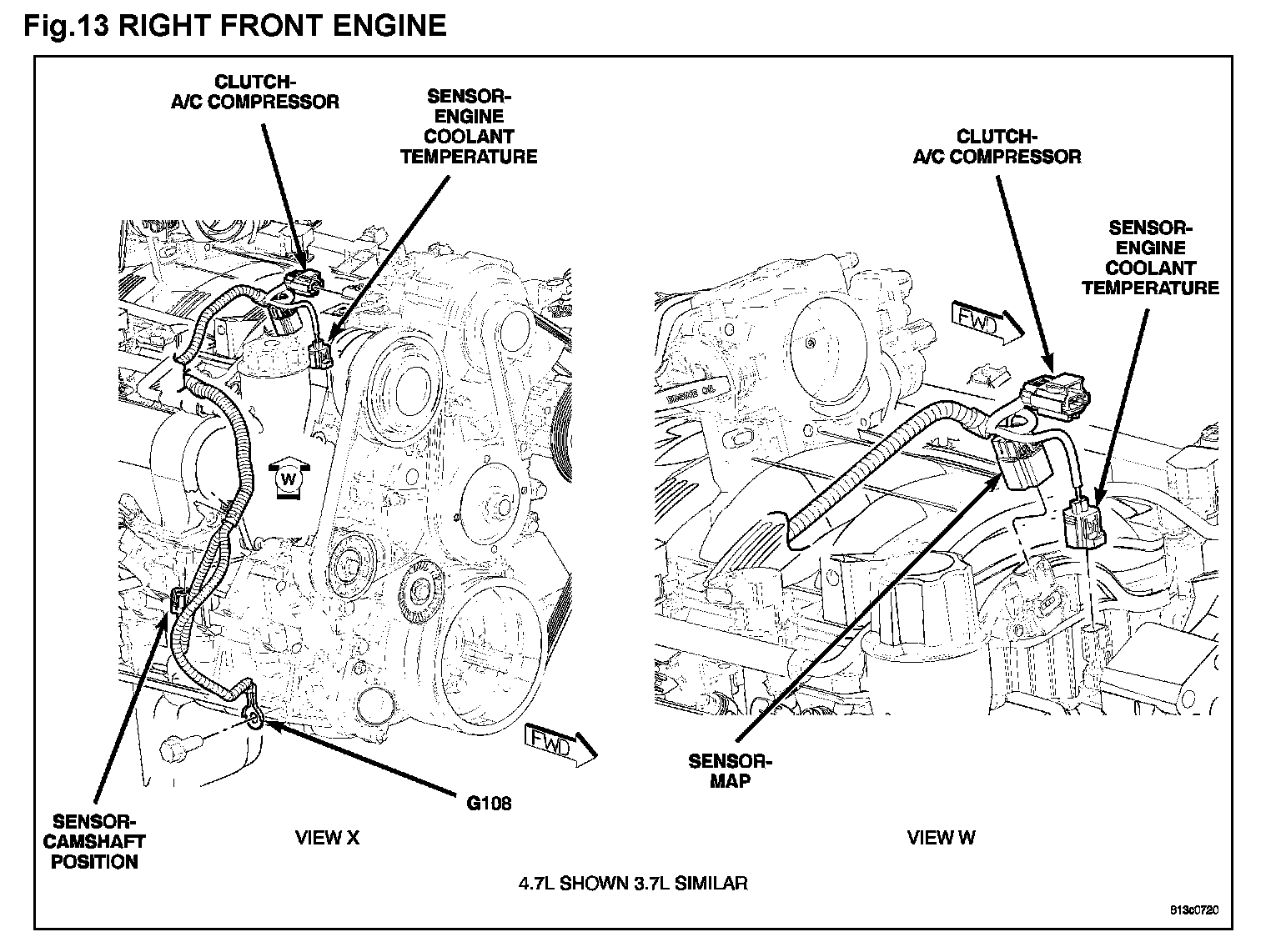

Fig. 13 Right Front Engine:
