Oxygen Sensor: Diagrams

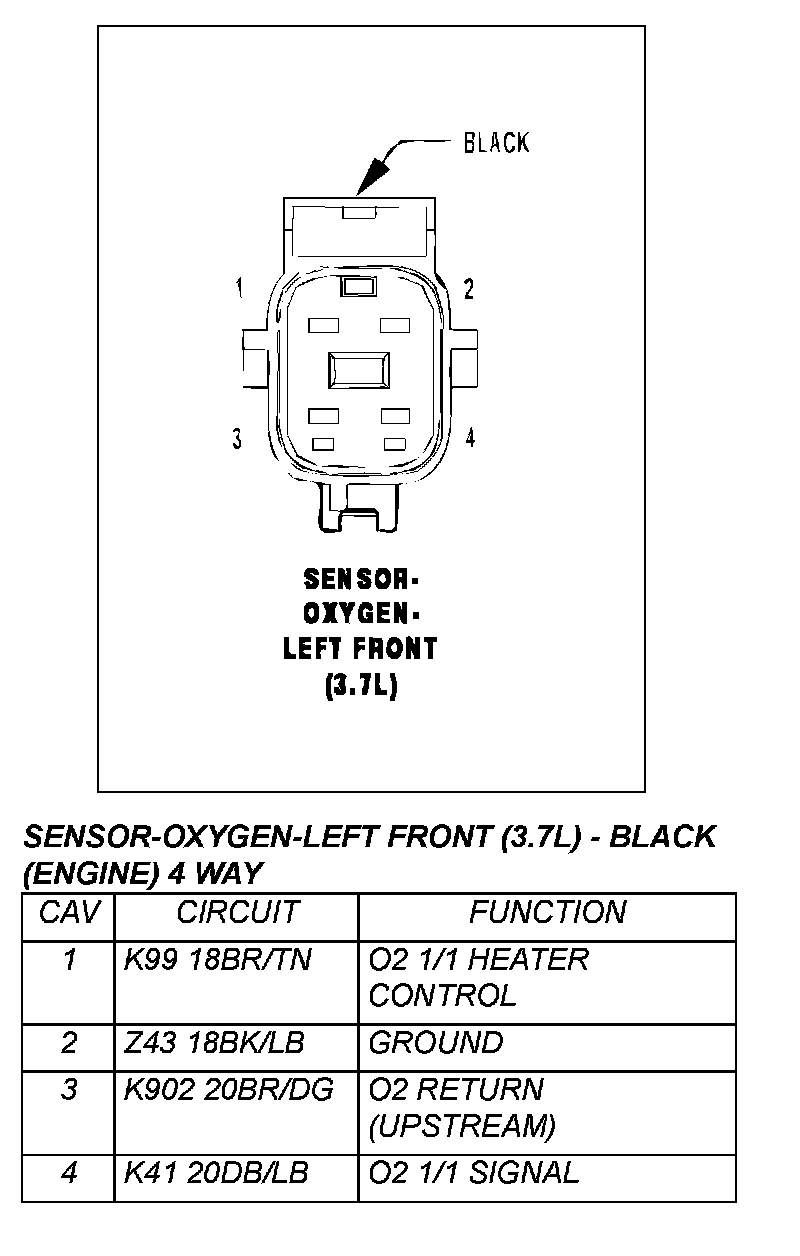

Sensor-Oxygen - Left Front (3.7L) - Black (Engine) 4 Way:

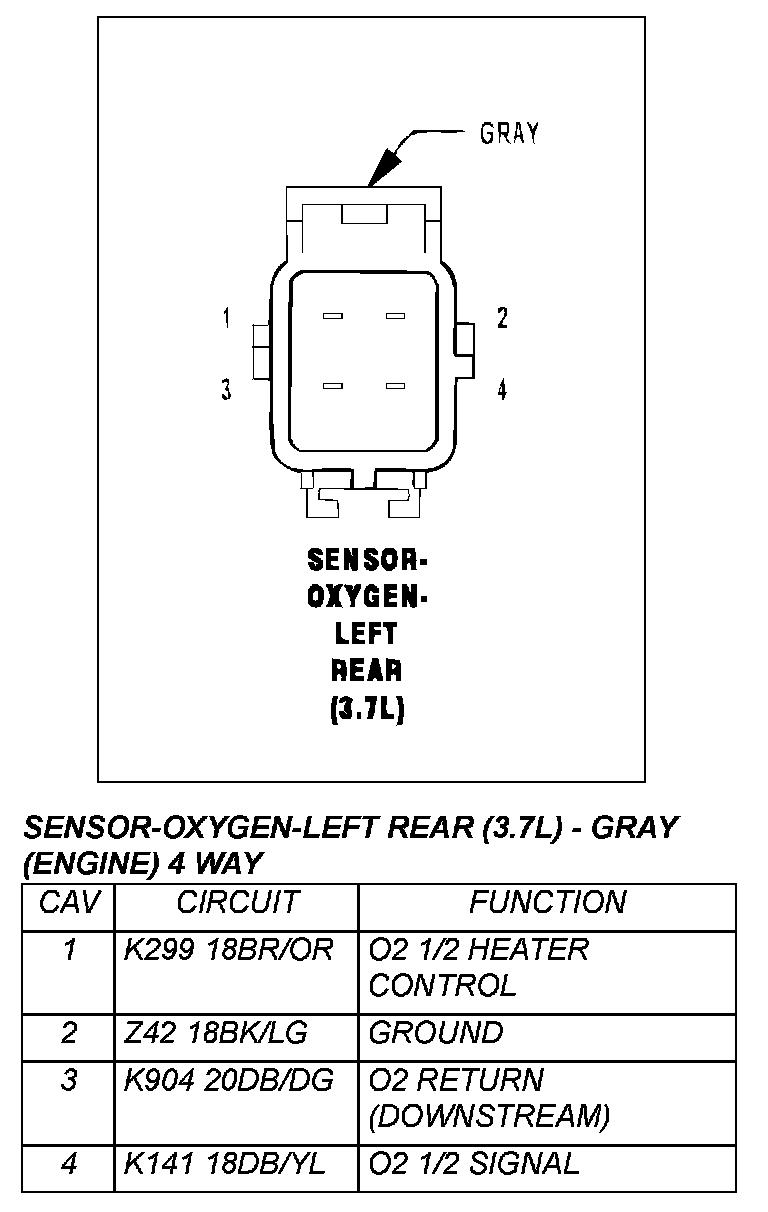

Sensor-Oxygen - Left Rear (3.7L) - Gray (Engine) 4 Way:

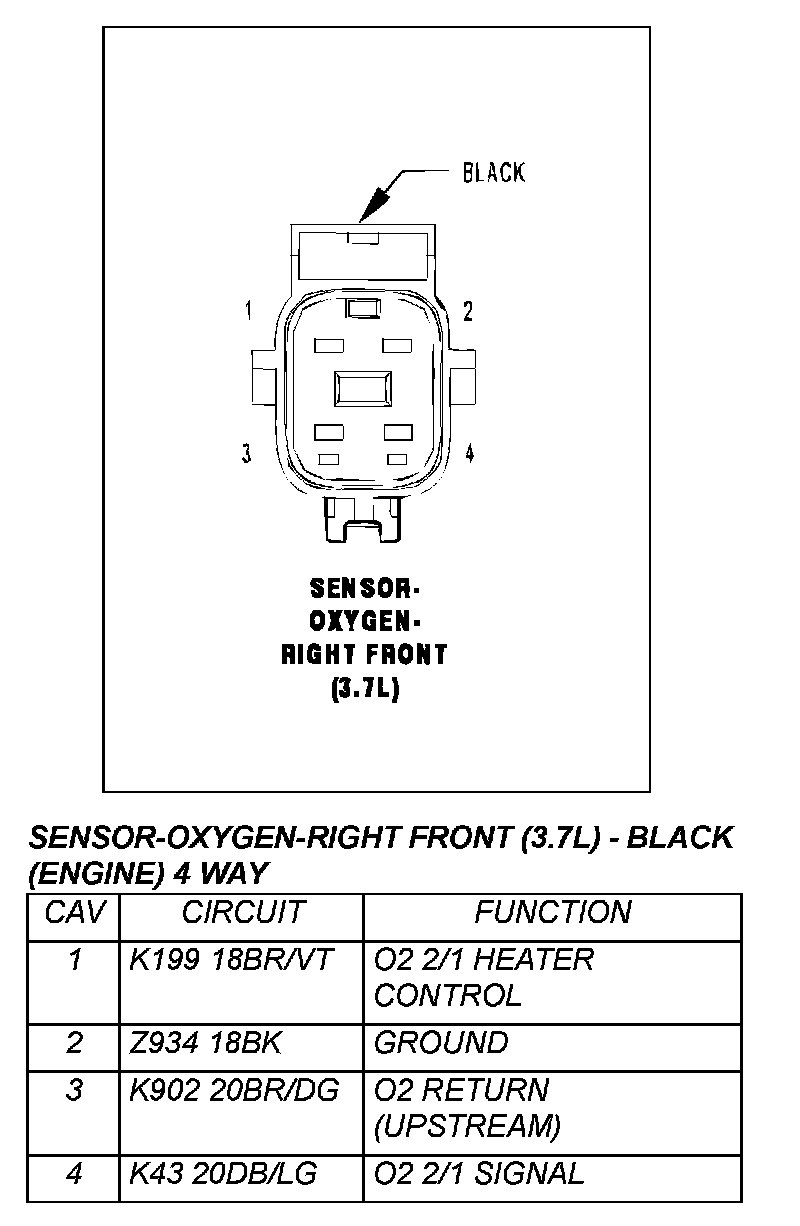

Sensor-Oxygen - Right Front (3.7L) - Black (Engine) 4 Way:

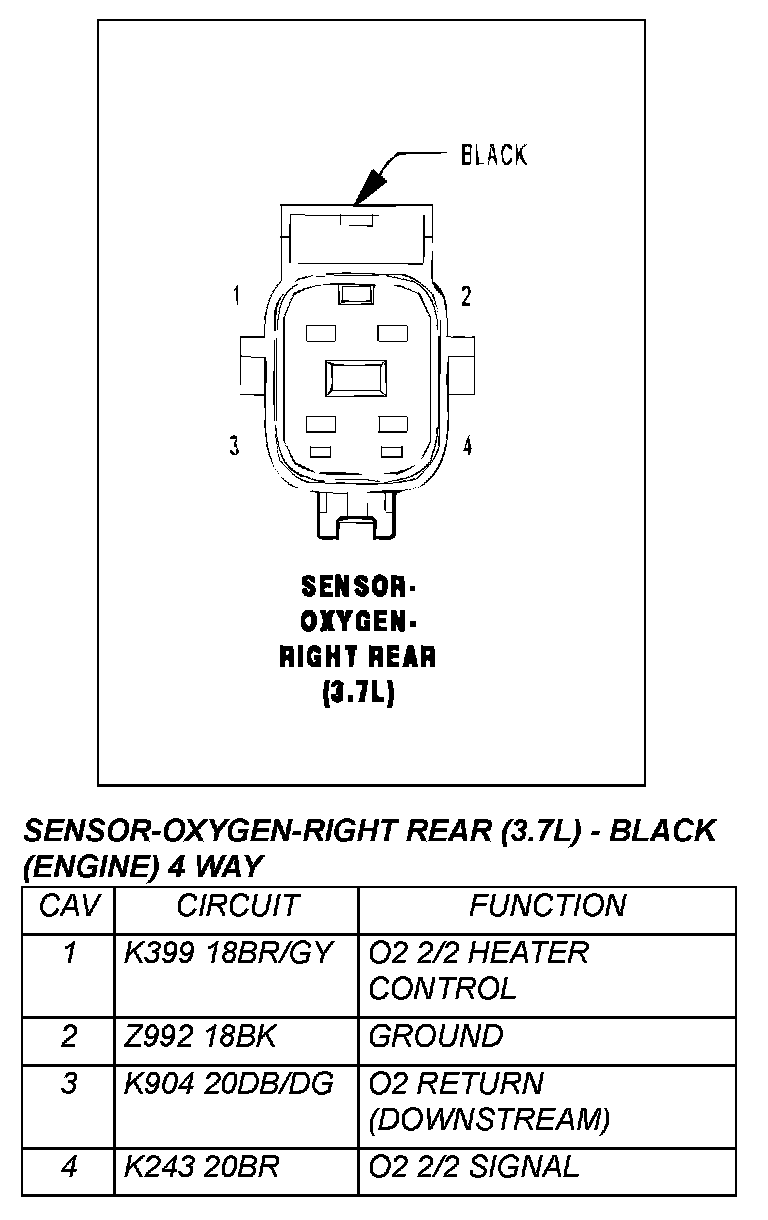

Sensor-Oxygen - Right Rear (3.7L) - Black (Engine) 4 Way:
