Service Information - 42RLE

AUTOMATIC TRANSMISSION <42RLE> - SPECIFICATIONS

GENERAL SPECIFICATIONS:

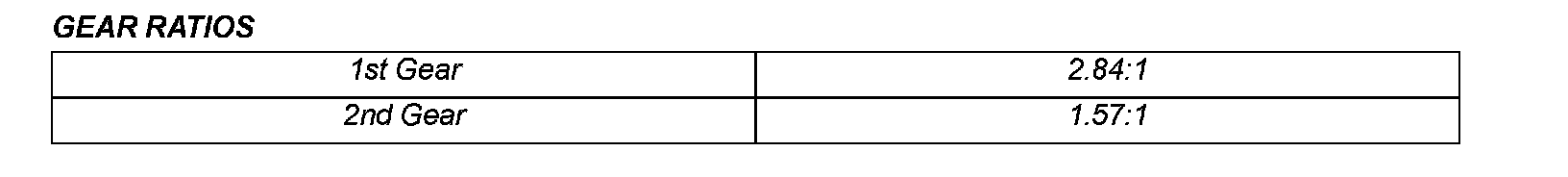

GEAR RATIOS (Part 1):




GEAR RATIOS (Part 2):




BEARING PRELOAD (Drag Torque):

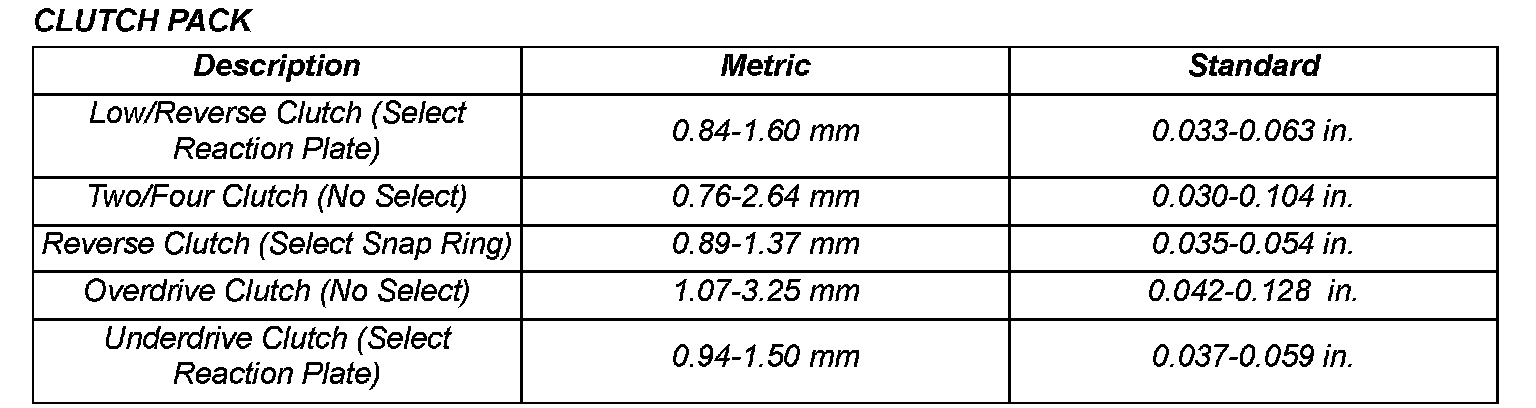

CLUTCH PACK:

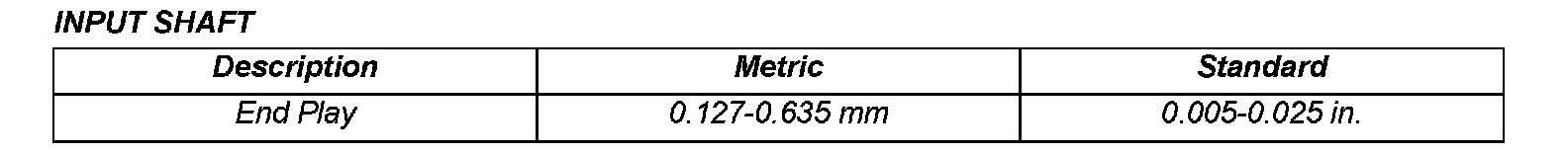

INPUT SHAFT:

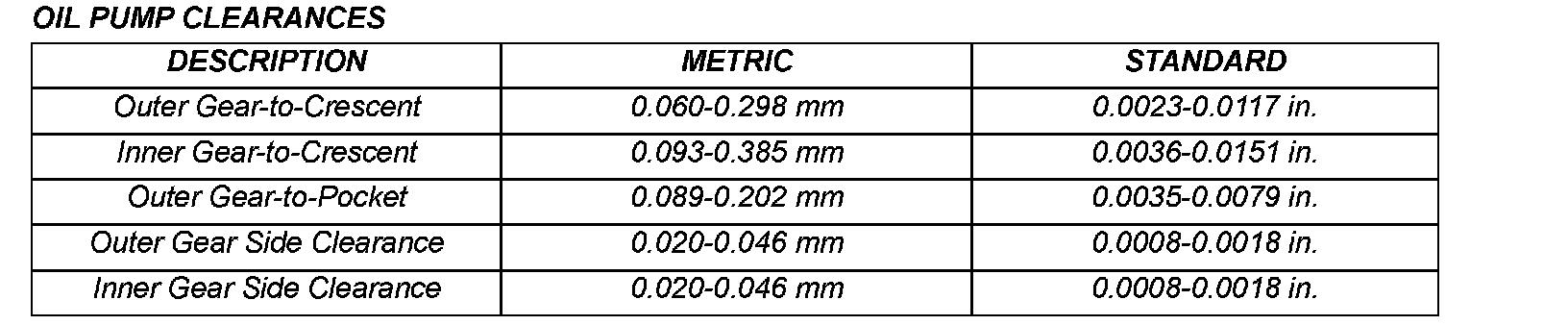

OIL PUMP CLEARANCES:
