Evaporator Temperature Sensor / Switch
Evaporator Temperature Sensor / Switch

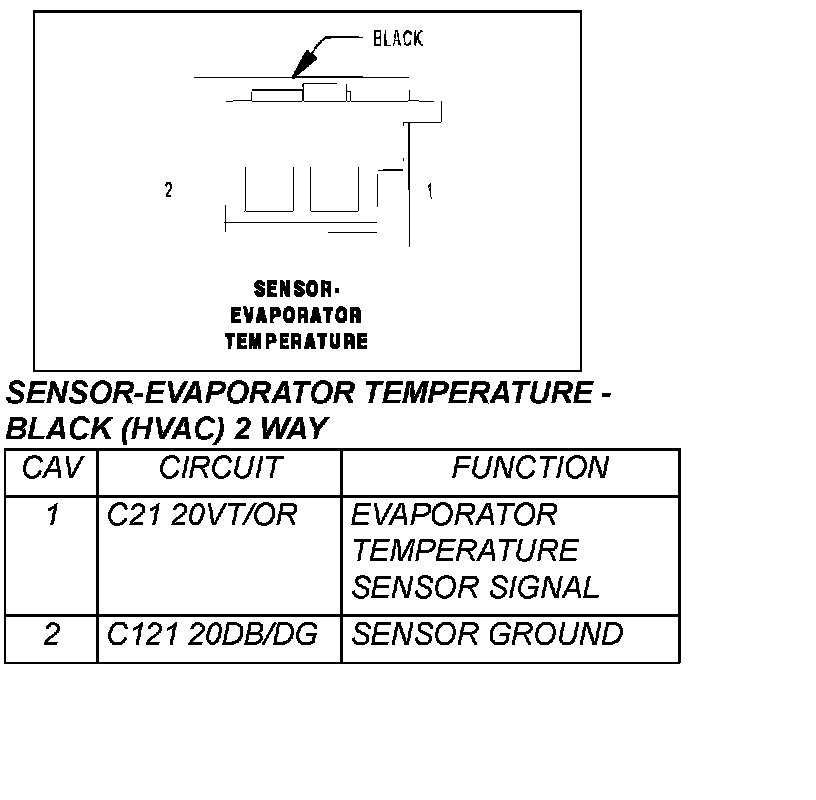

Sensor-Evaporator Temperature Black (HVAC) 2 Way:
