Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
2007
>>
Raider 2WD V8-4.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fog/Driving Lamp
Fog/Driving Lamp

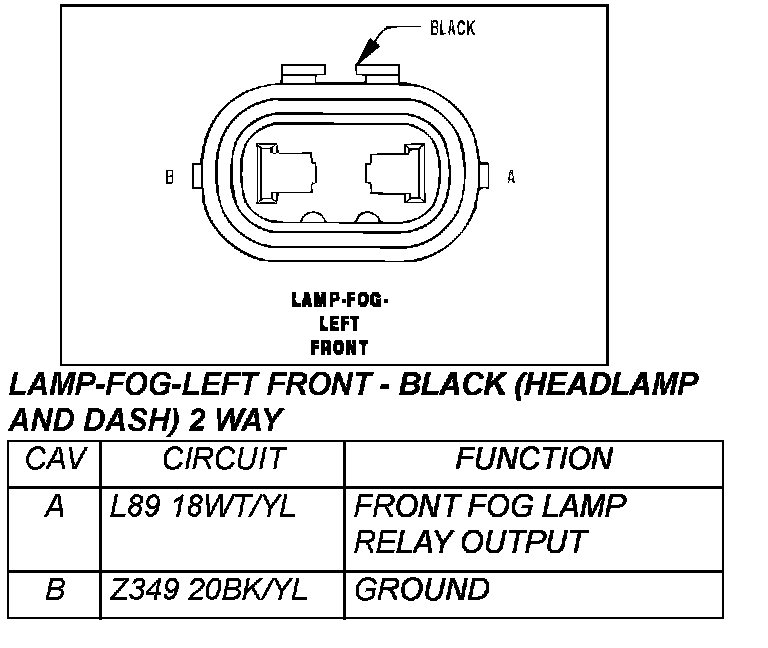

Lamp-Fog-Left Front - Black (Headlamp And Dash) 2 Way:

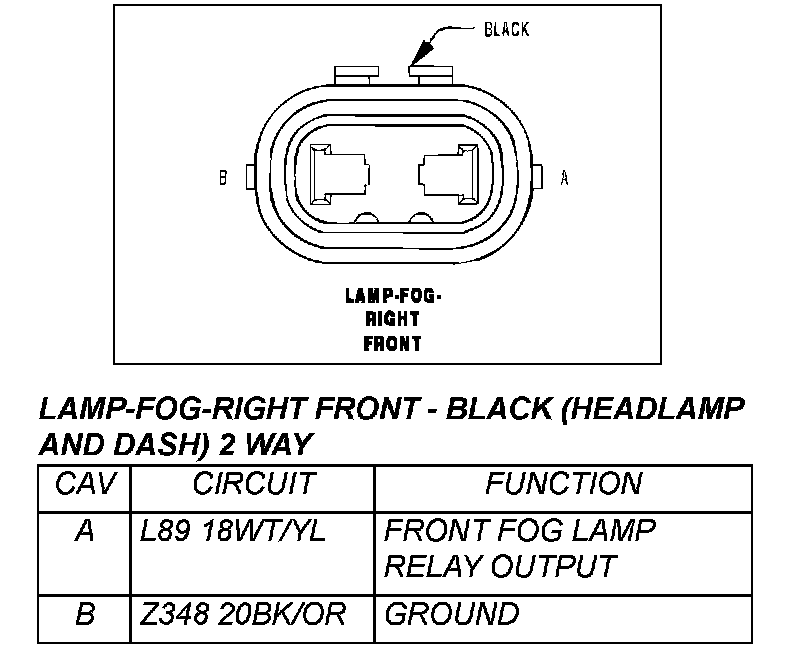

Lamp-For-Right Front - Black (Headlamp And Dash) 2 Way:
