Raider 2WD V8-4.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heated Glass Element
Heated Glass Element

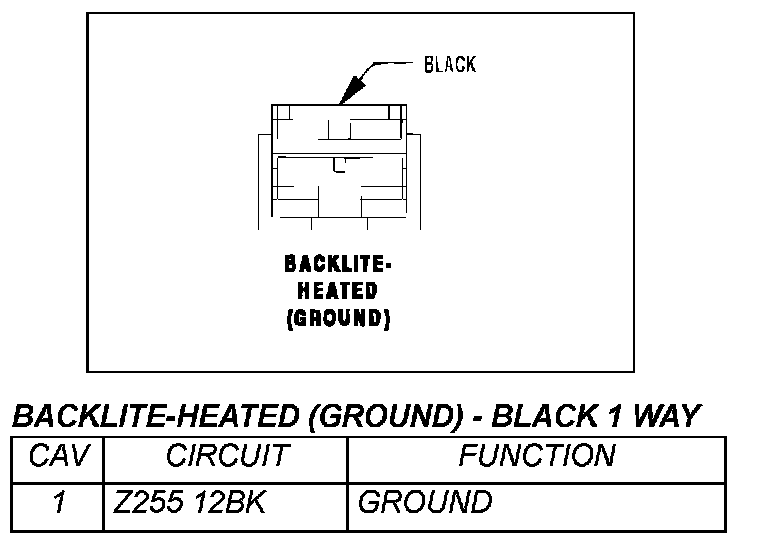

Backlite-Heated (Ground) - Black 1 Way:

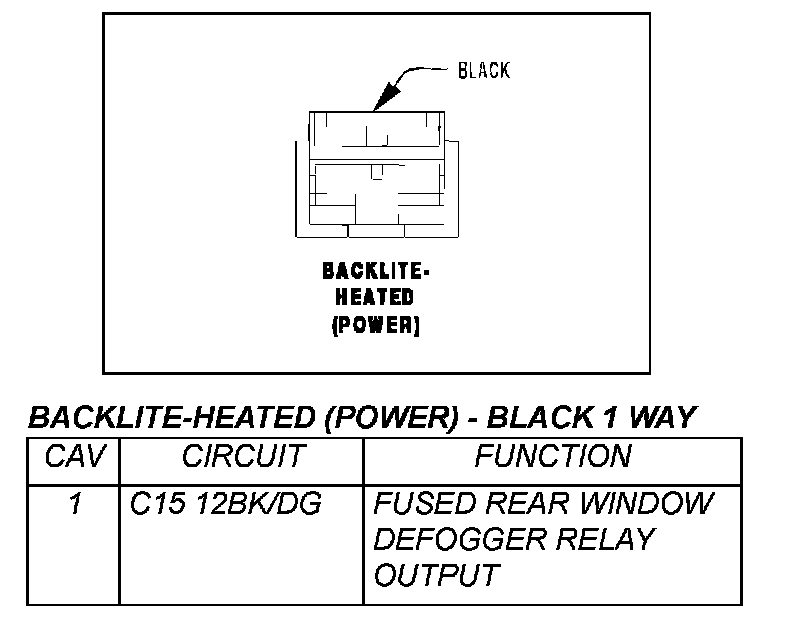

Backlite-Heated (Power) - Black 1 Way:
