System Diagram

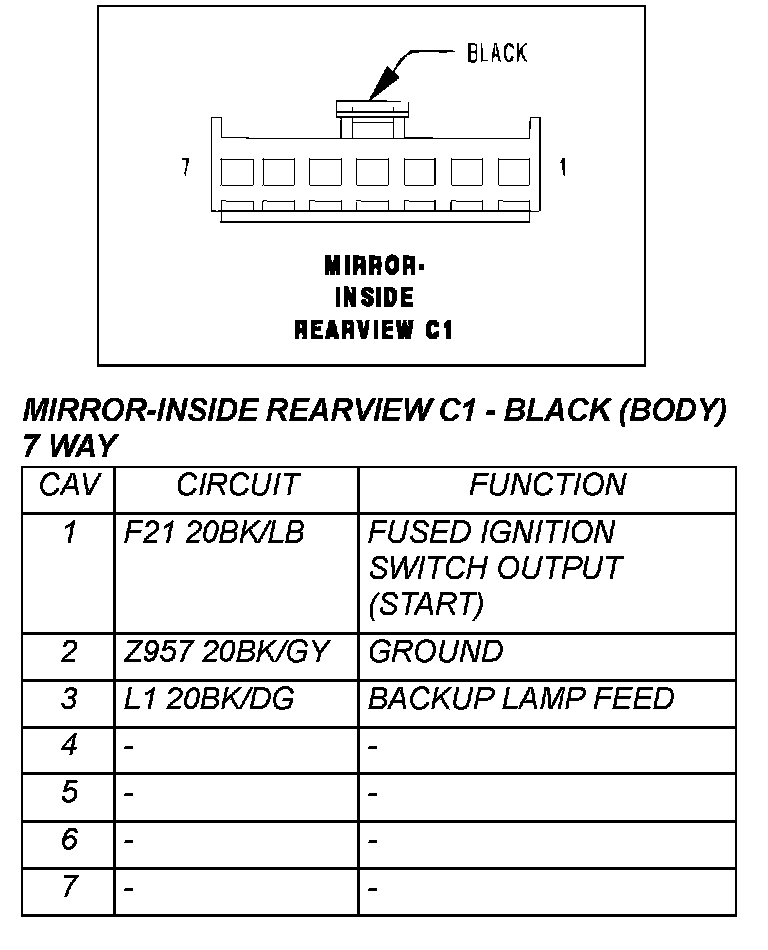

Mirror-Inside Rearview C1 - Black (Body) 7 Way:

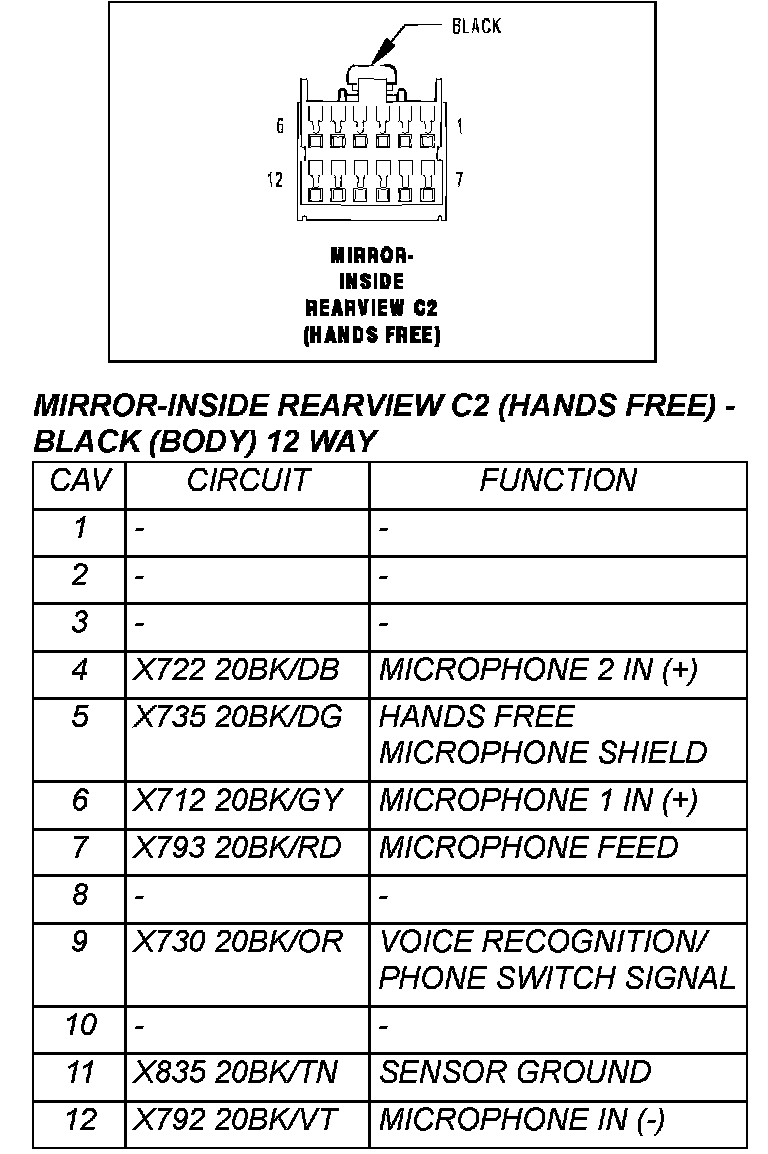

Mirror-Inside Rearview C2 (Hands Free) - Black (Body) 12 Way:

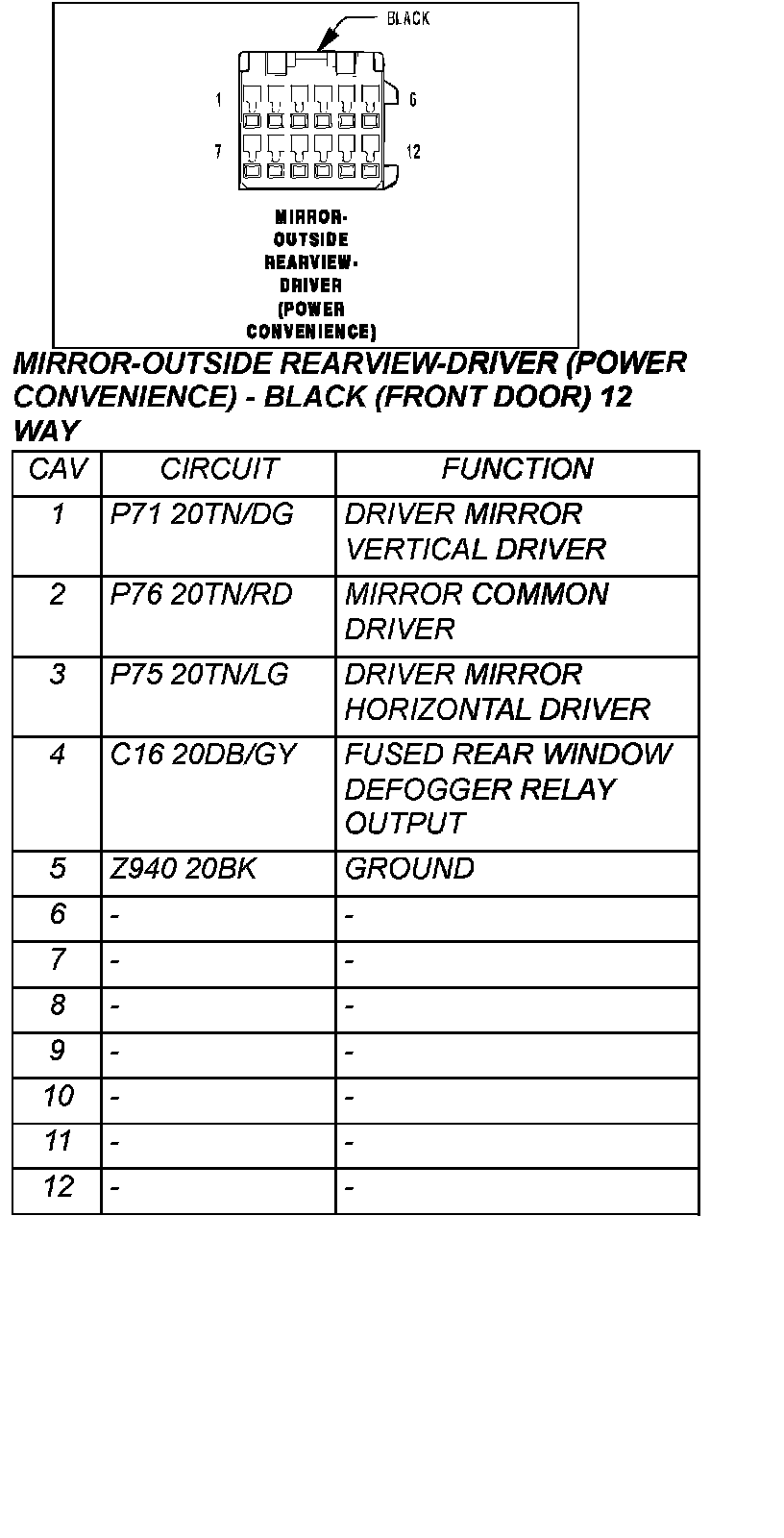

Mirror-Outside Rearview - Driver (Power Convenience) - Black (Front Door) 12 Way:
Mirror-Outside Rearview - Passenger (Power Convenience) - Black (Front Door) 12 Way:
