Shift Interlock Solenoid
Shift Interlock Solenoid

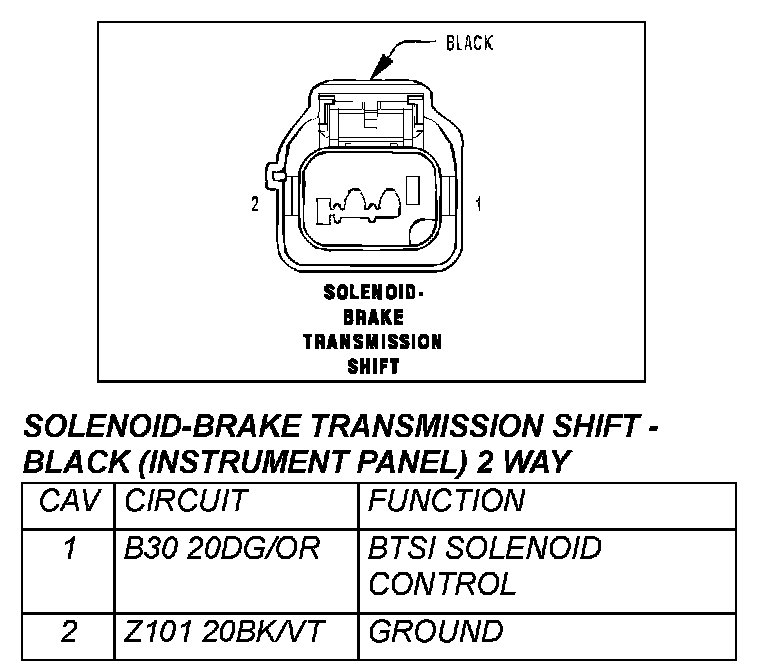

Solenoid-Brake Transmission Shift - Black (Instrument Panel) 2 Way:
