Trailer Connector
Trailer Connector

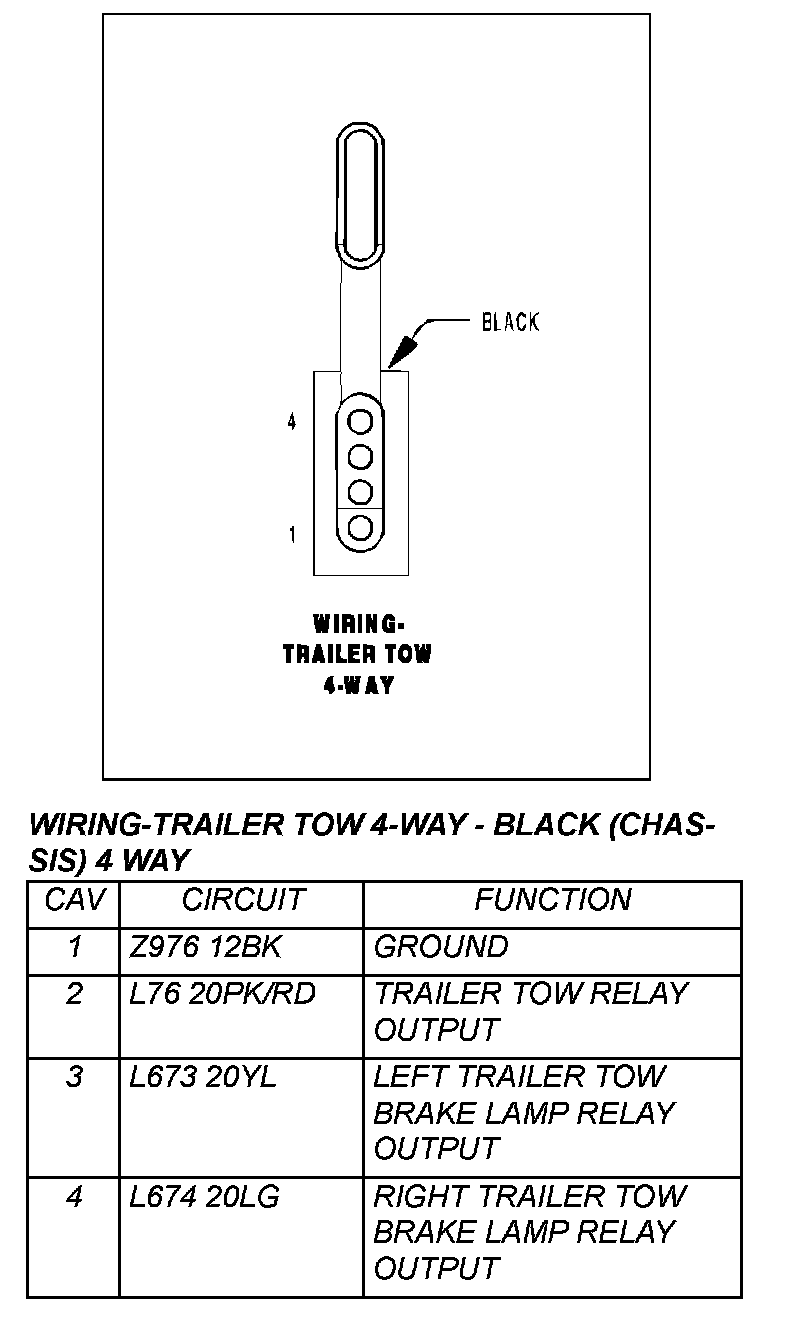

Wiring-Trailer Tow 4 - Way - Black (Chassis) 4 Way:

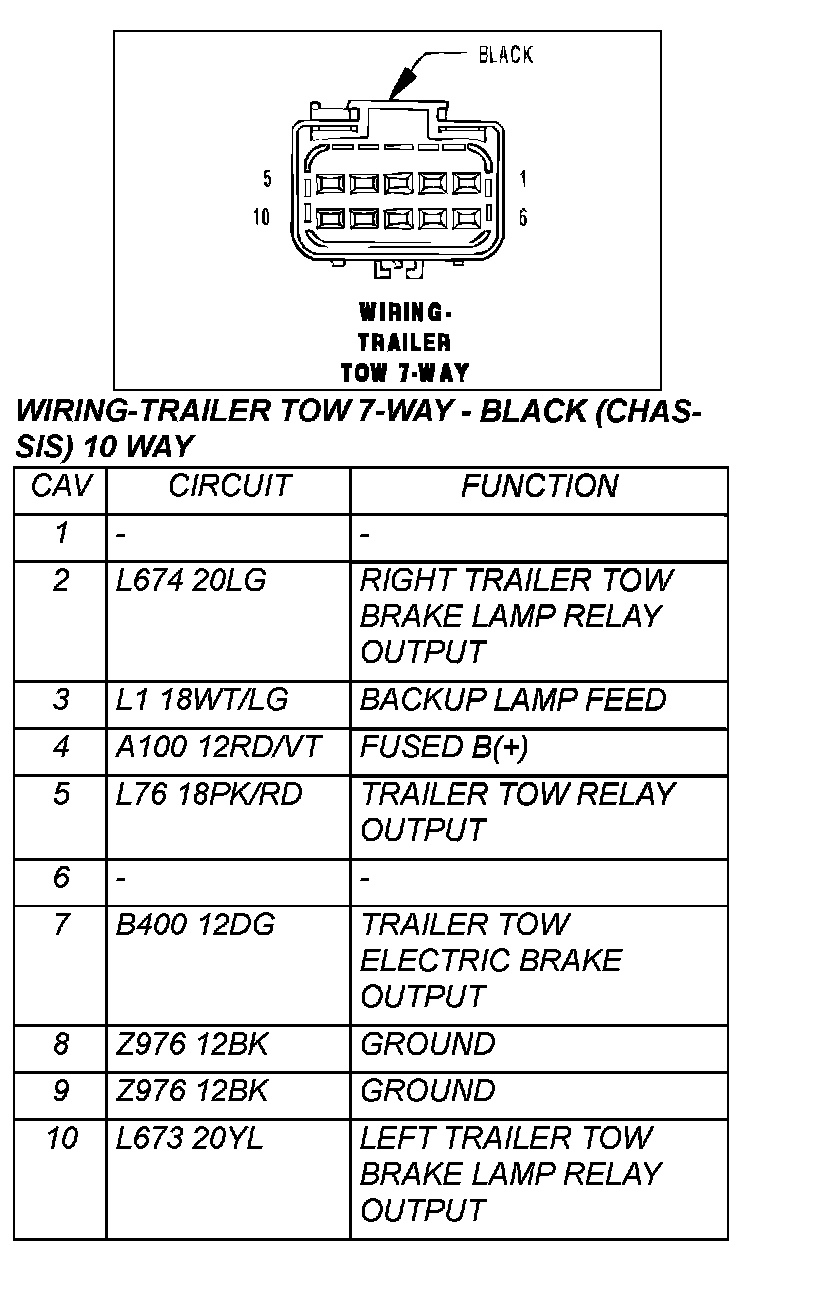

Wiring Trailer Tow 7-way - Black (Chassis) 10 Way:
