Home
>>
Mitsubishi
>>
2007
>>
Raider 2WD V8-4.7L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Wiper Motor
Wiper Motor

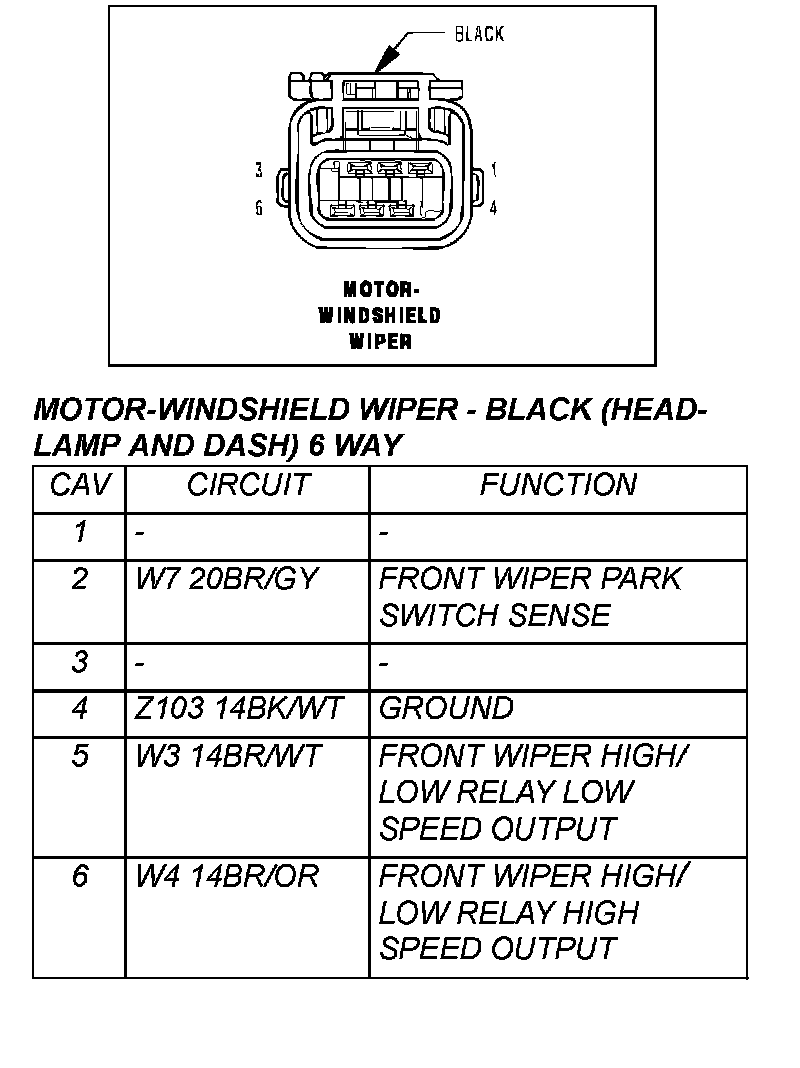

Motor-Windshield Wiper - Black (Headlamp And Dash) 6 Way:
