Splice Location Index

PLEASE NOTE:
If a link on the index chart to a figure is not provided, that means that the connector and/or figure in question does NOT apply to the vehicle model selected.

The abbreviation T/O (Take Out) is used in the location column to indicate a point in which the wiring harness branches out to a component.

The abbreviation N/S means Not Shown in the illustrations.

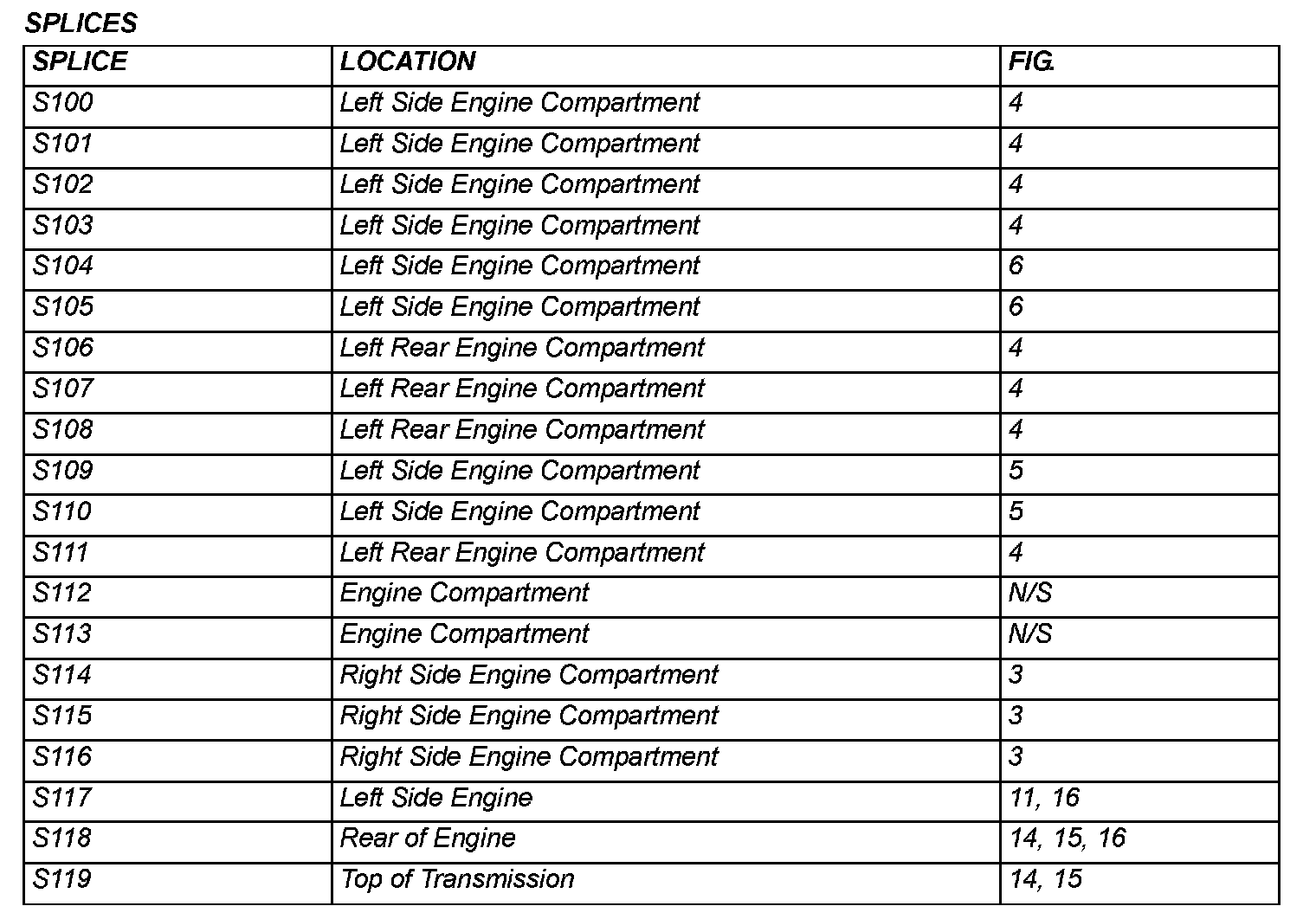

S100 - S119:

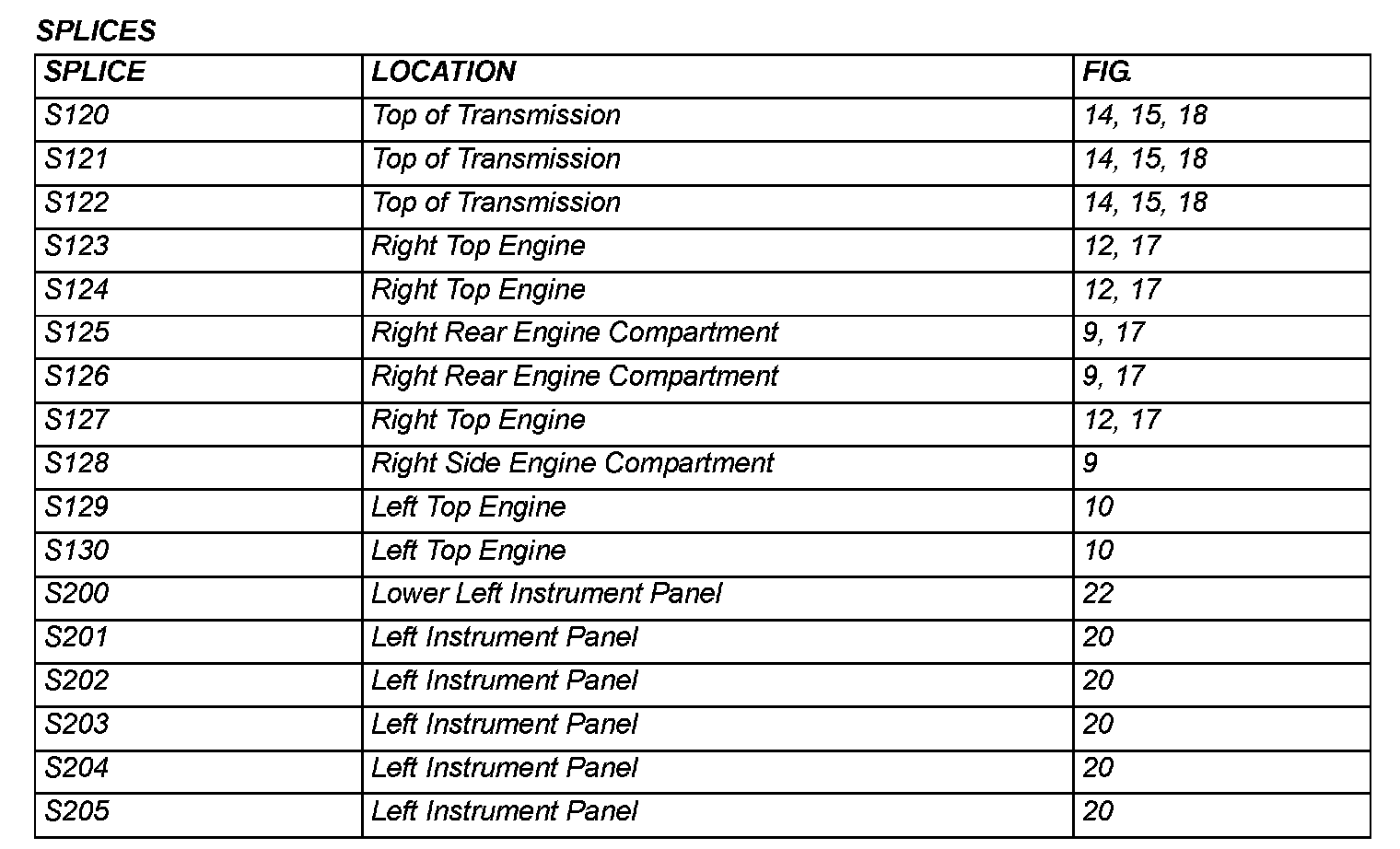

S120 - S205:

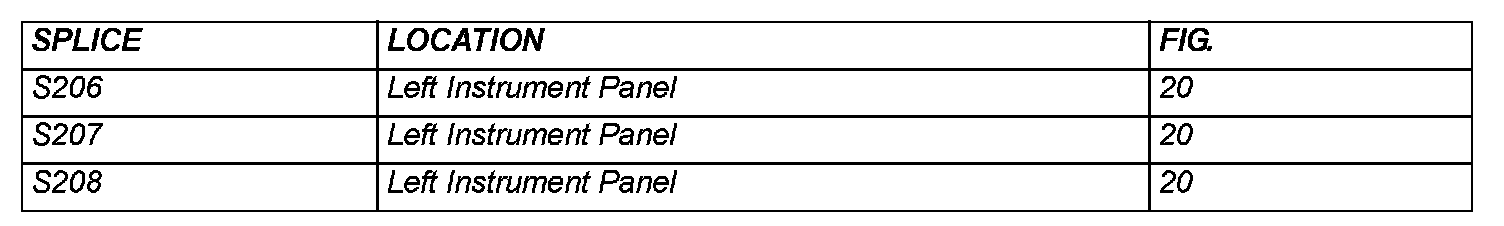

S206 - S208:

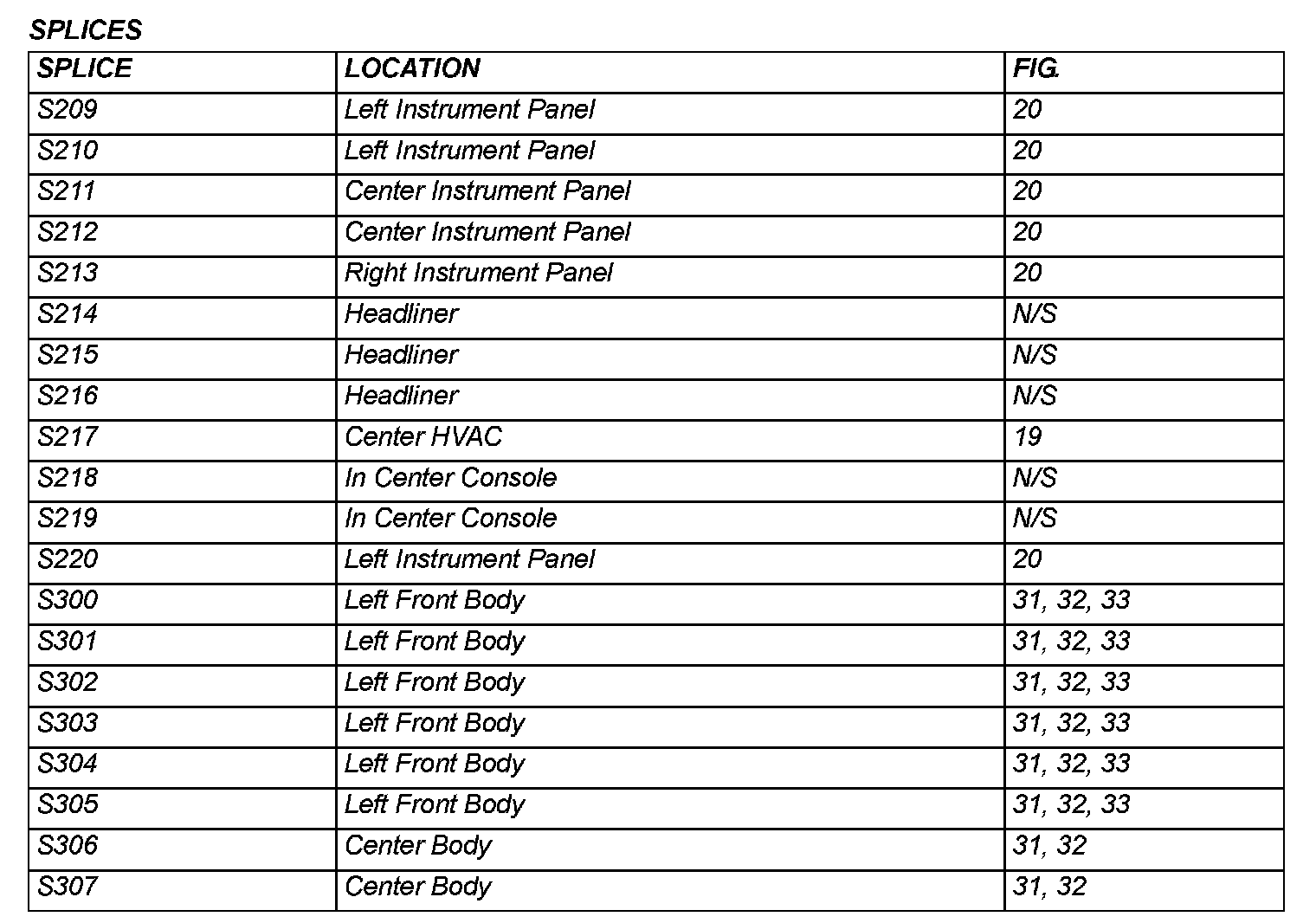

S209 - S307:

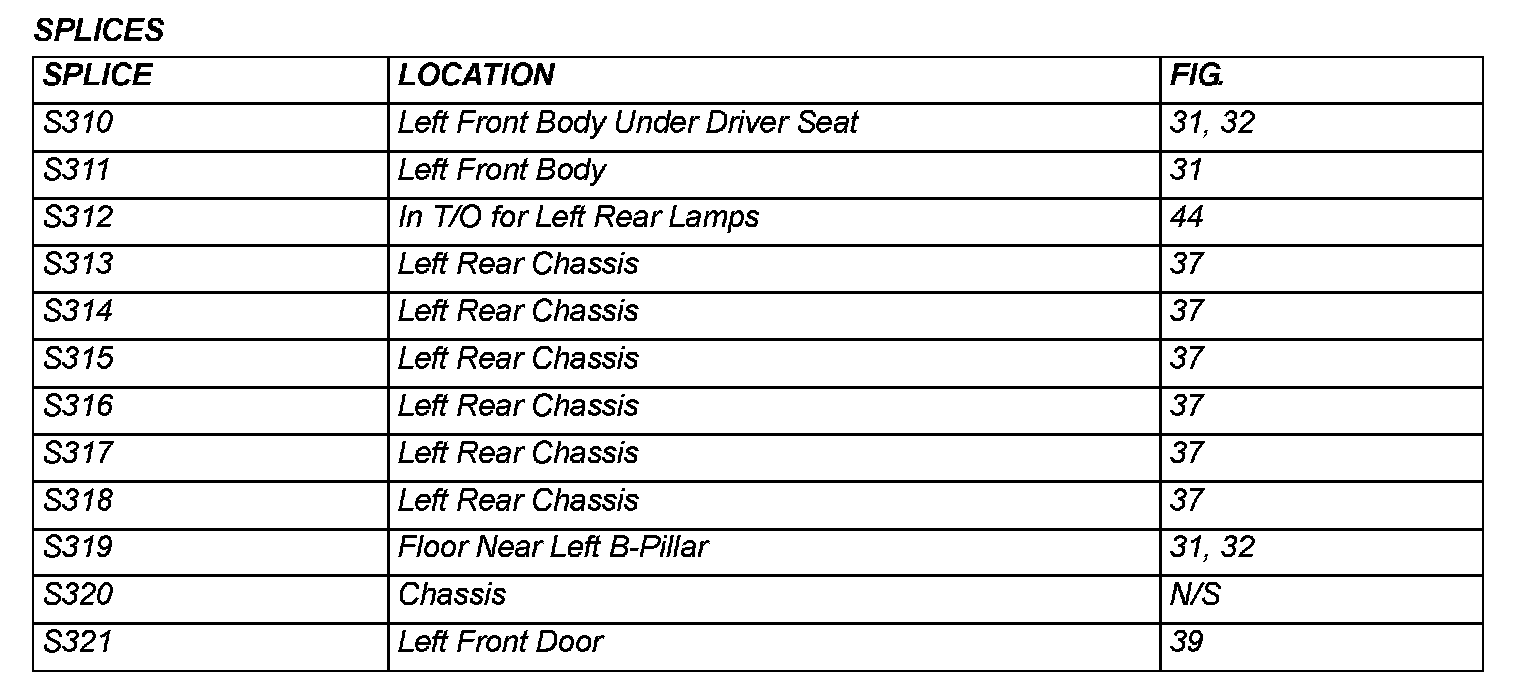

S310 - S321:

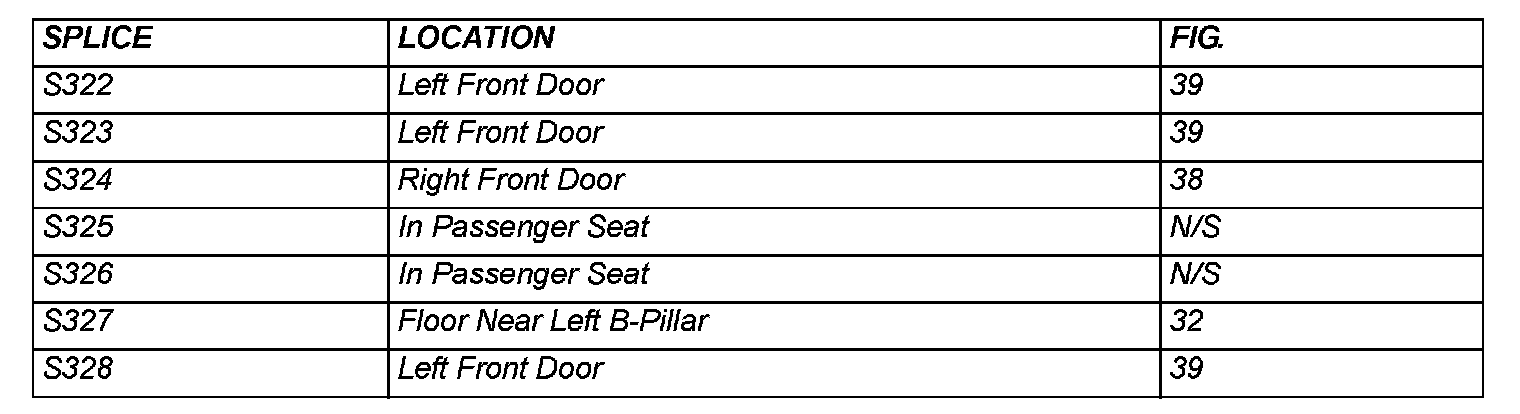

S322 - S328:
