Accelerator Pedal Position Sensor: Diagrams

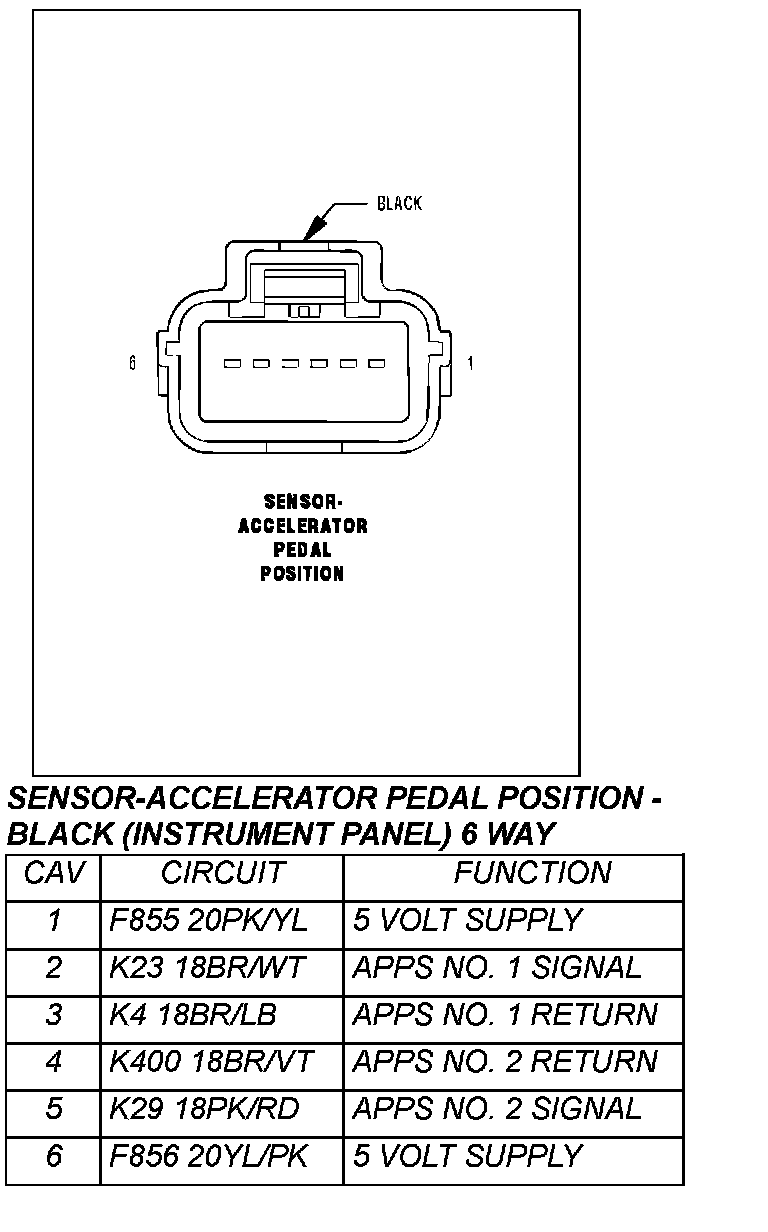

Sensor-Accelerator Pedal Position Black (Instrument Panel) 6 Way:
