Air Temperature Sensor ( Ambient / Intake ): Service and Repair

SENSOR - INTAKE AIR TEMPERATURE

REMOVAL

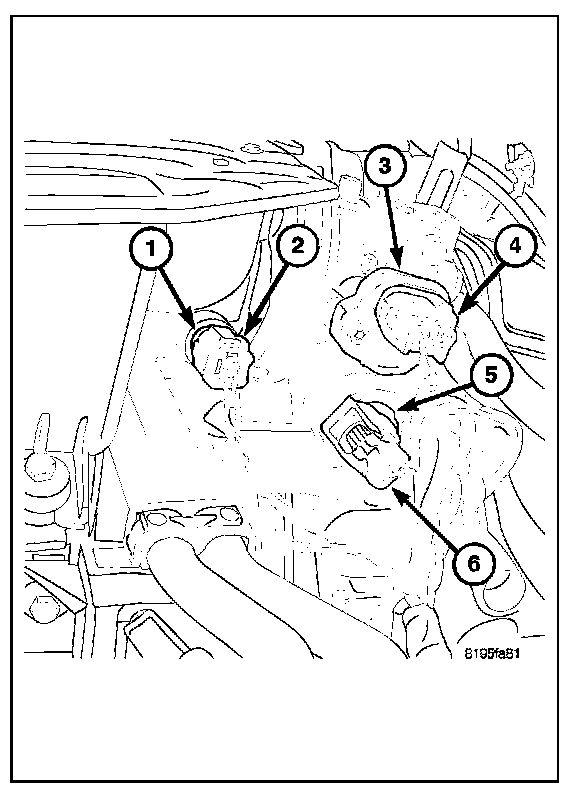

The intake manifold air temperature (IAT) sensor (1) is located near the throttle body.




1. Disconnect electrical connector from IAT sensor.
2. Clean dirt from sensor base.

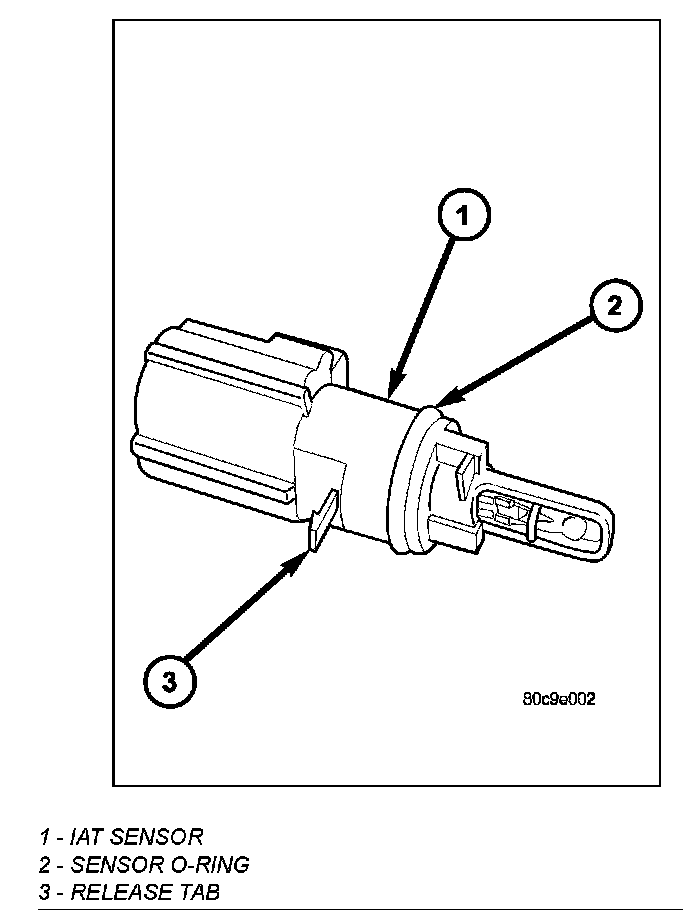

3. Gently lift on small plastic release tab (3) and rotate sensor about 1/4 turn counter-clockwise for removal.
4. Check condition of sensor O-ring (2).

INSTALLATION

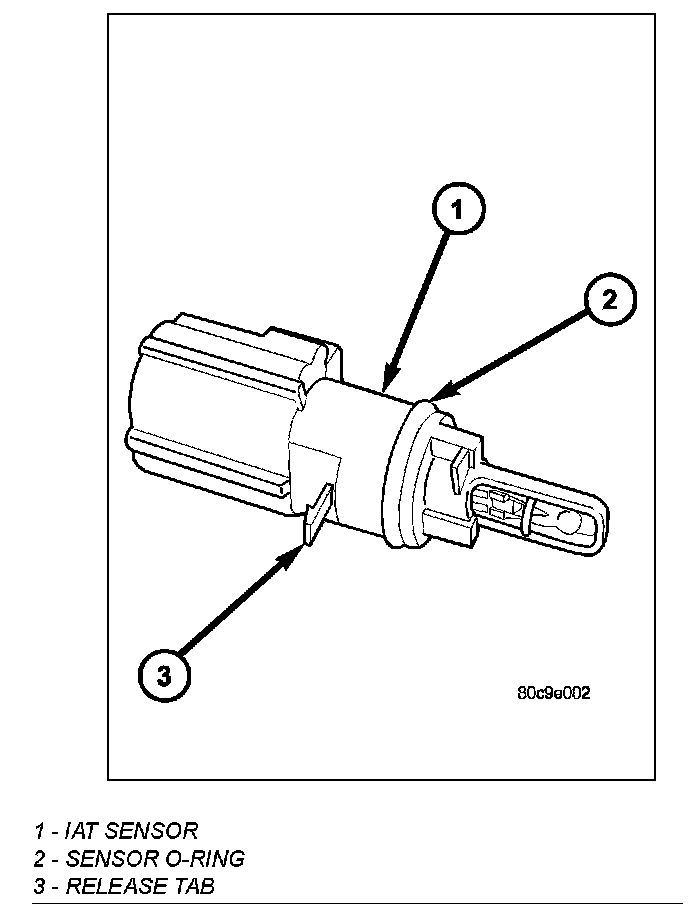

1. Check condition of sensor O-ring (2).
2. Clean sensor mounting hole.

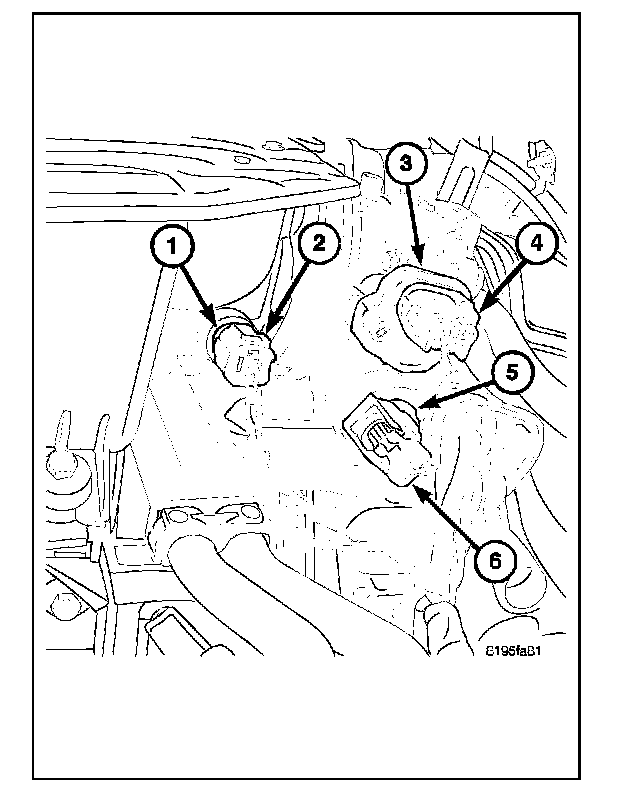

3. Position sensor (1) into base and rotate clockwise until past release tab (3).
4. Install electrical connector (2).
