Oxygen Sensor: Diagrams

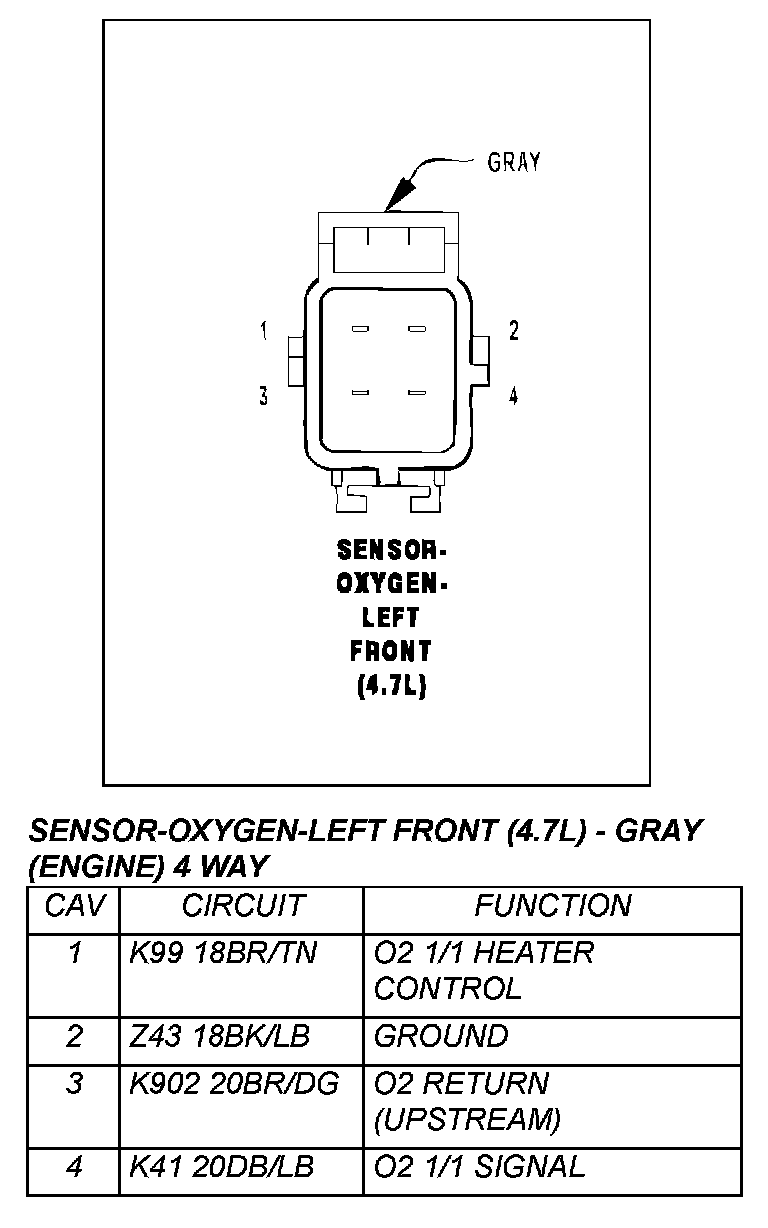

Sensor-Oxygen - Left Front (4.7L) - Gray (Engine) 4 Way:

Sensor-Oxygen - Left Rear (4.7L) - Black (Engine) 4 Way:

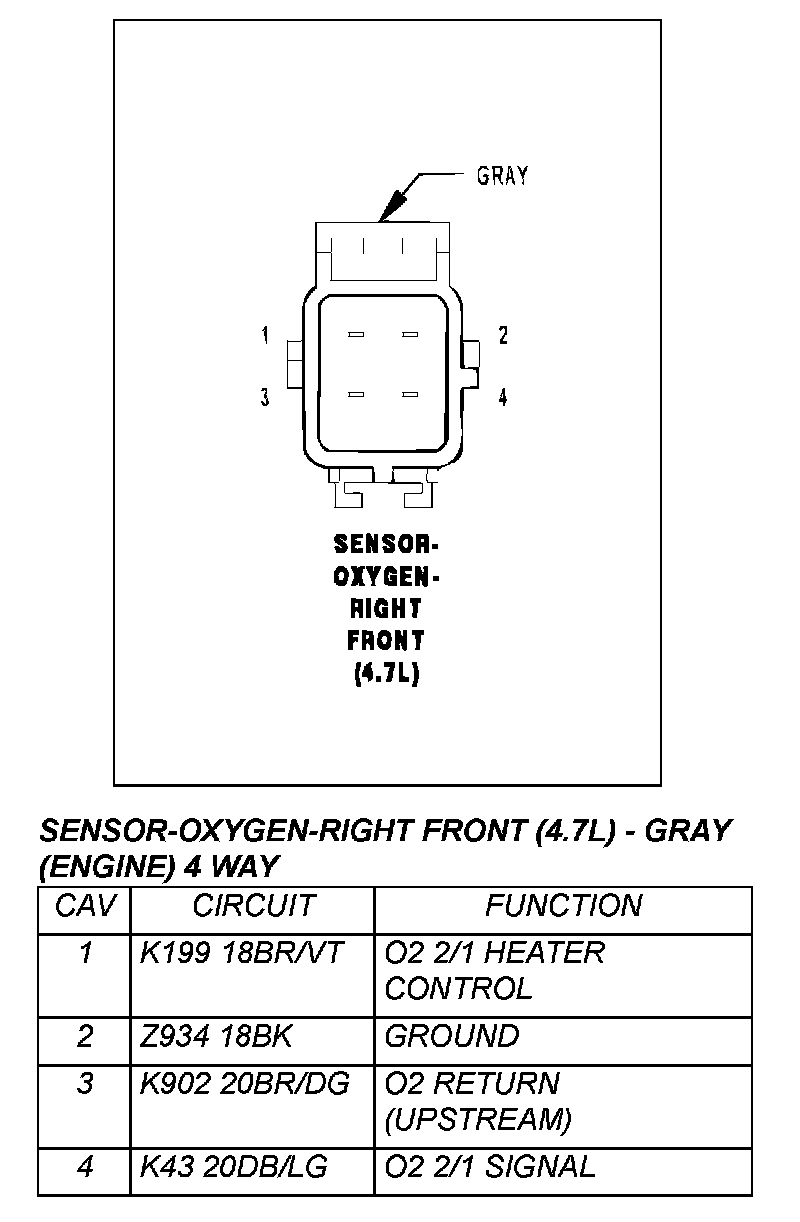

Sensor-Oxygen - Right Front (4.7L) - Gray (Engine) 4 Way:

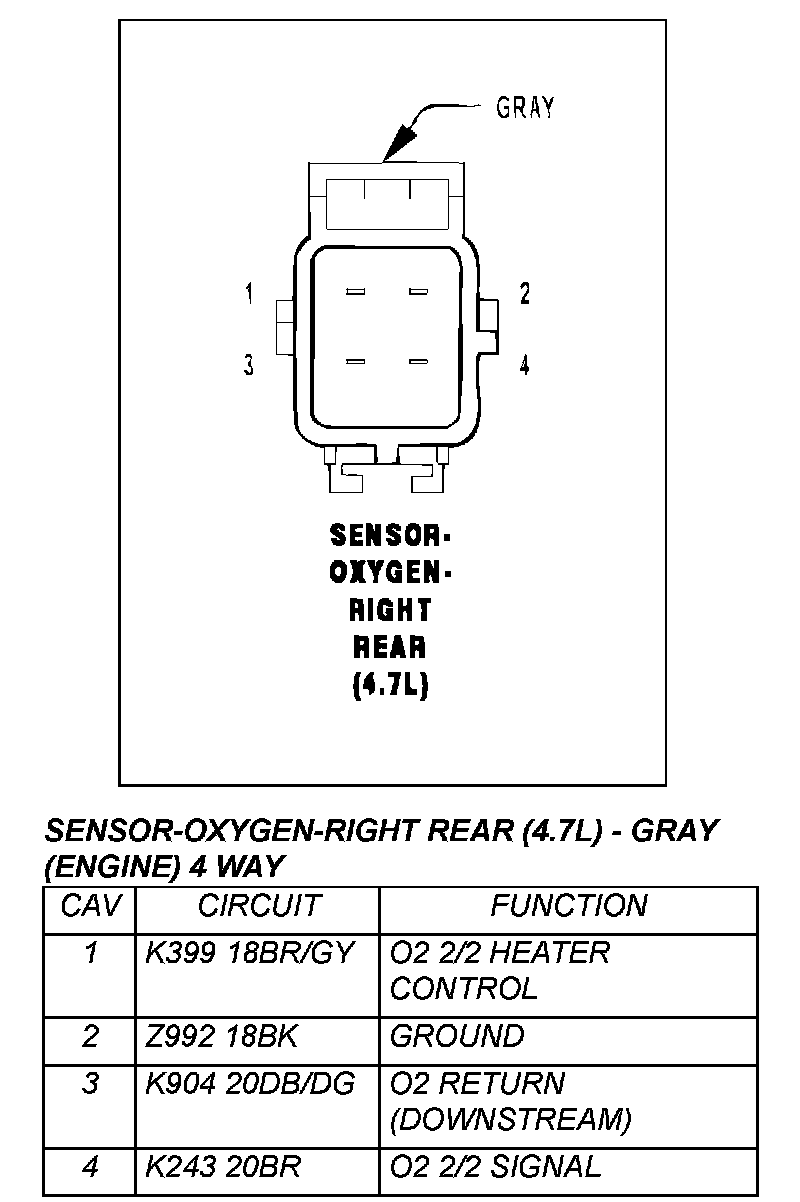

Sensor-Oxygen - Right Rear (4.7L) - Gray (Engine) 4 Way:
