System Specifications

SPECIFICATIONS

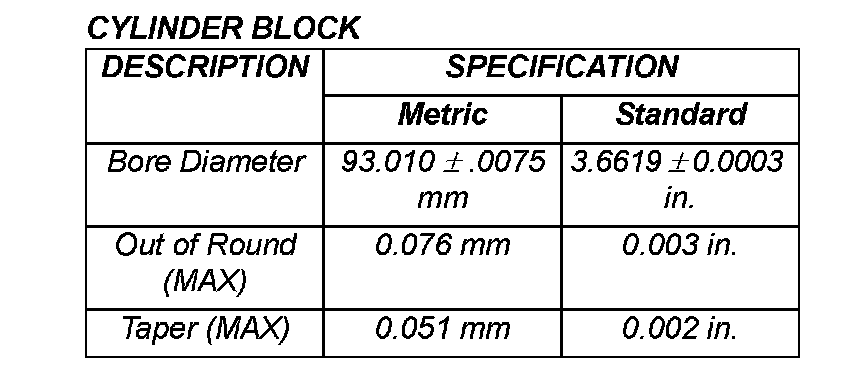

CYLINDER BLOCK

CYLINDER BLOCK:

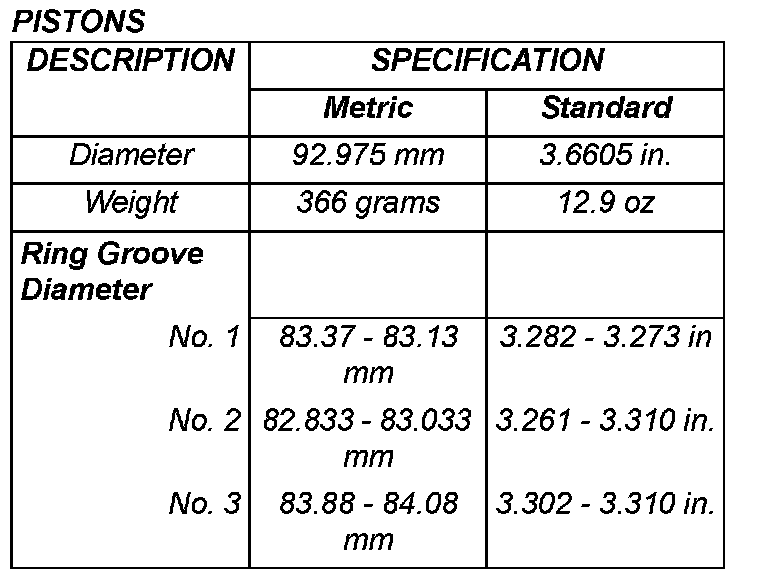

PISTONS

PISTONS:

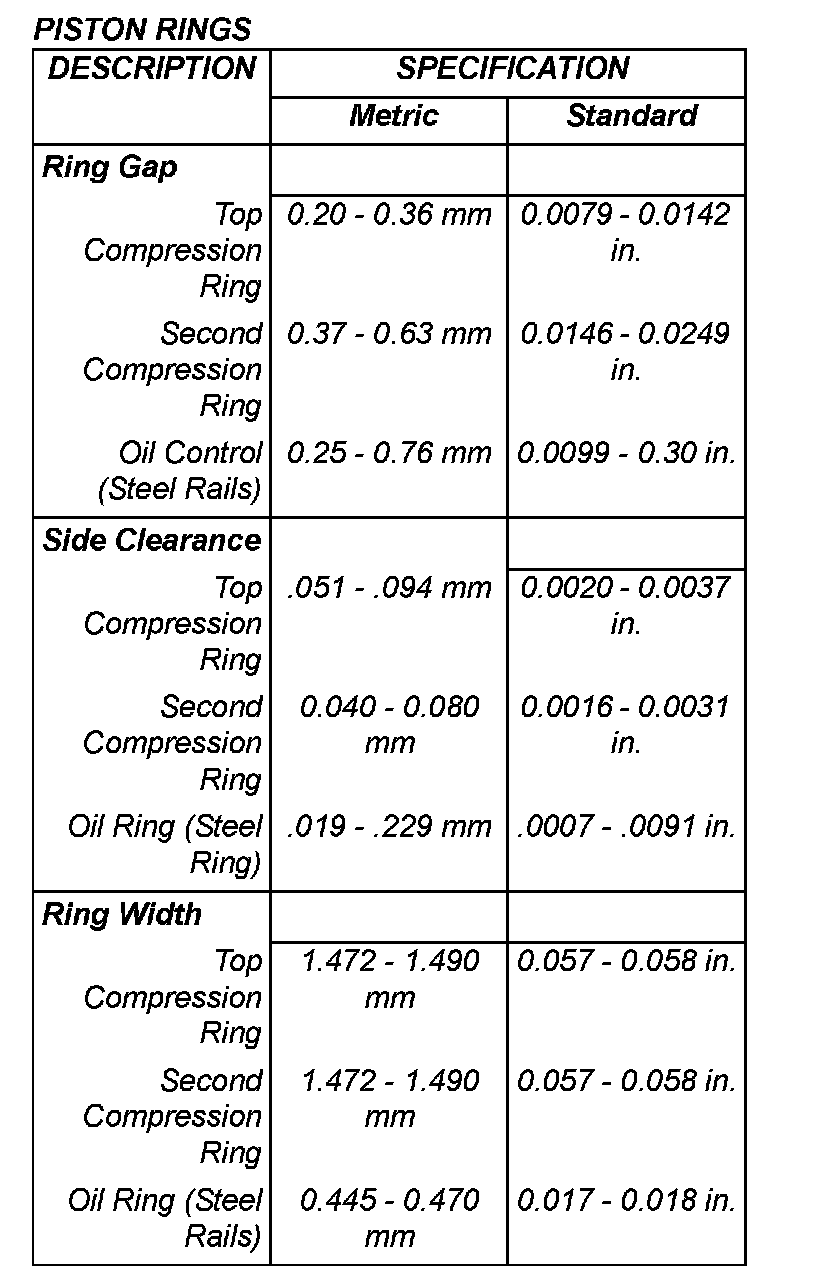

PISTON RINGS

PISTON RINGS:

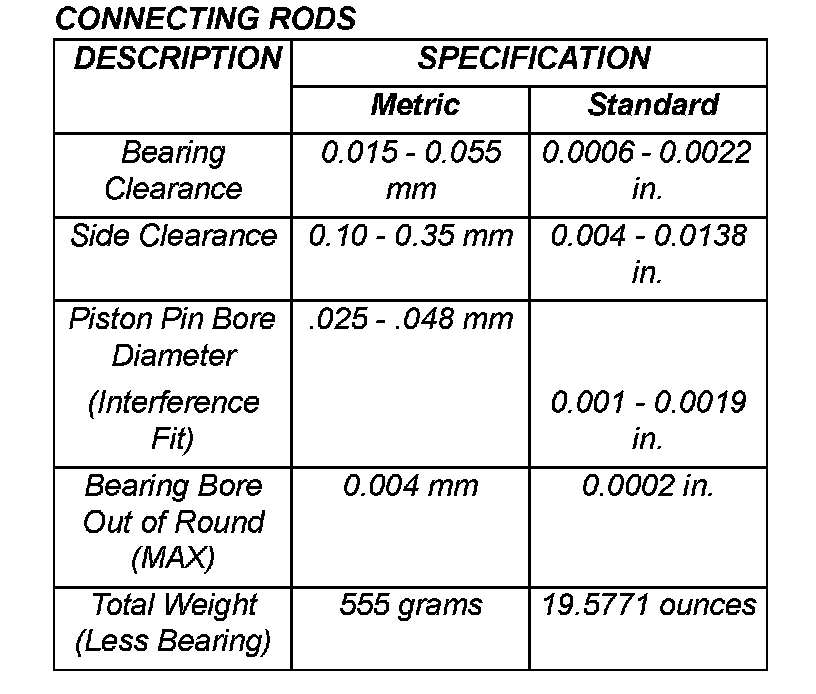

CONNECTING RODS

CONNECTING RODS:

Connecting Rod Cap Bolts 27 Nm (20 ft. lbs.)
PLUS 90° TURN

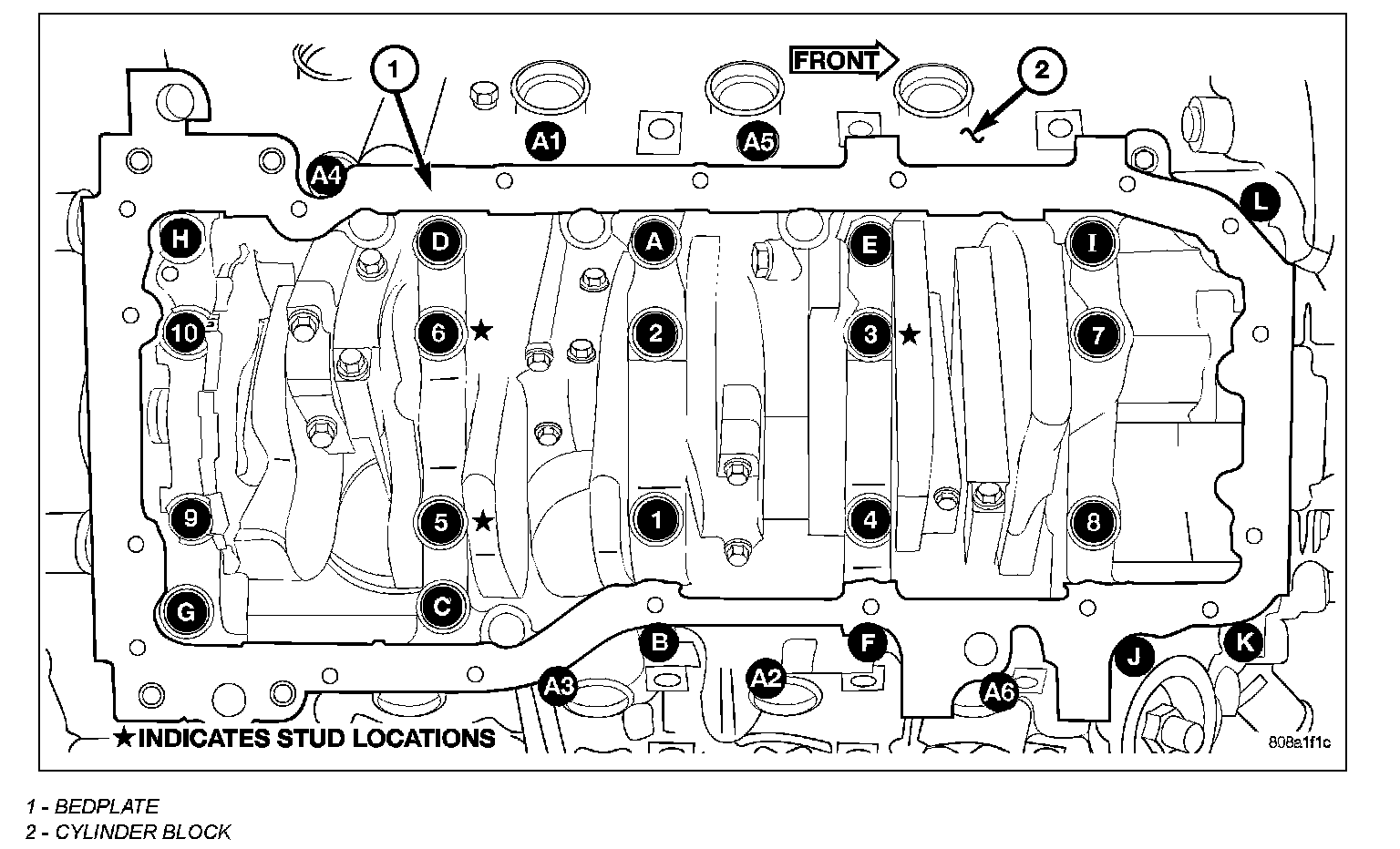

CRANKSHAFT

CRANKSHAFT:

Bolts A - L 54 Nm (40 ft. lbs.)
Bolts 1-10 2.8 Nm (25 in. lbs.)
Bolts 1-10 additional 90°
Bolts A1-A6 27 Nm (20 ft. lbs.)





Crankshaft Damper Bolt 175 Nm (130 ft. lbs.)
