Programming and Relearning

ON-VEHICLE SERVICE

CONFIGURATION FUNCTION

ADJUSTMENT BY OPERATING THE MULTI-CENTER DISPLAY [VEHICLES WITH MIDDLE-GRADE MULTI-CENTER DISPLAY ONLY]

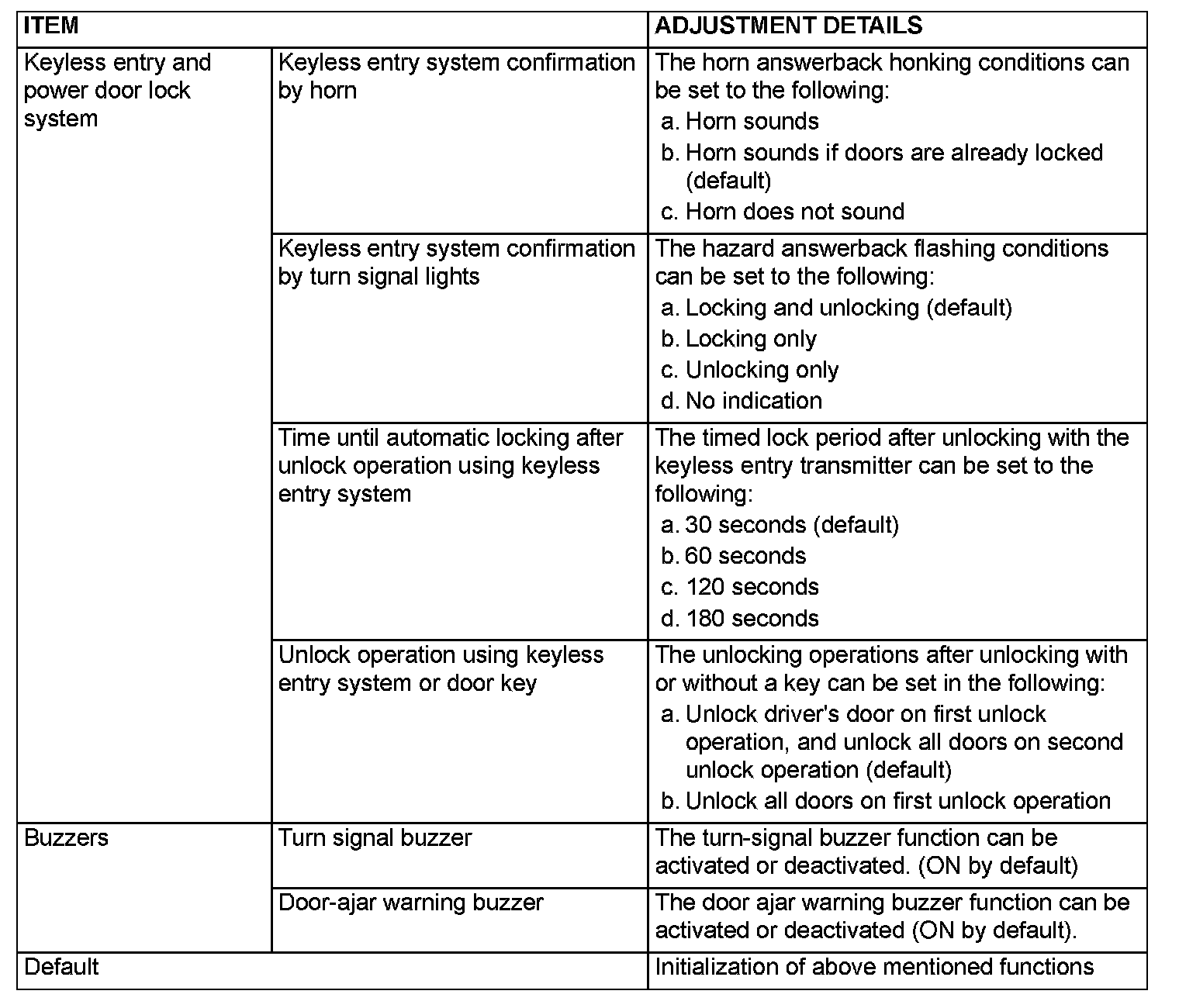

The following function and system customization are possible by using the multi center display.

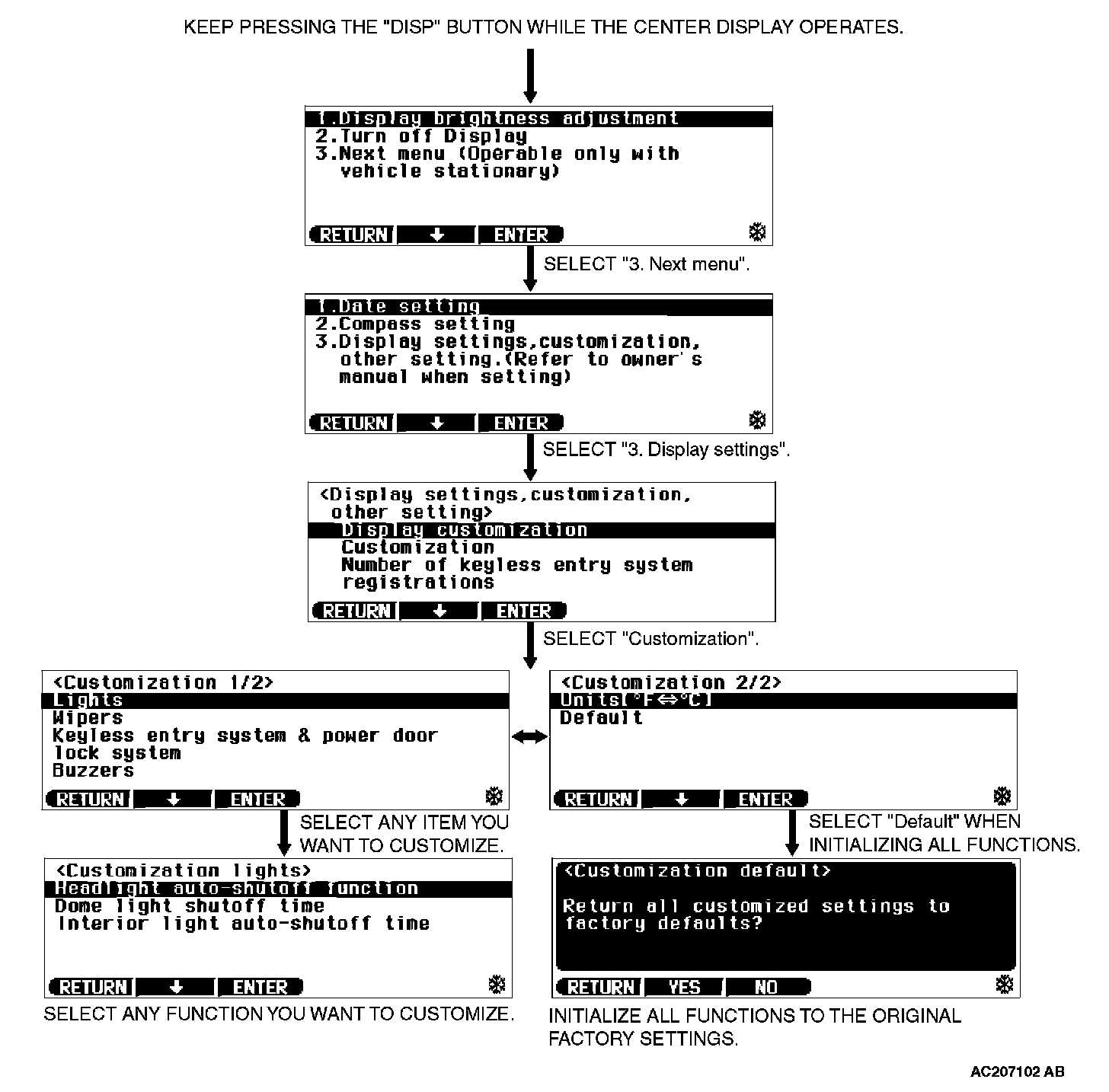

Keep Pressing The "disp" Button While The Center Display Operates. (Part 1):

Keep Pressing The "disp" Button While The Center Display Operates (Part 2):

Keep Pressing The "disp" Button While The Center Display Operates (Part 3):

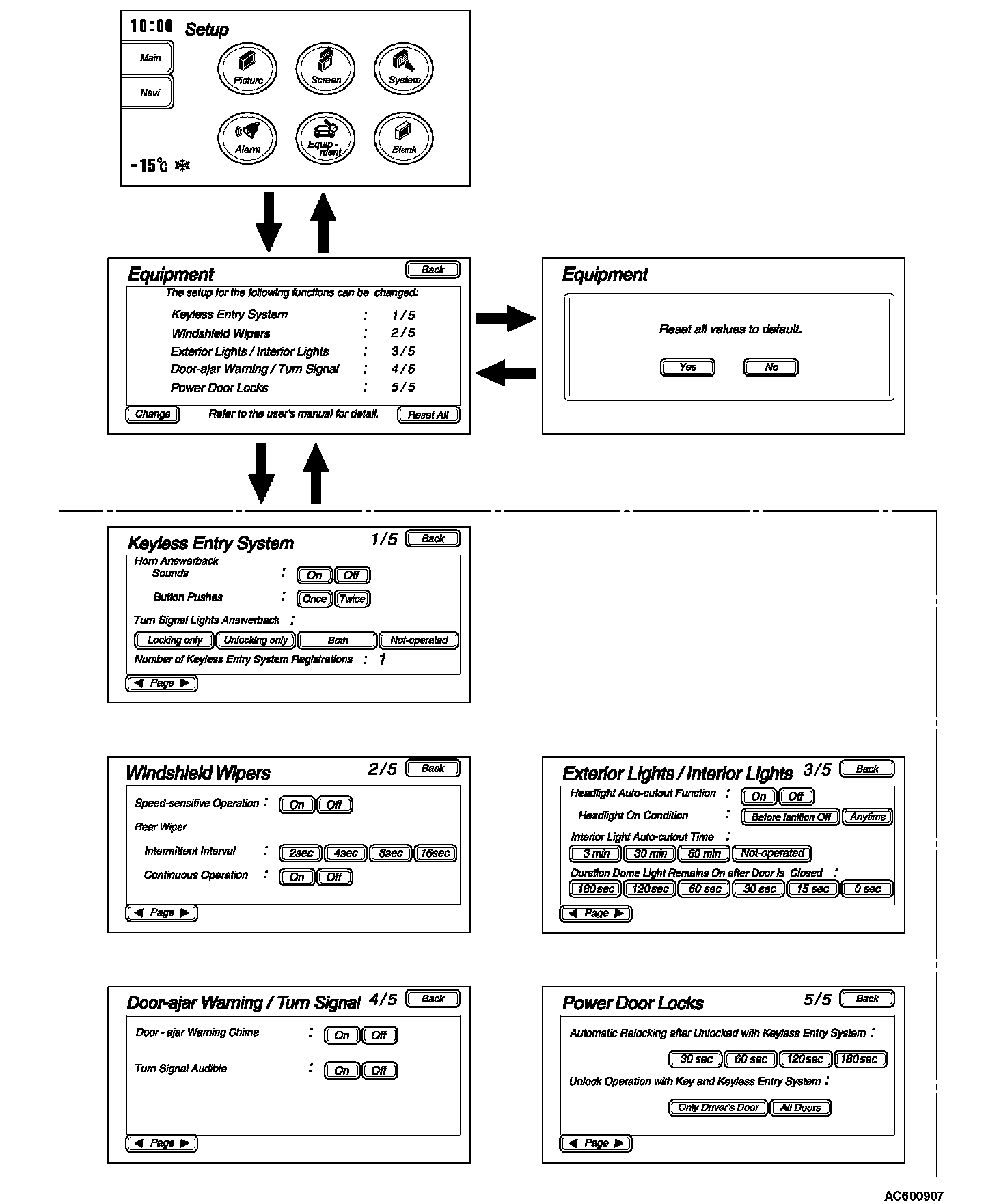

ADJUSTMENT BY OPERATING THE MULTI-CENTER DISPLAY [VEHICLES WITH MITSUBISHI MULTI COMMUNICATION SYSTEM]

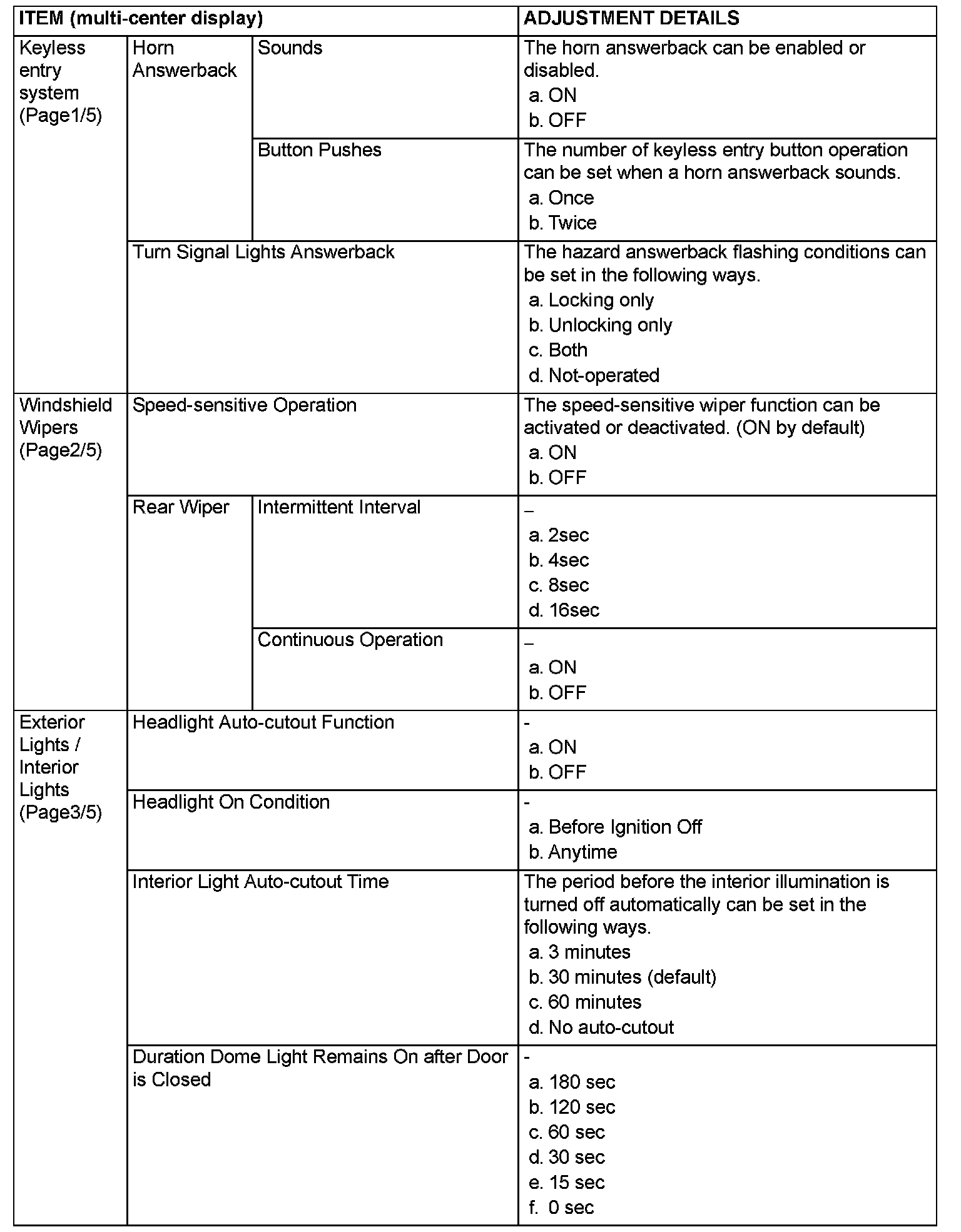

The following function and system customization are possible by using the multi-center display.
