Data List Reference Table

[DATA LIST REFERENCE TABLE]

The table below shows the service data and their normal condition, which are displayed during the "Data List."

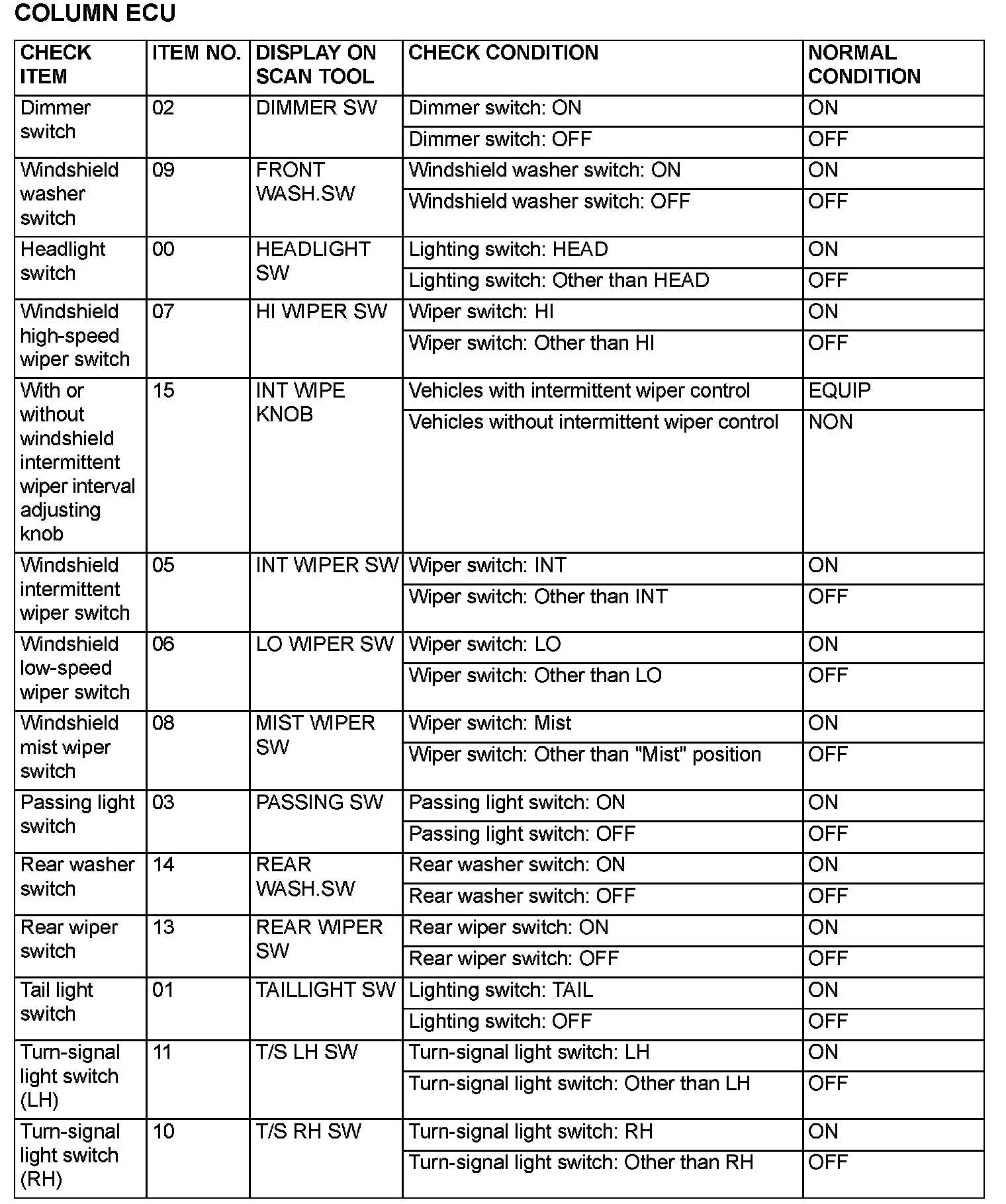

Data List Reference Table - COLUMN-ECU:

Data List Reference Table - ETACS:

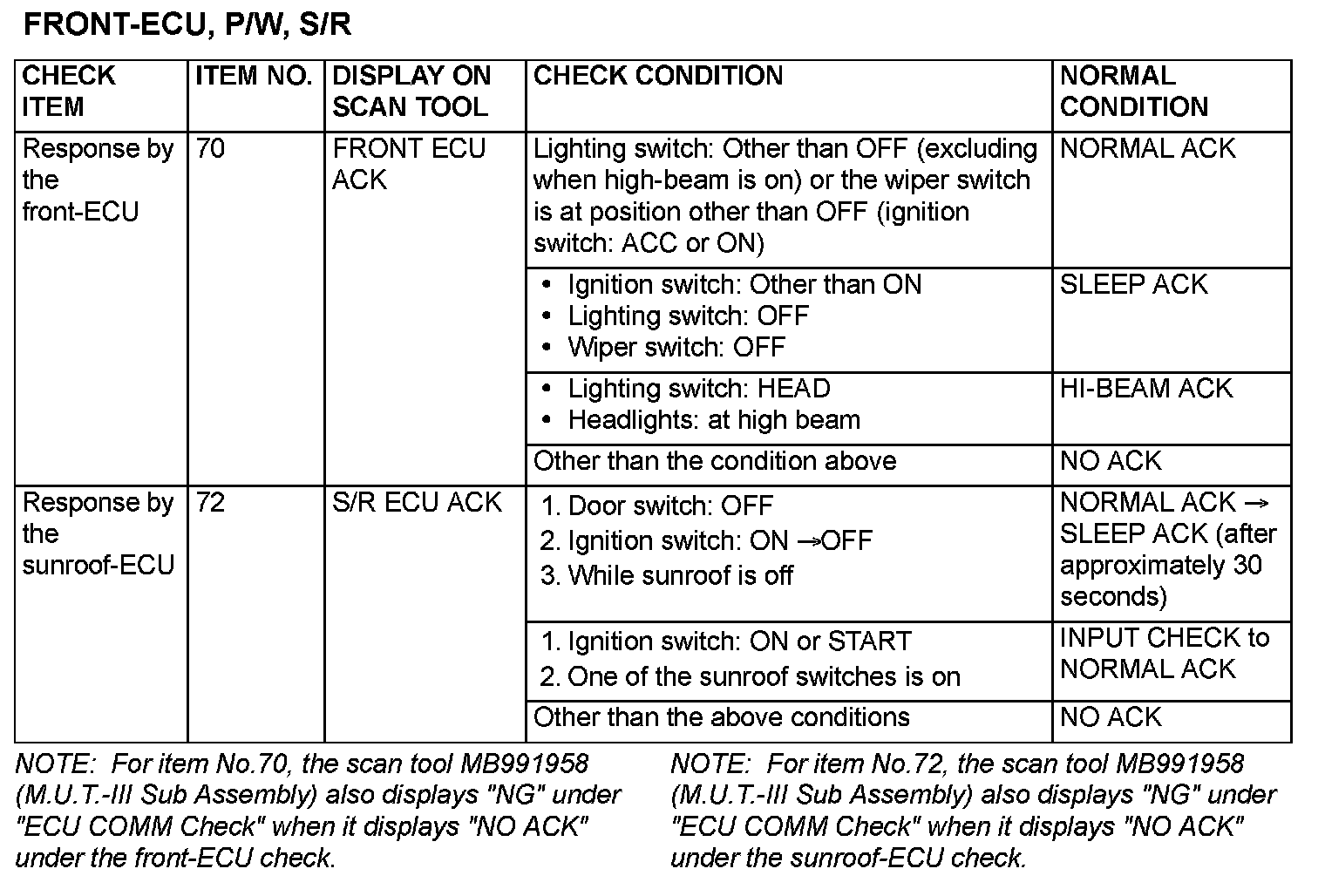

Data List Reference Table - Front-ECU, P/W, S/R:
