Disassembly and Assembly

DISASSEMBLY AND ASSEMBLY

[F4A5A]

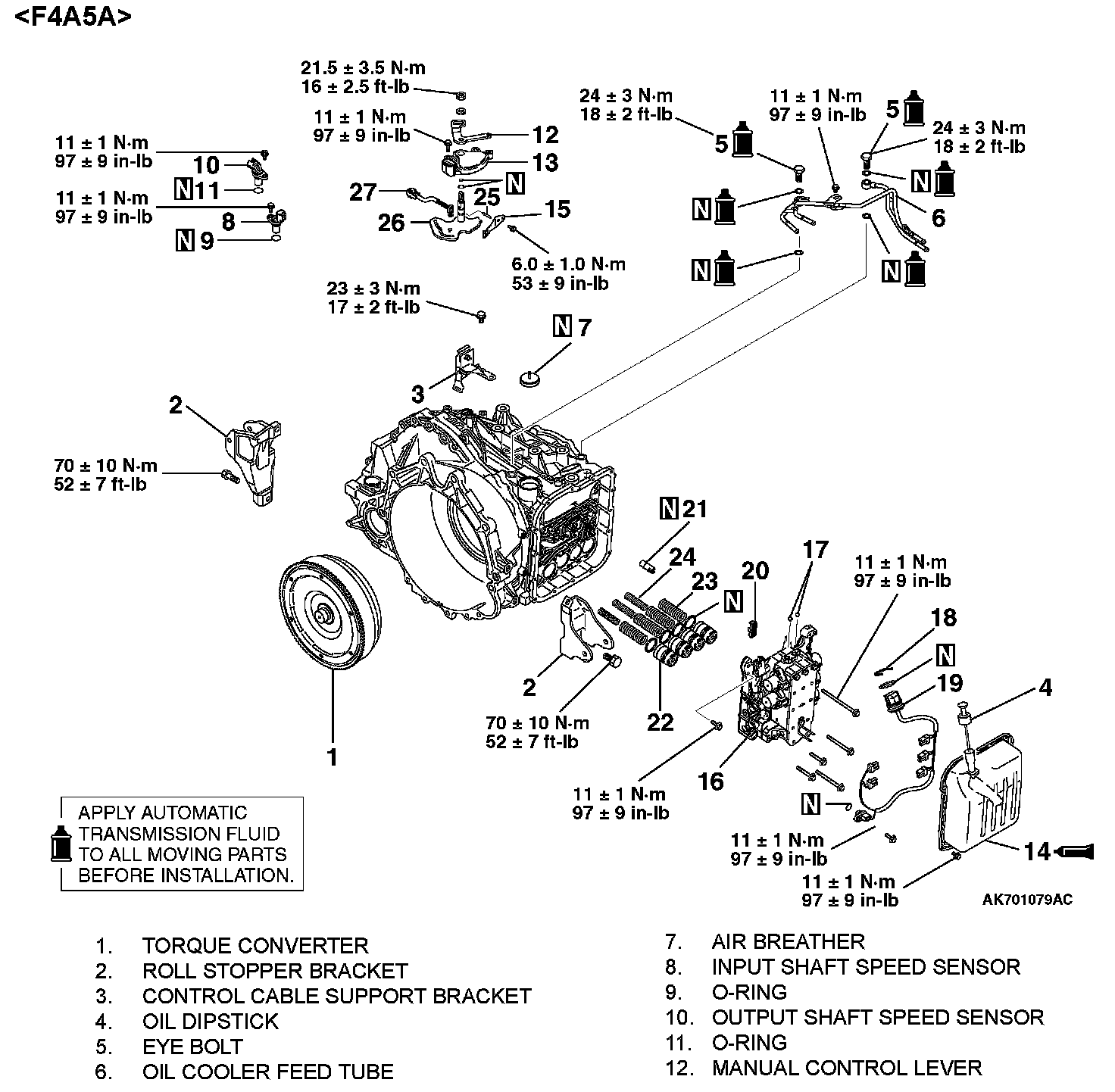

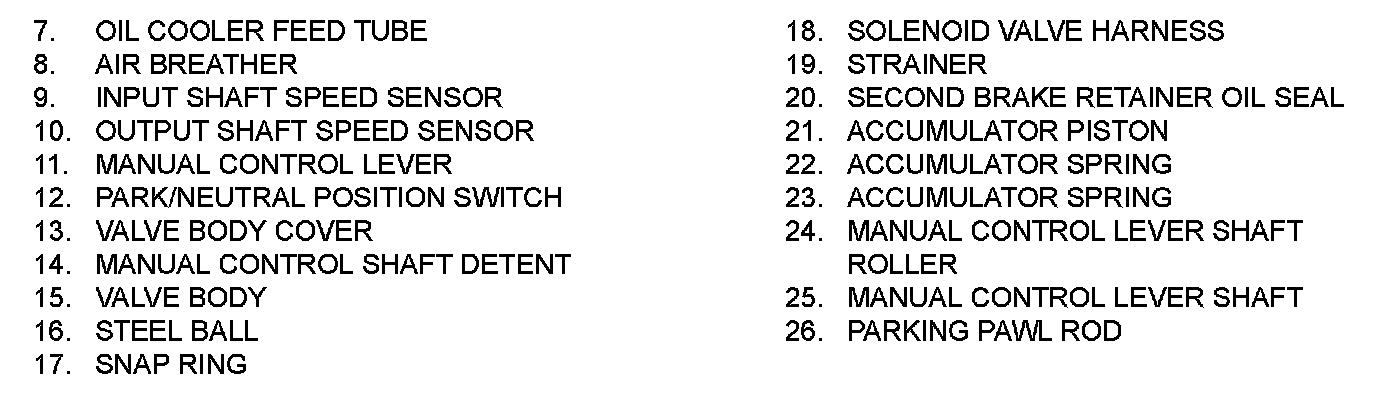

F4A5A Transaxle Exploded View (Part 1):

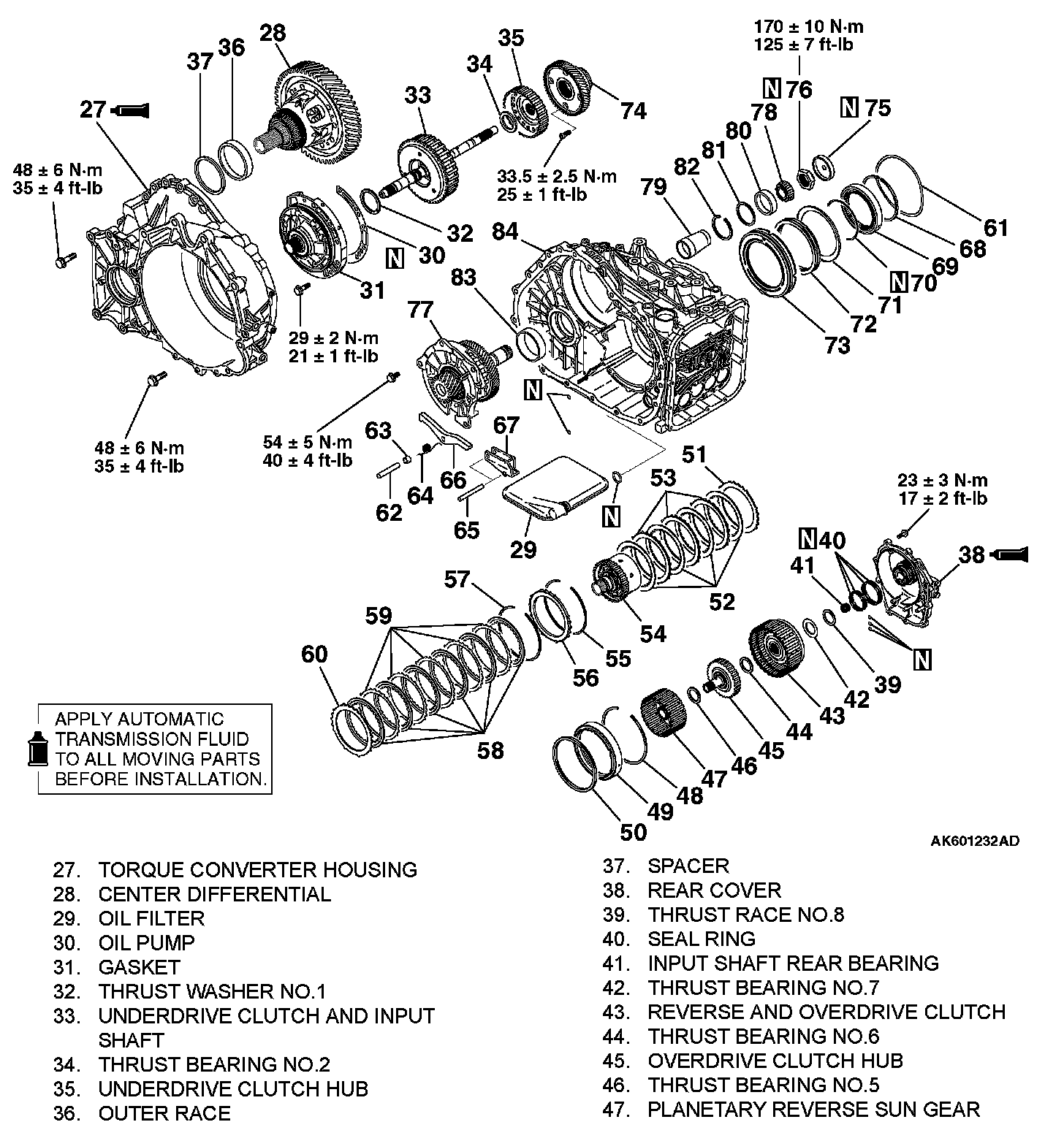

F4A5A Transaxle Exploded View (Part 2):

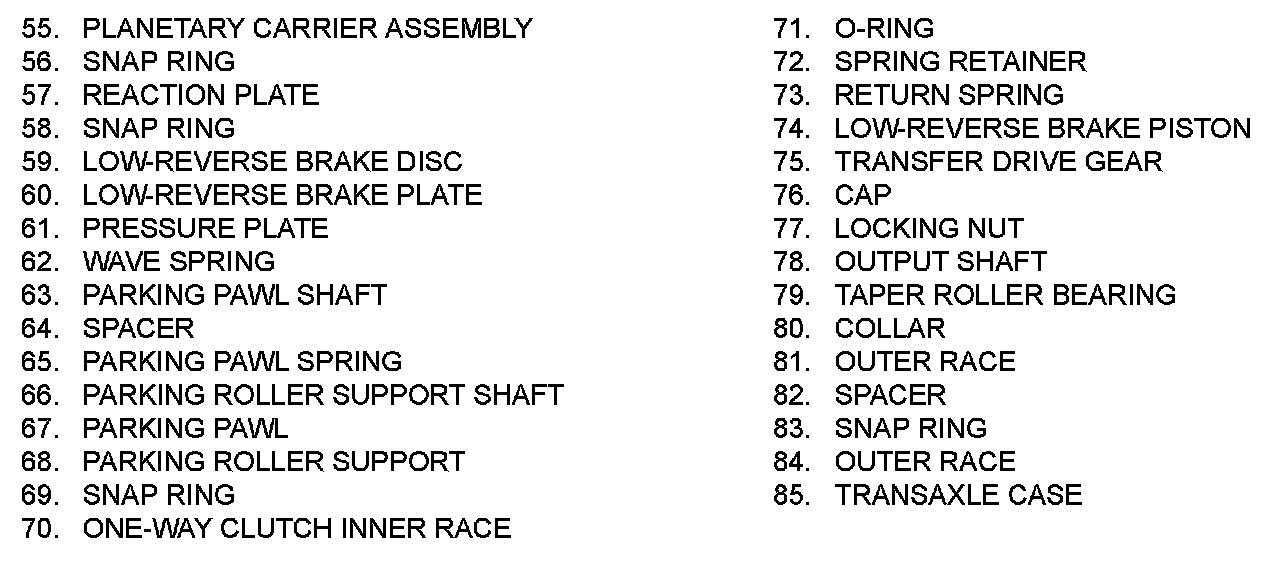

F4A5A Transaxle Exploded View (Part 3):




F4A5A Transaxle Exploded View (Part 4):





[W4A5A]

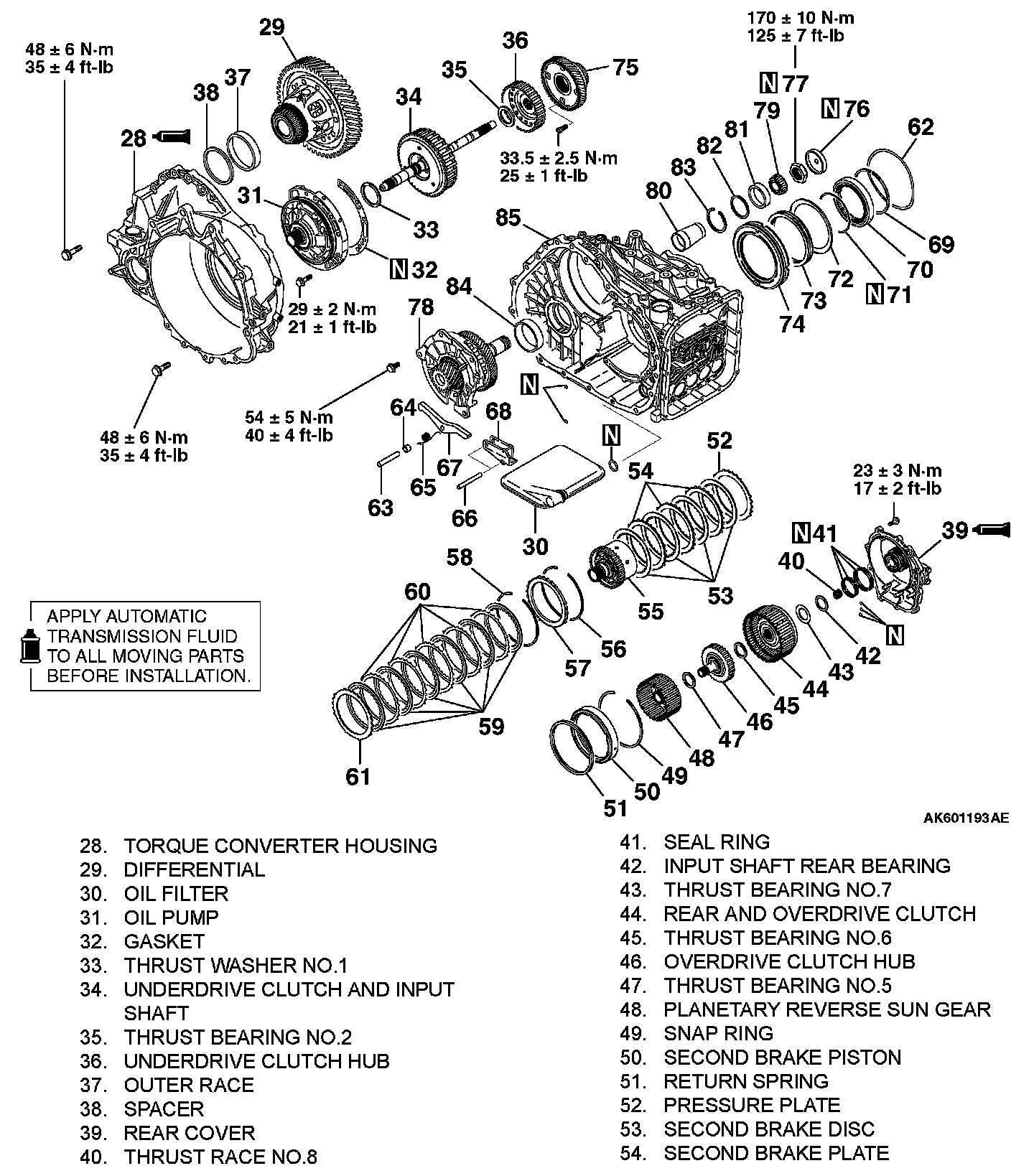

W4A5A Transaxle Exploded View (Part 1):

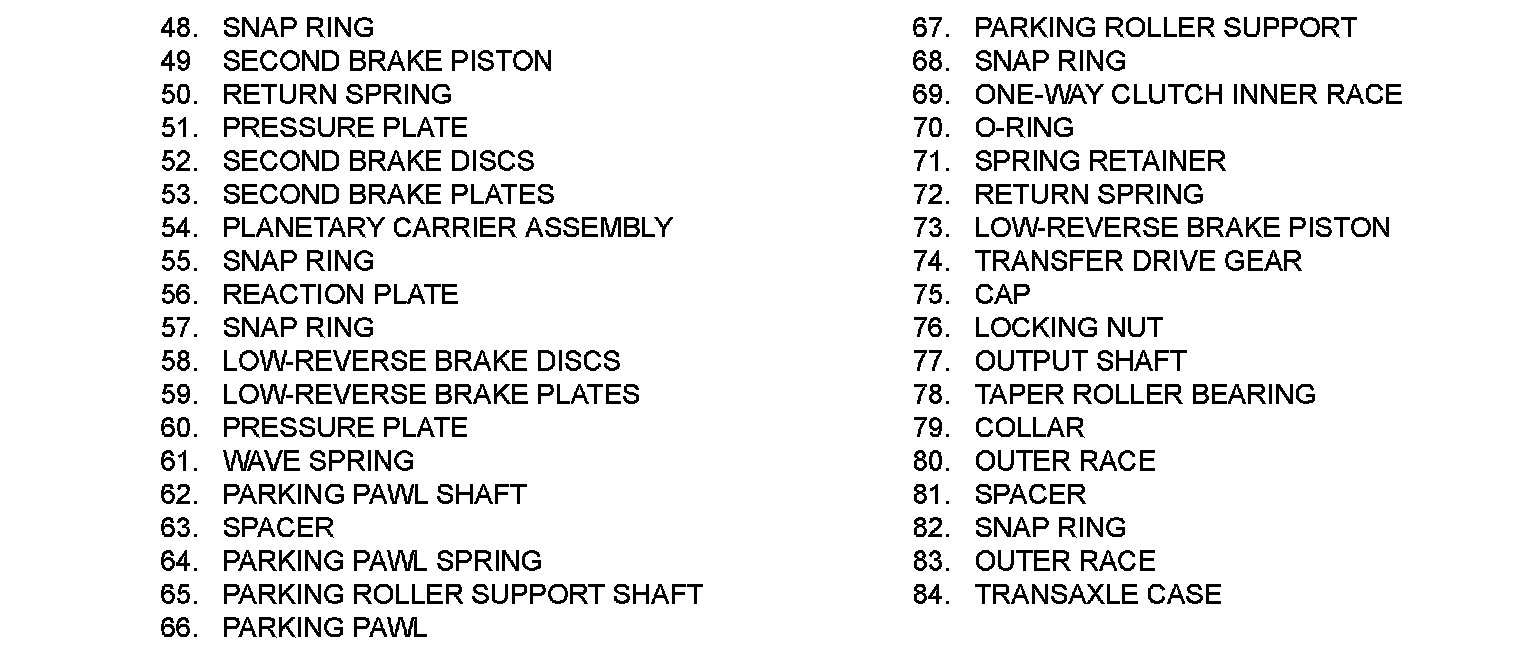

W4A5A Transaxle Exploded View (Part 2):




W4A5A Transaxle Exploded View (Part 3):




W4A5A Transaxle Exploded View (Part 4):
