Actuator Test Reference Table
ACTUATOR
TEST REFERENCE TABLE

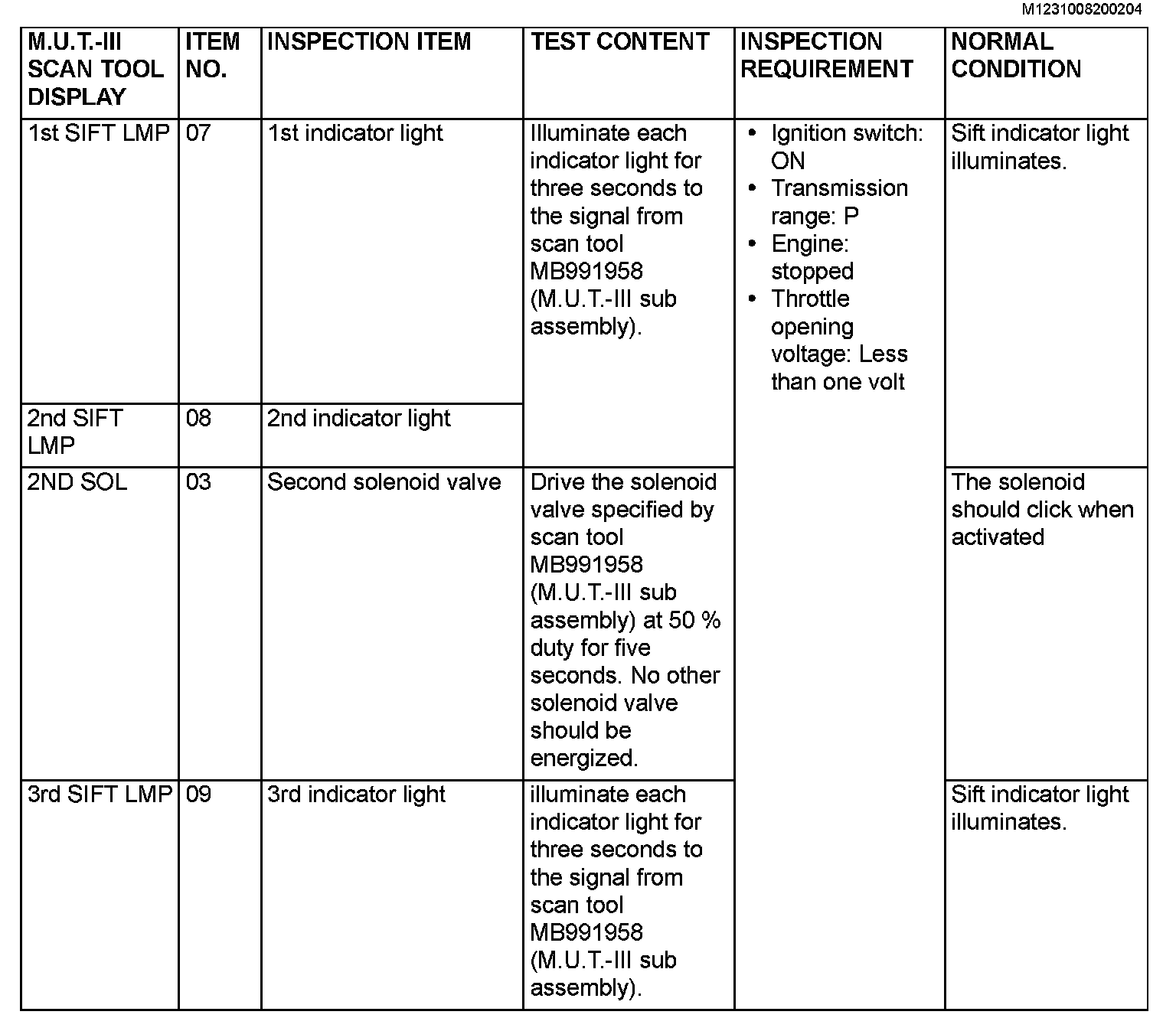

ACTUATOR TEST REFERENCE TABLE (Part 1):

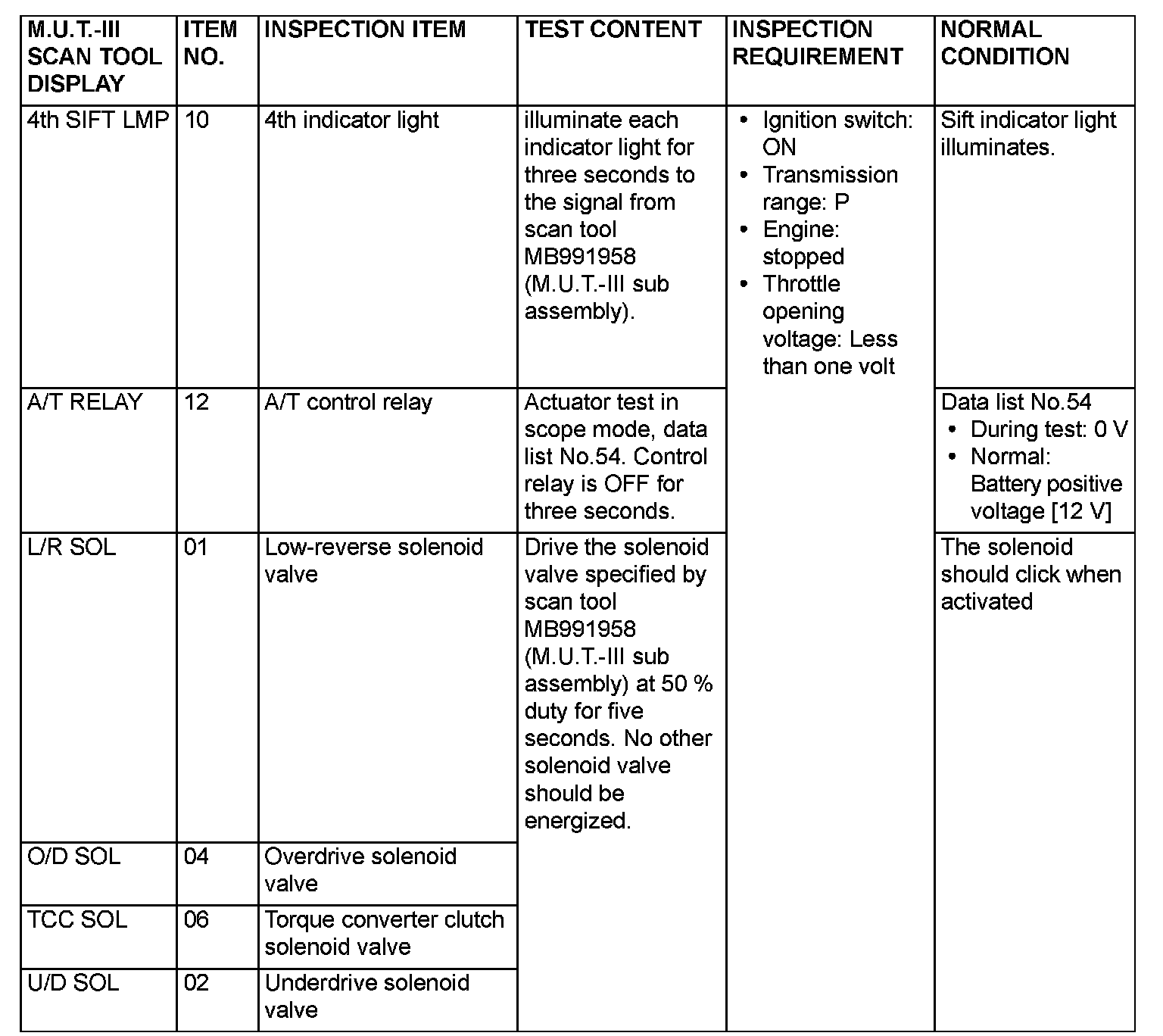

ACTUATOR TEST REFERENCE TABLE (Part 2):
