Repair and Diagnosis: Application and ID

VEHICLE IDENTIFICATION

MODELS

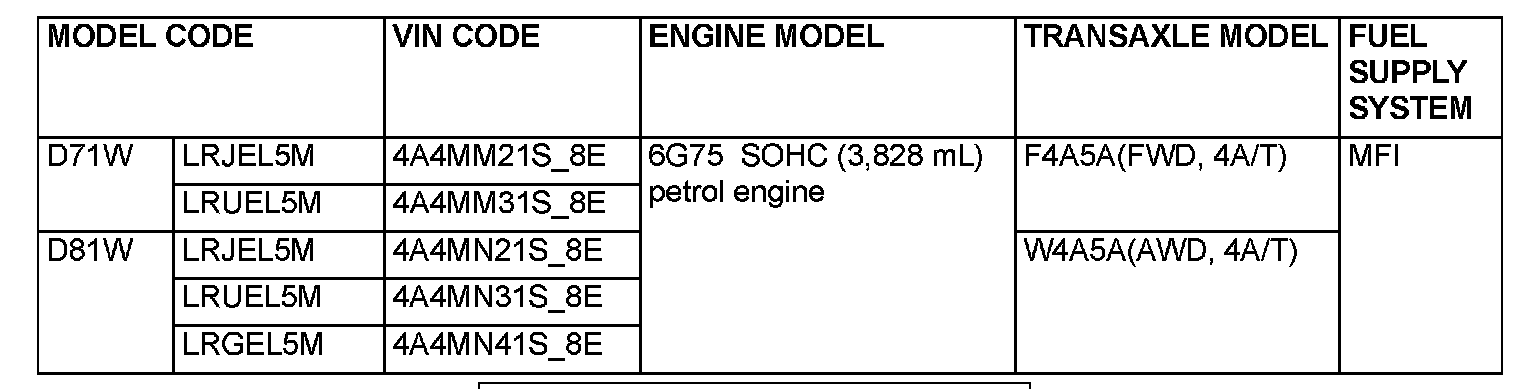

VEHICLES FOR USA

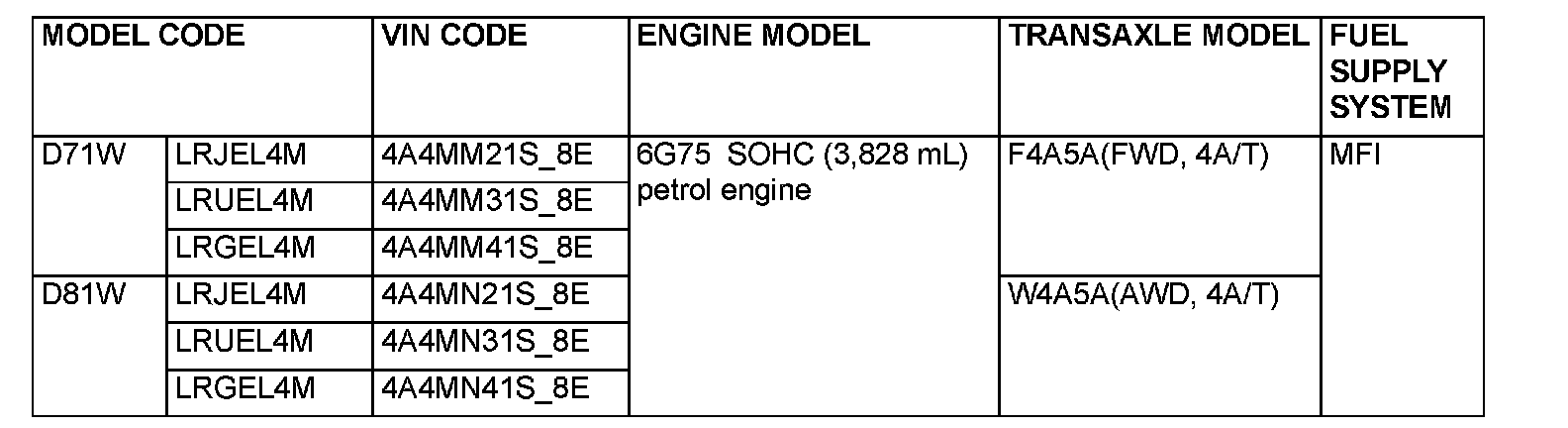

VEHICLES FOR CANADA





VEHICLE IDENTIFICATION CODE PLATE

VEHICLES IDENTIFICATION NUMBER (VIN) PLATE

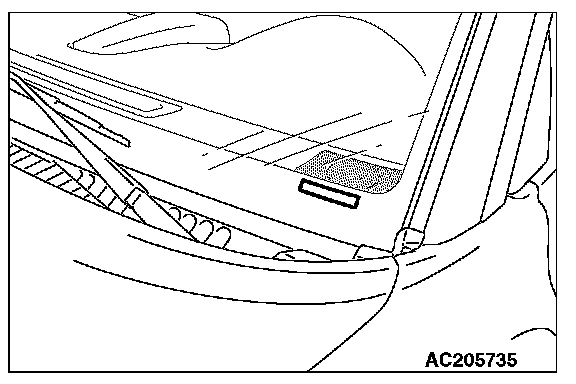

The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.

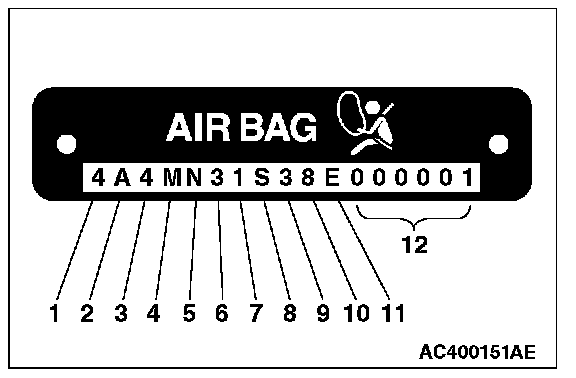

CODE CHART

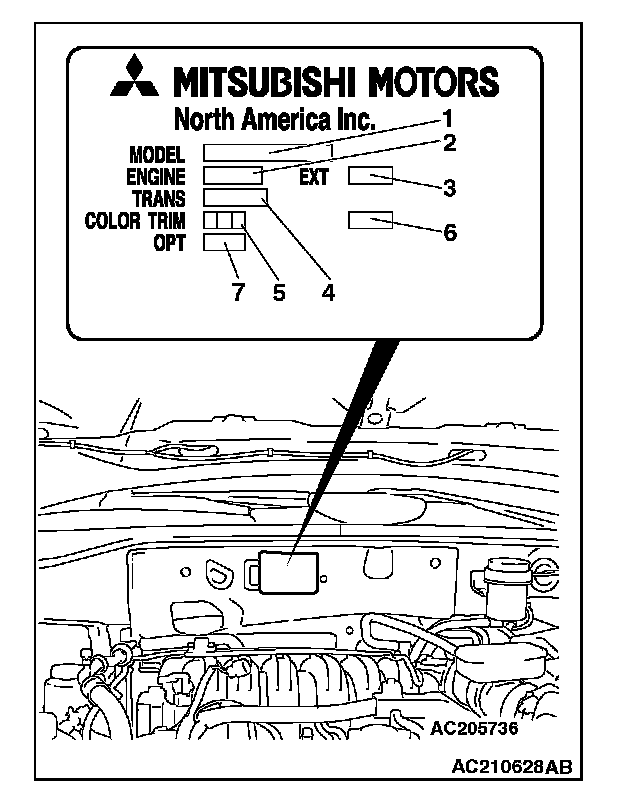

INFORMATION CODE PLATE





The information code plate is riveted onto the cowl top outer panel in the engine compartment.

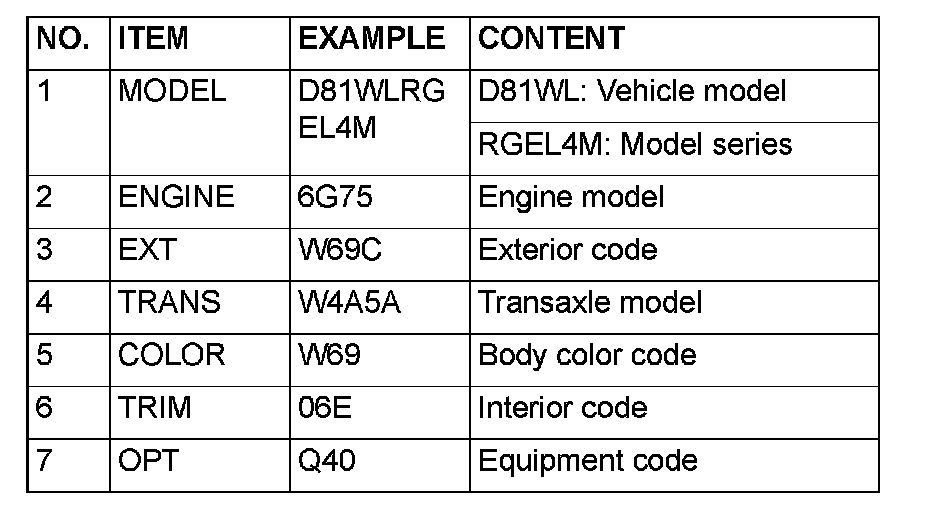

CODE CHART

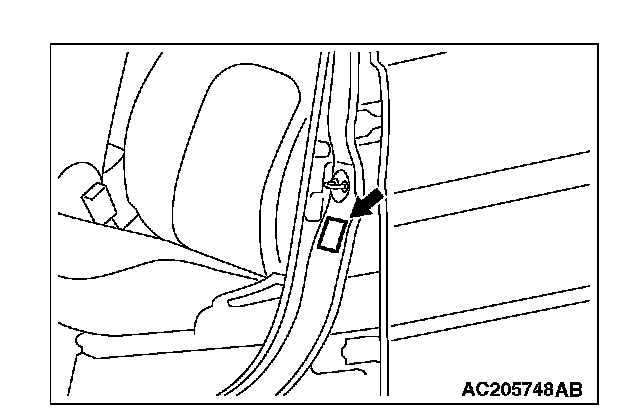

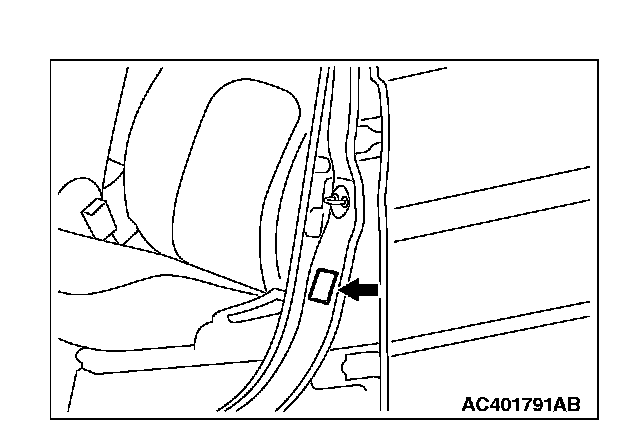

CERTIFICATION LABEL





The certification label attached to the face of the left door inside sill.
This label indicates the month and year of manufacture, Gross Vehicle Weight Rating (GVWR), front and rear Gross Axle Weight Rating (GAWR), and Vehicle Identification Number (VIN).

NATIONAL SAFETY MARK [VEHICLES FOR CANADA]





The national safety mark is located on the inside sill of the driver's door.

TIRE AND LOADING INFORMATION PLACARD





The tire and loading information placard is located on the inside sill of the driver's door.

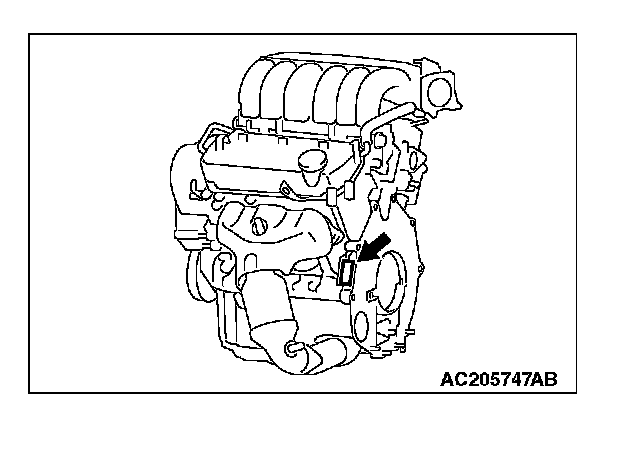

ENGINE MODEL STAMPING





The engine model is stamped on the cylinder block.

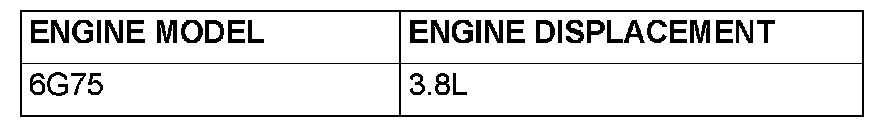

The engine model number is as shown as follow.





The engine serial number is stamped near the engine model number.
