VALVE BODY

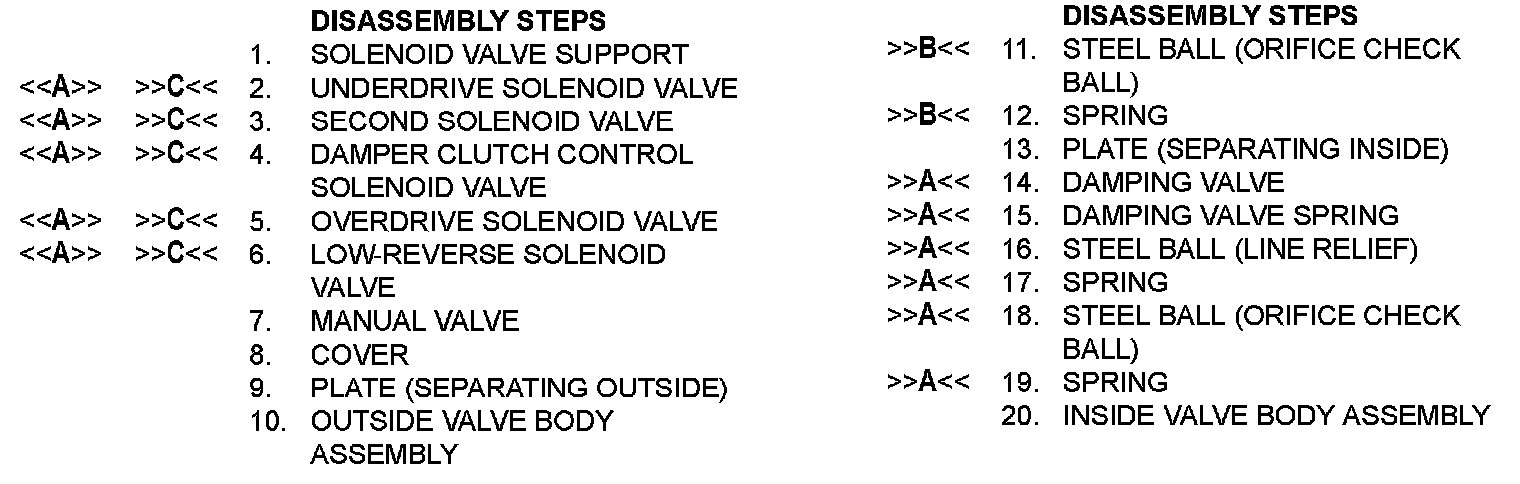

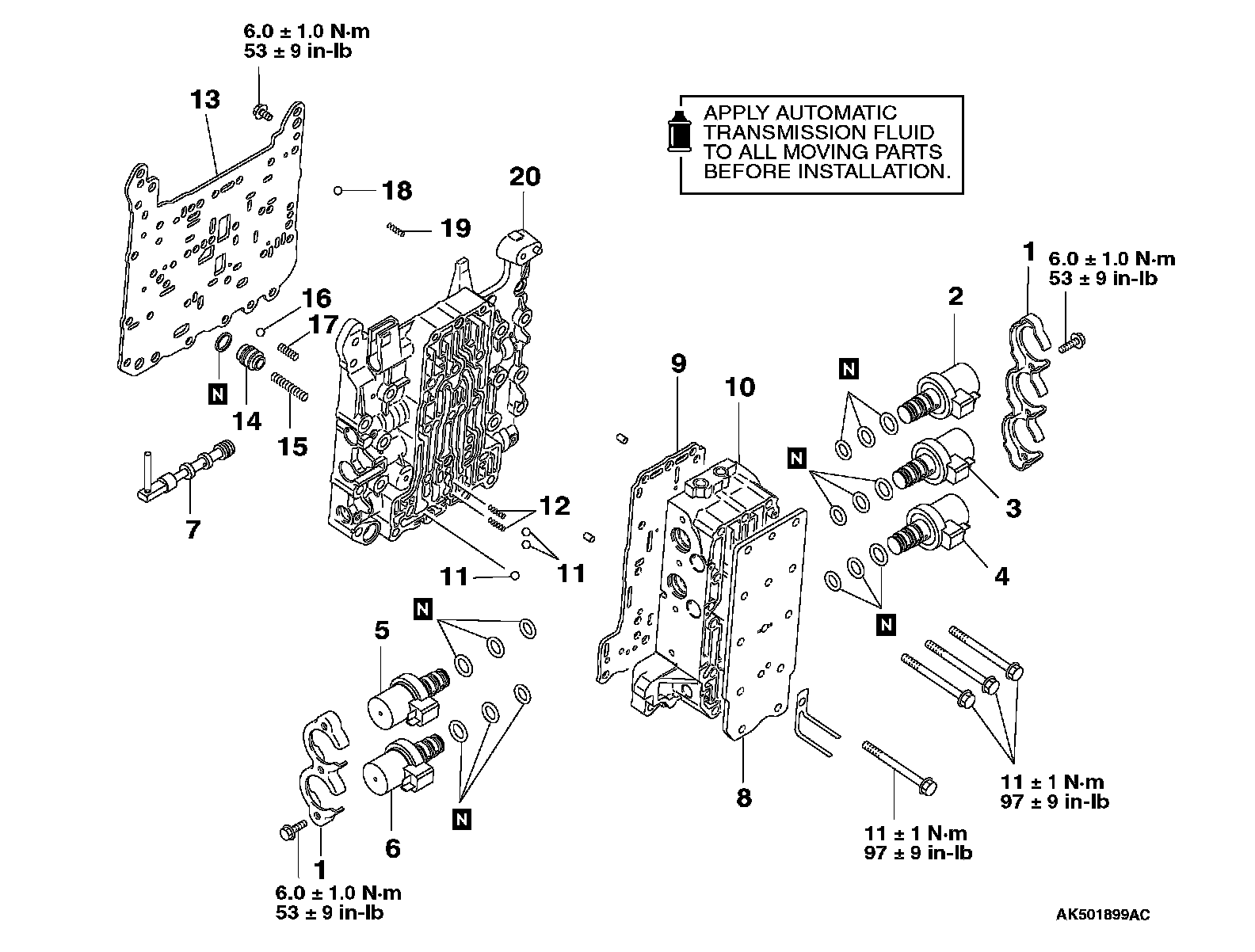

Disassembly Steps 1-20:

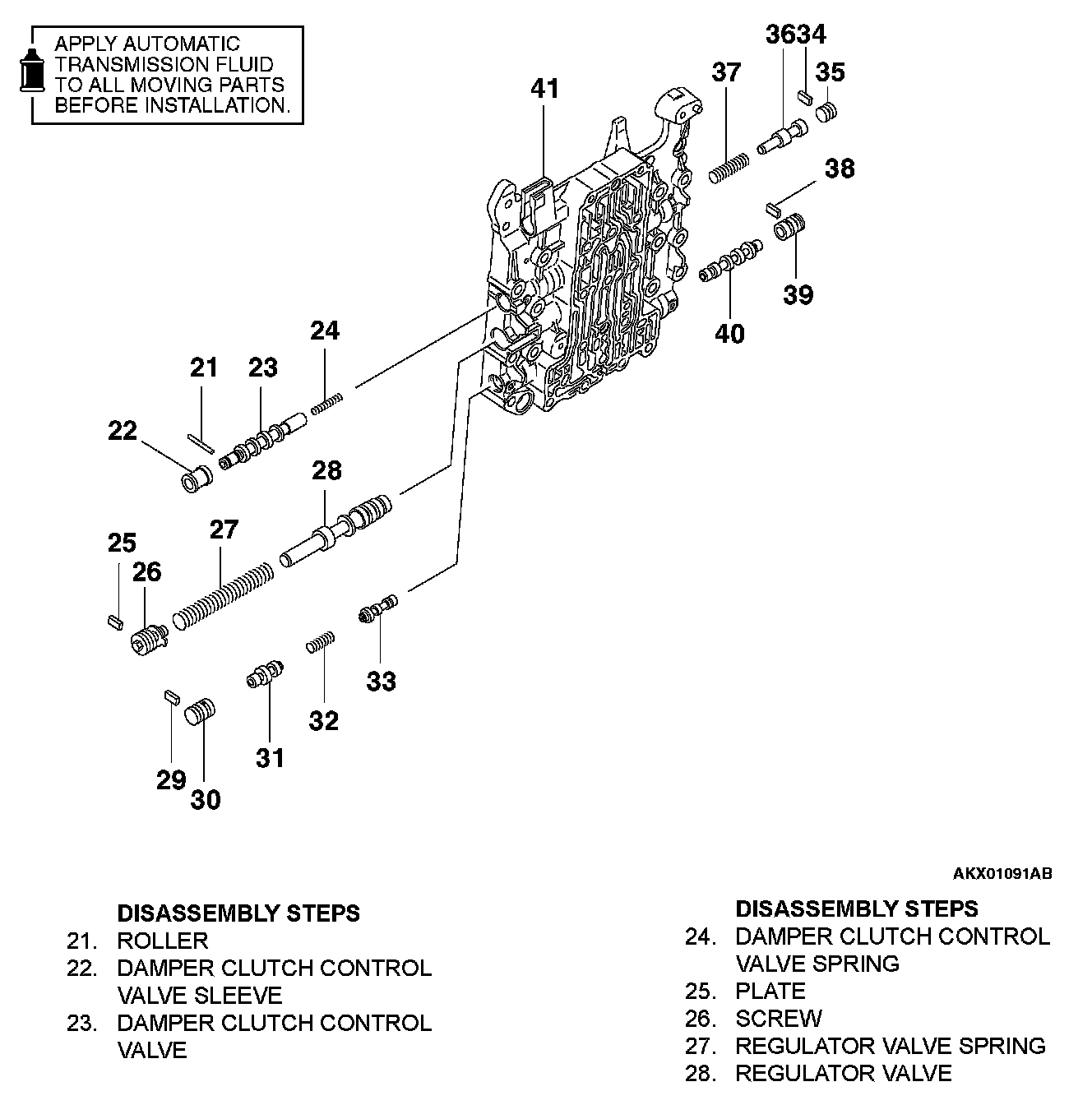

Disassembly Steps 21-28:
Disassembly Steps 29-41:

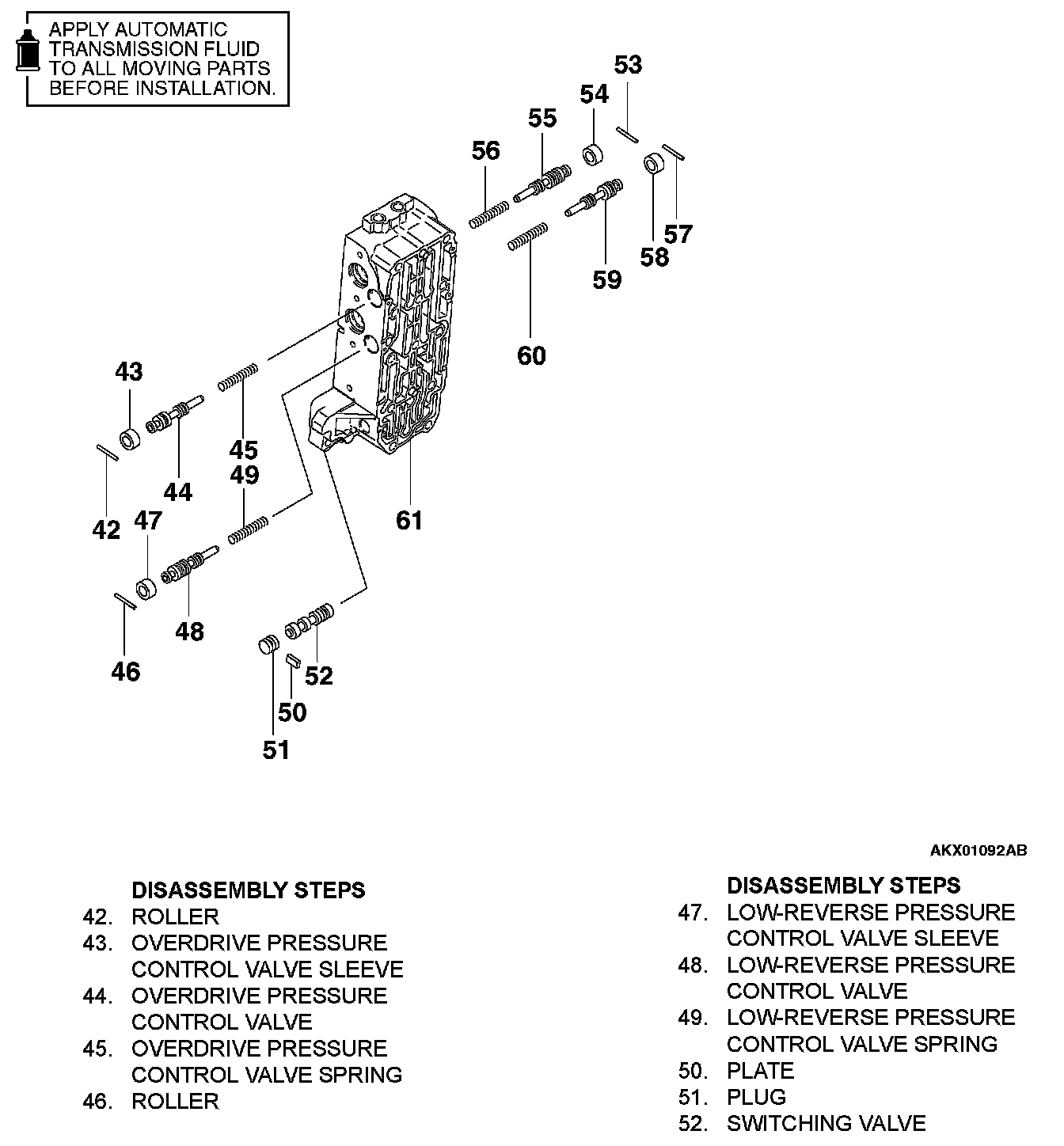

Disassembly Steps 42-52:
Disassembly Steps 53-61:
