Generator and Ignition System

GENERATOR AND IGNITION SYSTEM

REMOVAL AND INSTALLATION

Removal Steps 1-16:





Required Special Tools:
^ MB991398: Spark Plug Wrench
^ MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

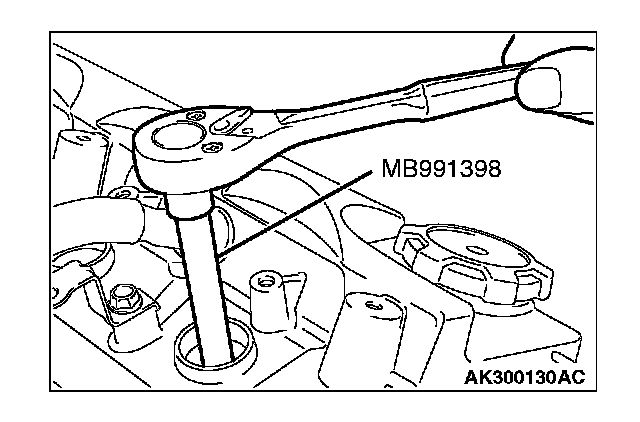

[[A]] SPARK PLUG REMOVAL





Using special tool MB991398, remove the spark plug.

[[B]] CAMSHAFT POSITION SENSING CYLINDER REMOVAL





1. Using special tool MD998781, hold the drive plate.
2. Remove the camshaft position sensing cylinder.

INSTALLATION SERVICE POINT

]]A[[ CAMSHAFT POSITION SENSING CYLINDER INSTALLATION





1. Using special tool MD998781, hold the drive plate.
2. Tighten the camshaft position sensing cylinder to the specified torque.

Tightening torque: 22 ± 4 Nm (17 ± 2 ft-lb)

]]B[[ CAMSHAFT POSITION SENSOR SUPPORT INSTALLATION





Apply a 3 mm (0.12 inch) bead of sealant (MITSUBISHI Genuine Part number MD970389) in the groove as shown.

]]C[[ SPARK PLUG INSTALLATION





Using special tool MB991398, tighten the spark plug to the specified torque.

Tightening torque: 25 ± 5 Nm (19 ± 3 ft-lb)
