Maintenance Indicator Reset

Maintenance Reminder

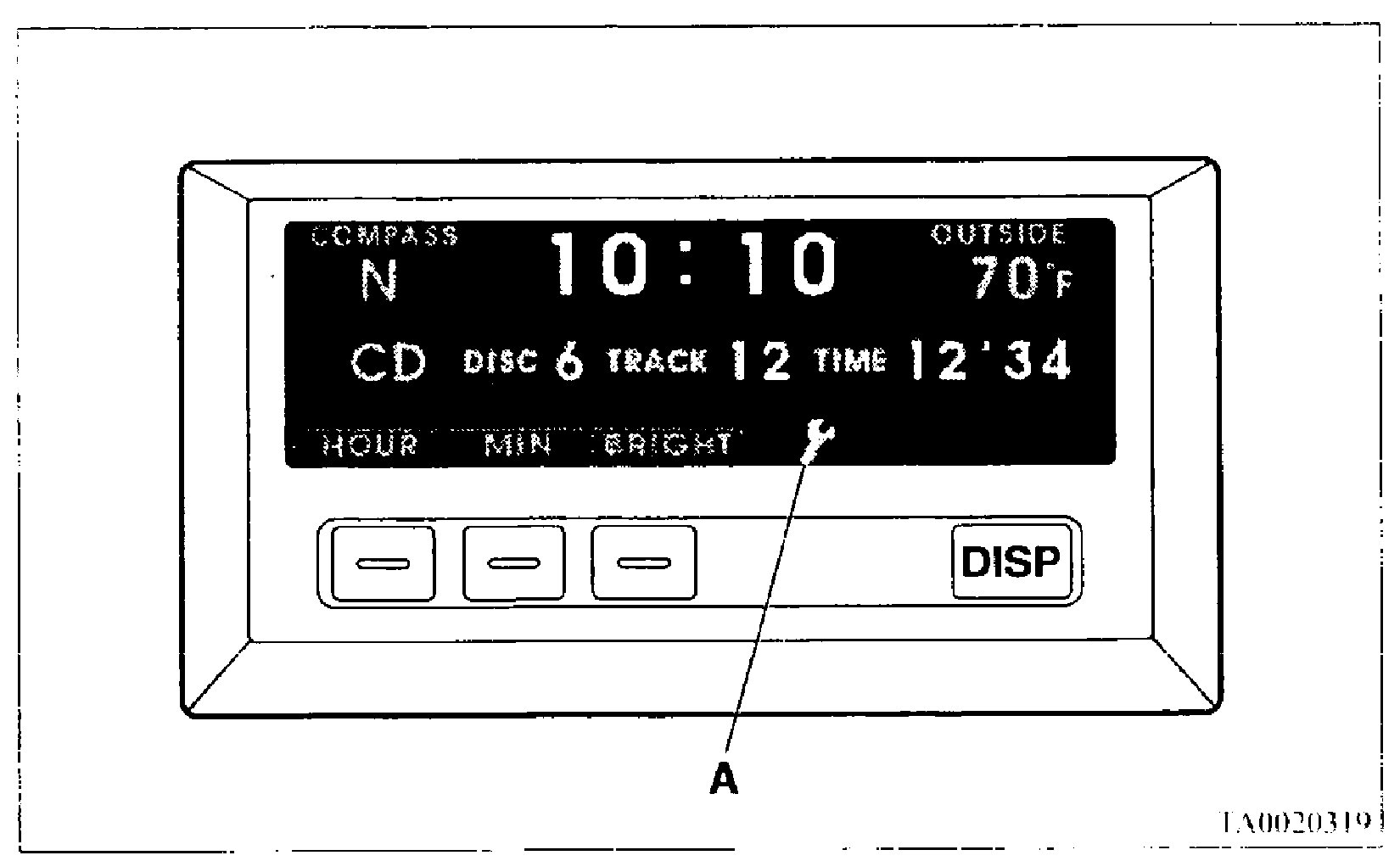

When the distance driven reaches a distance that has been set for scheduled maintenance, the maintenance reminder (A) is shown to indicate that the time for maintenance has come.






NOTE:

- The maintenance reminder appears when the distance driven reaches the distance that has been set for any one of the maintenance items.
- When the monitor has been set to give no display, the maintenance reminder is not shown when the distance driven reaches a distance that has been set.


Checking and setting maintenance information

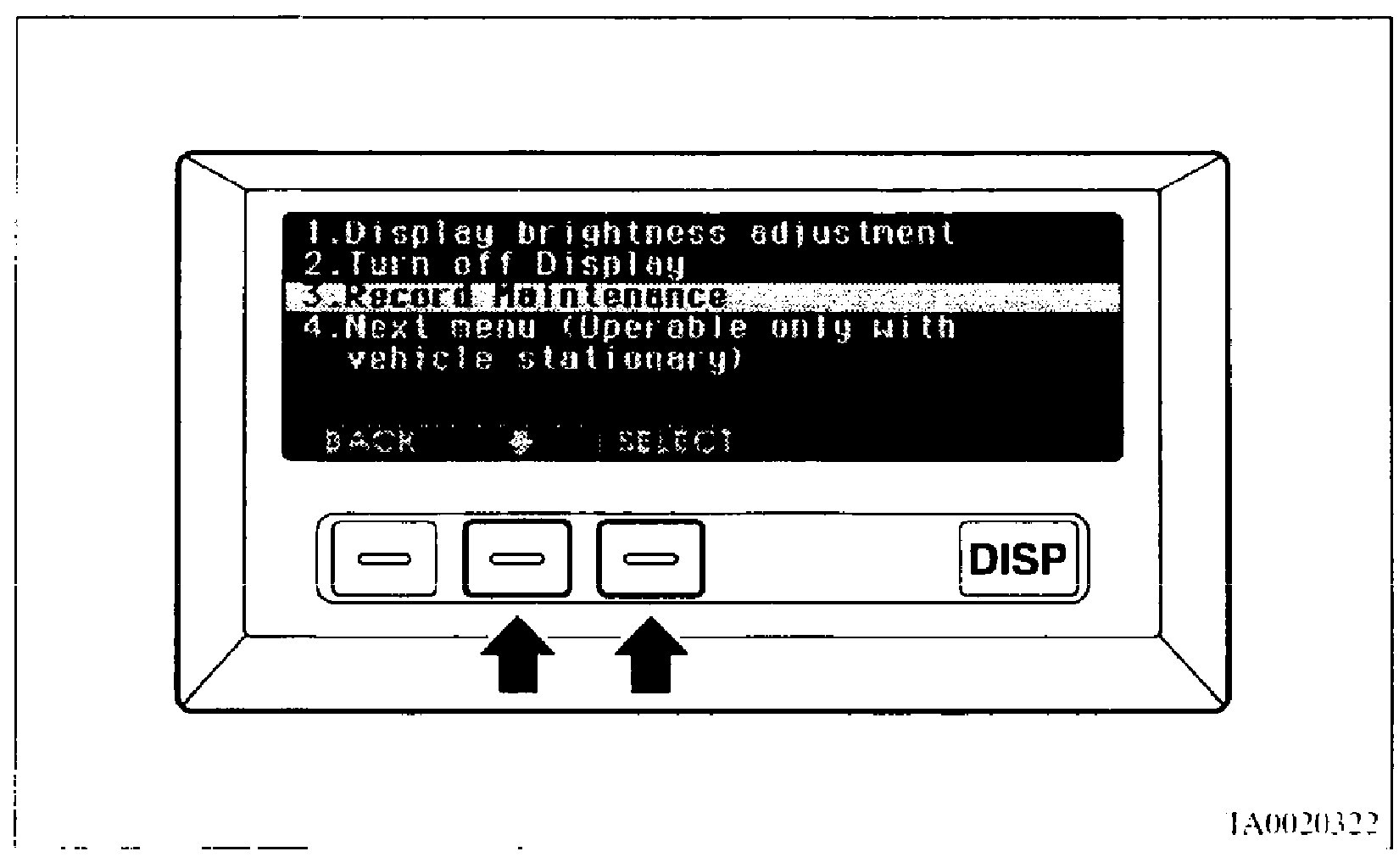

1. Display "3 Record Maintenance" on the monitor in accordance with "Basic Operation", align the cursor with it, and press the "SELECT" function button.

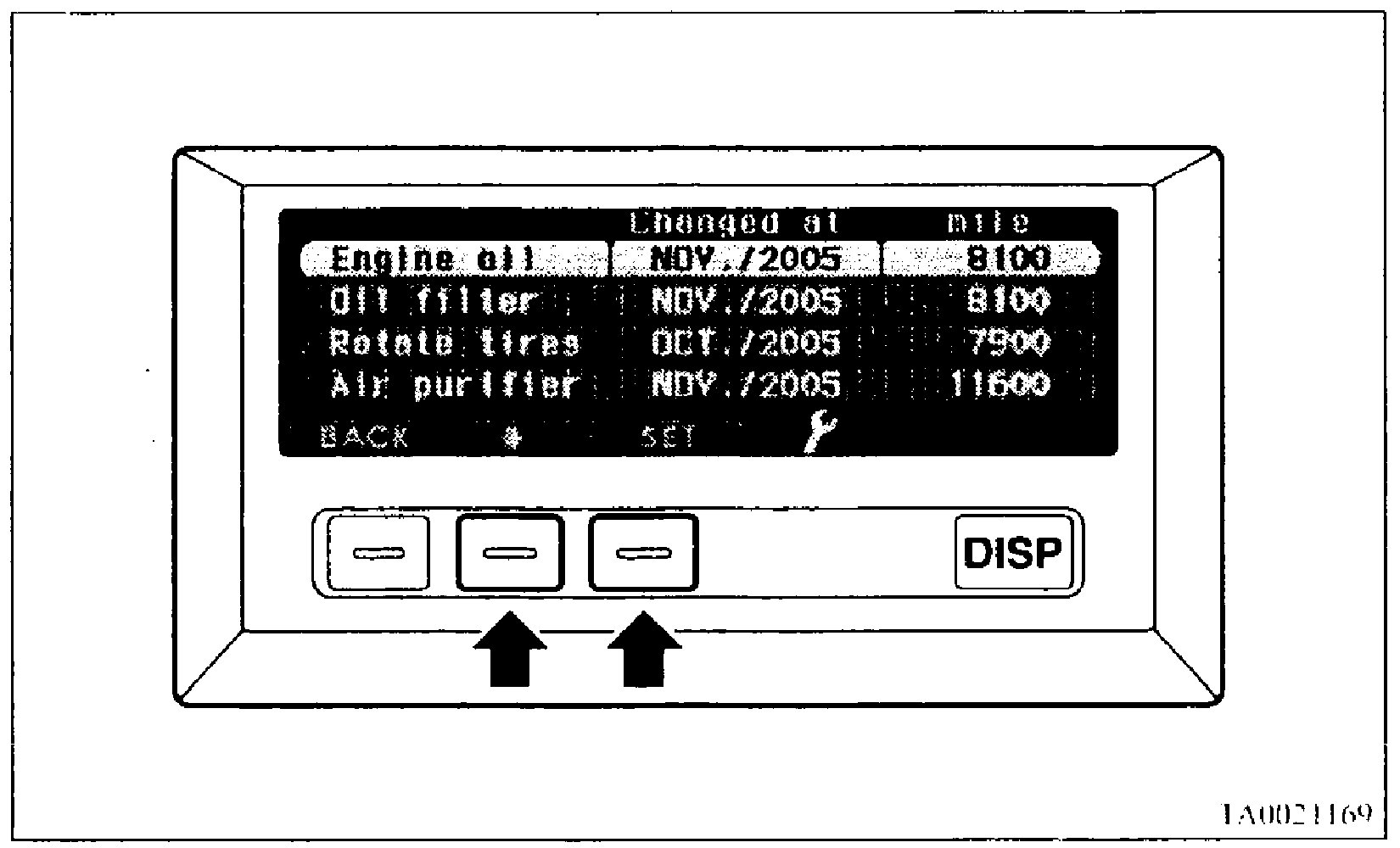

2. Press the "arrow down" function button, align the cursor with the item whose setting you wish to change, and press the "SET" function button.






NOTE:

- Any item for which the driving distance until the next scheduled maintenance has already been covered is indicated by a different color.

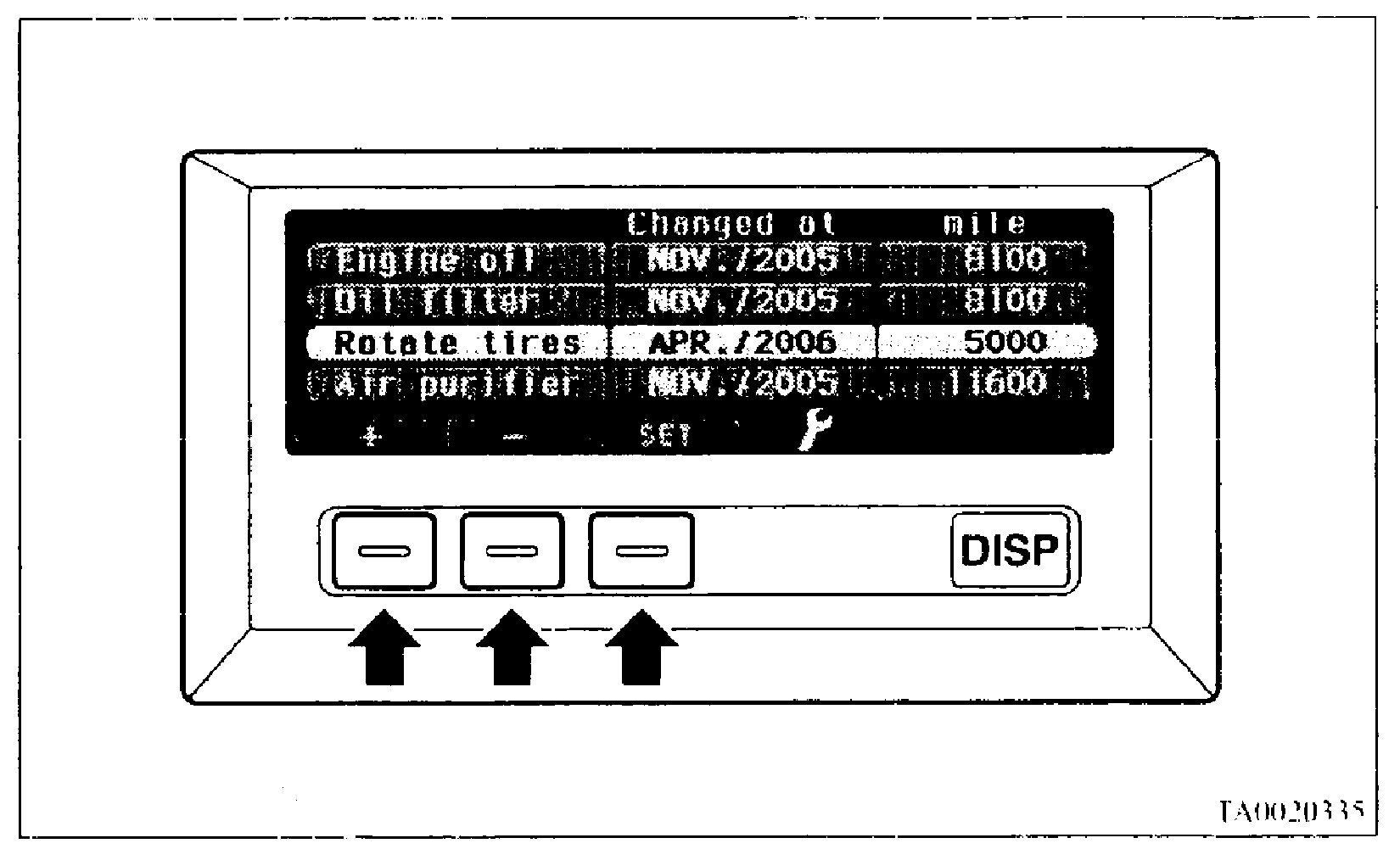

3. The date when maintenance was performed on the selected item will automatically be updated, and the driving distance until the next scheduled maintenance will flash. Press the "+" or "-" button to change the distance until the next scheduled maintenance. After adjusting the distance until the next scheduled maintenance, press the "SET" function button.






NOTE:

- The driving distance until the next scheduled maintenance was not set at the factory, so a figure that serves only as rough guide is initially shown.
- The distance until the next scheduled maintenance can be set in units of 100 miles/km.
- The unit for the distance can be set to mile or km.

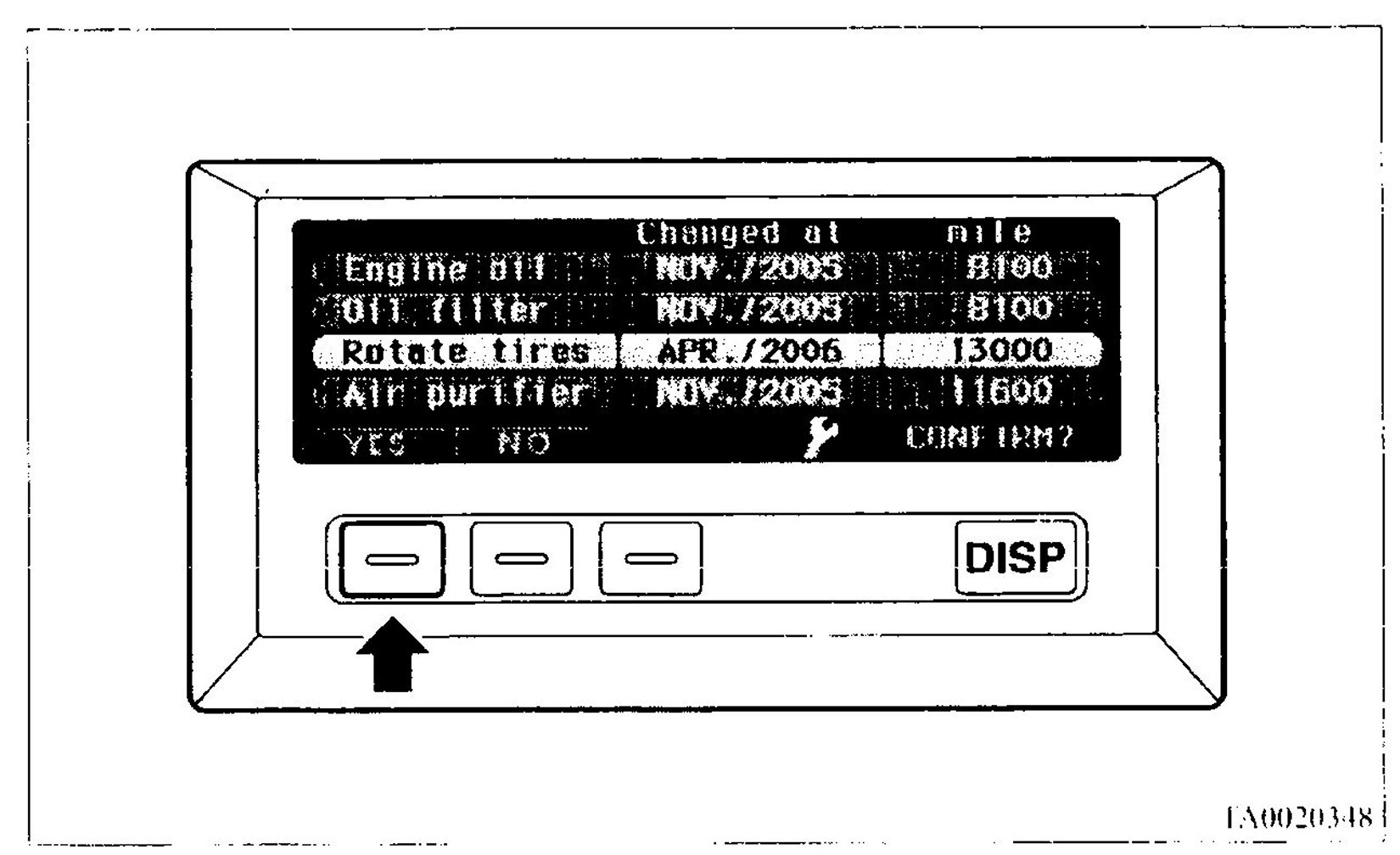

4. Press the "YES" function button to confirm the maintenance date and distance until next scheduled maintenance that were set in step 3. If you press the "NO" function button, the monitor will return to the display in step 2 of this procedure.






NOTE:

- The distance indication represents the total distance to be driven until the next maintenance.
- If the setting change is not successful, the monitor will show "EEPROM is broken" and then return to the display in step 1 of this procedure.

After replacing a component

After replacing a component, freshly set the maintenance date and the distance until the next scheduled maintenance using the display shown in step 1
