Construction Diagram

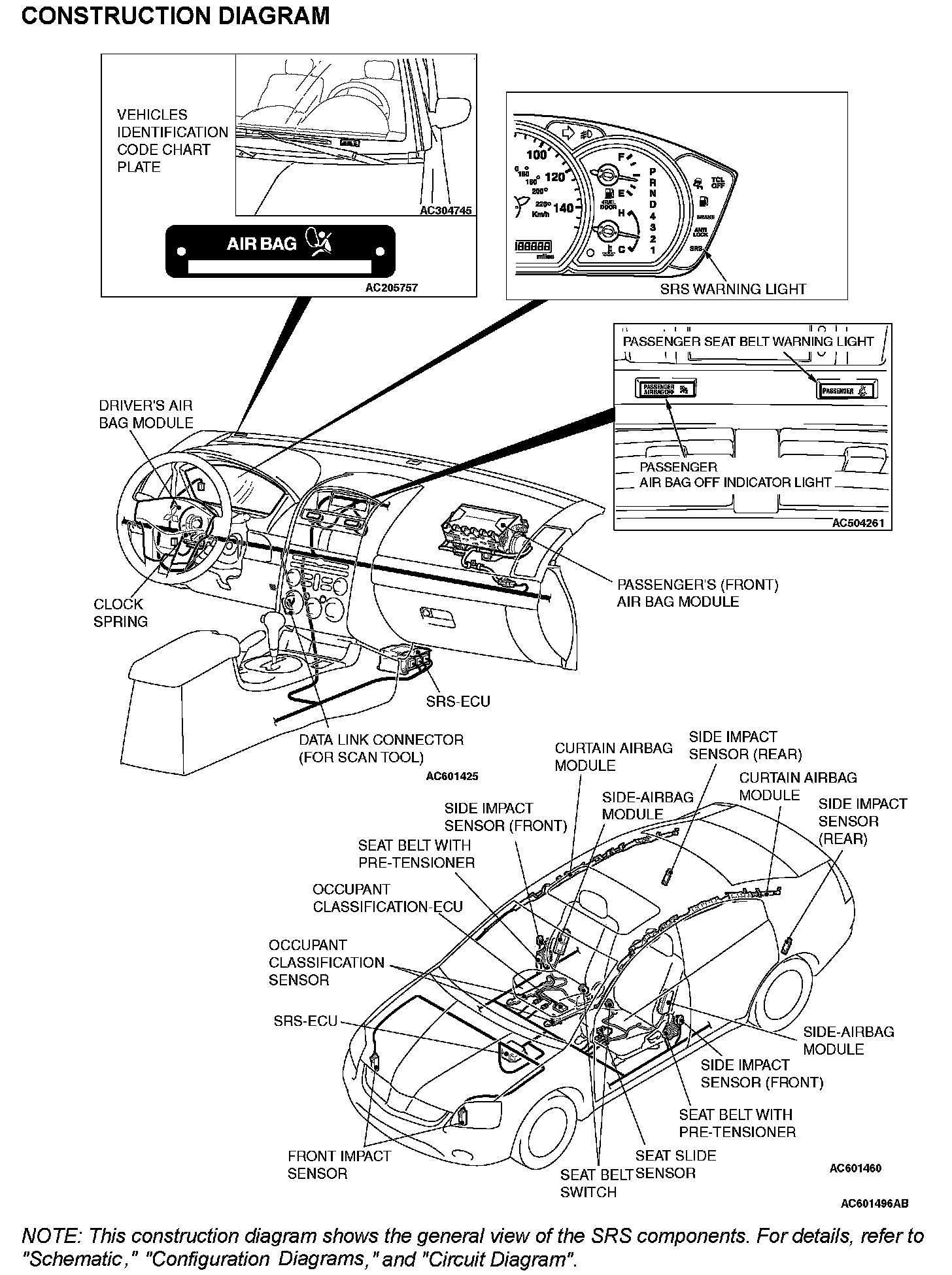

Construction Diagram:

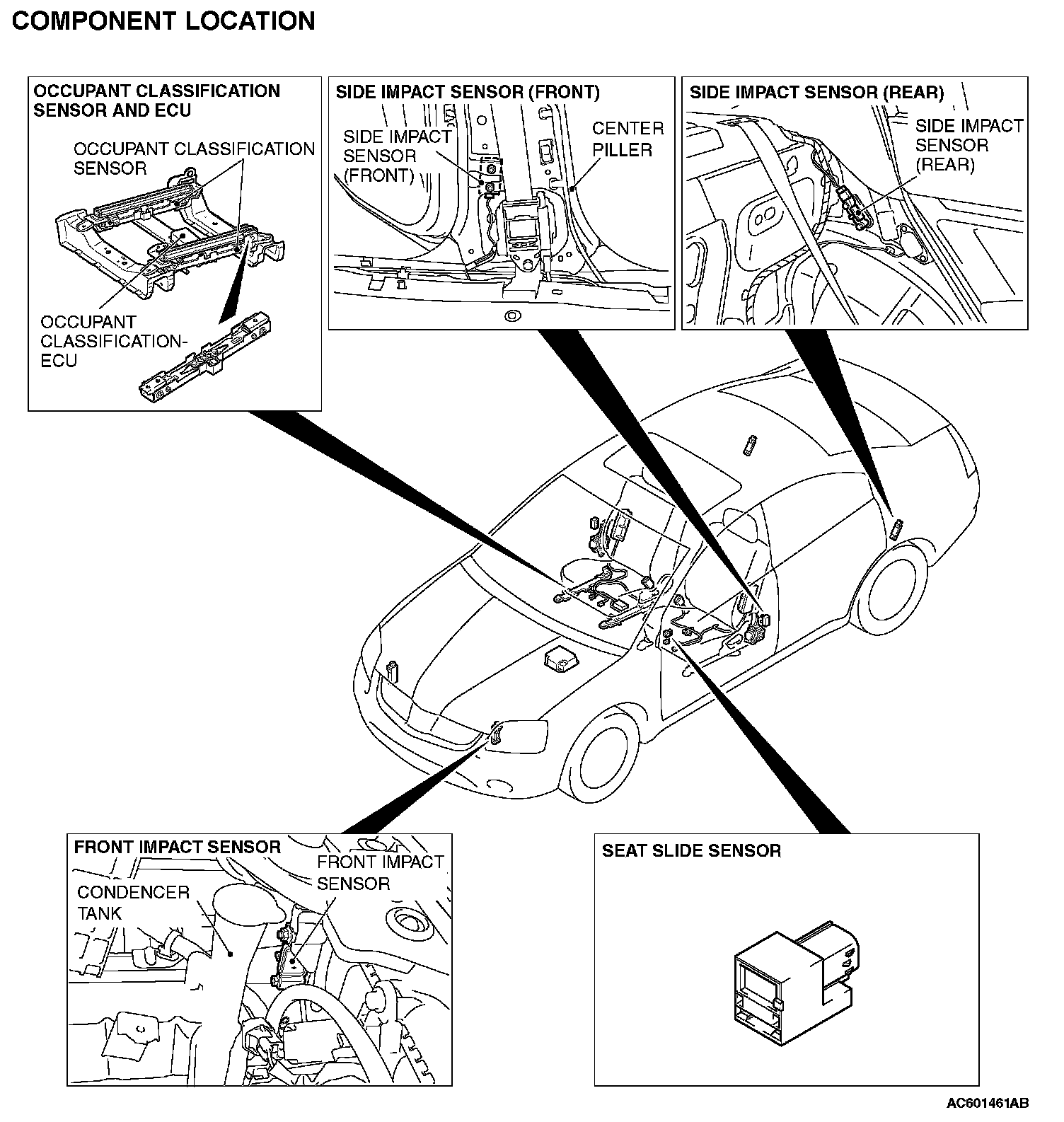

Component Location (Part 1):

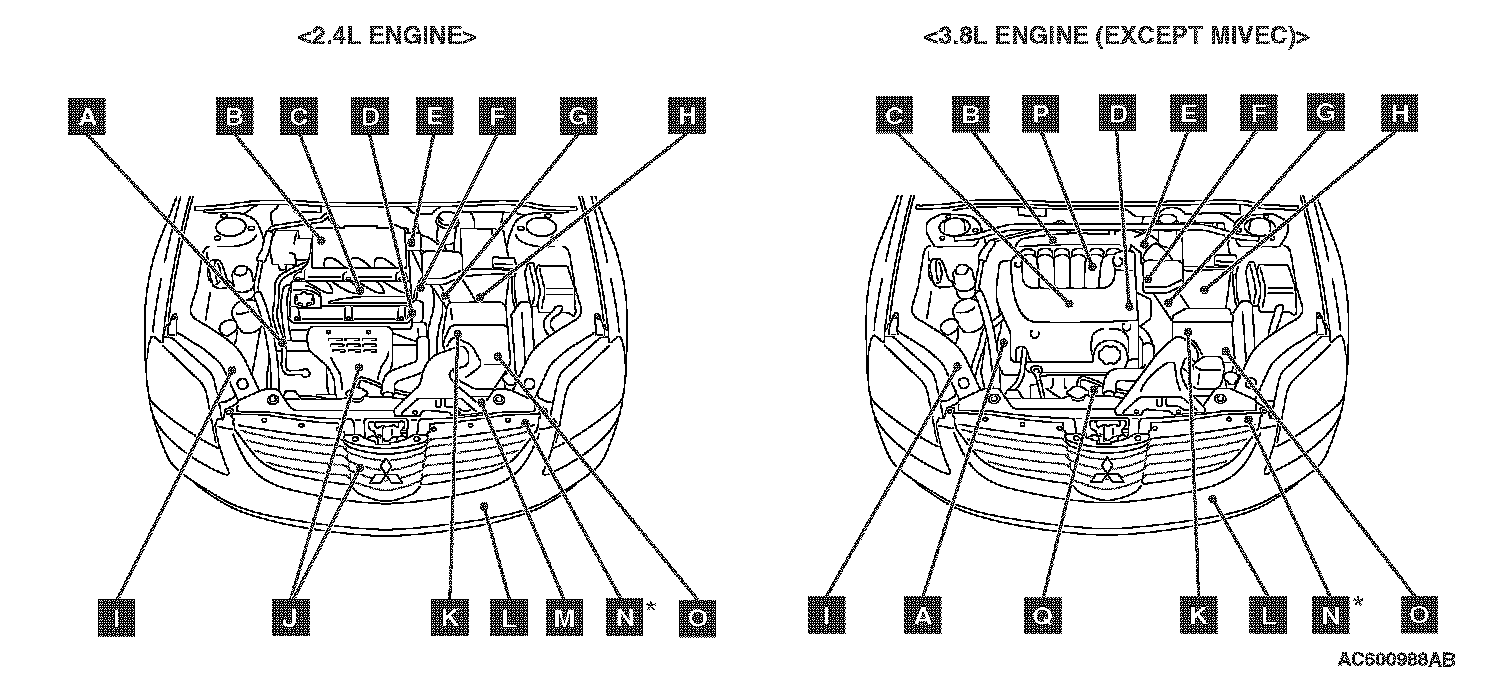

Overall View:

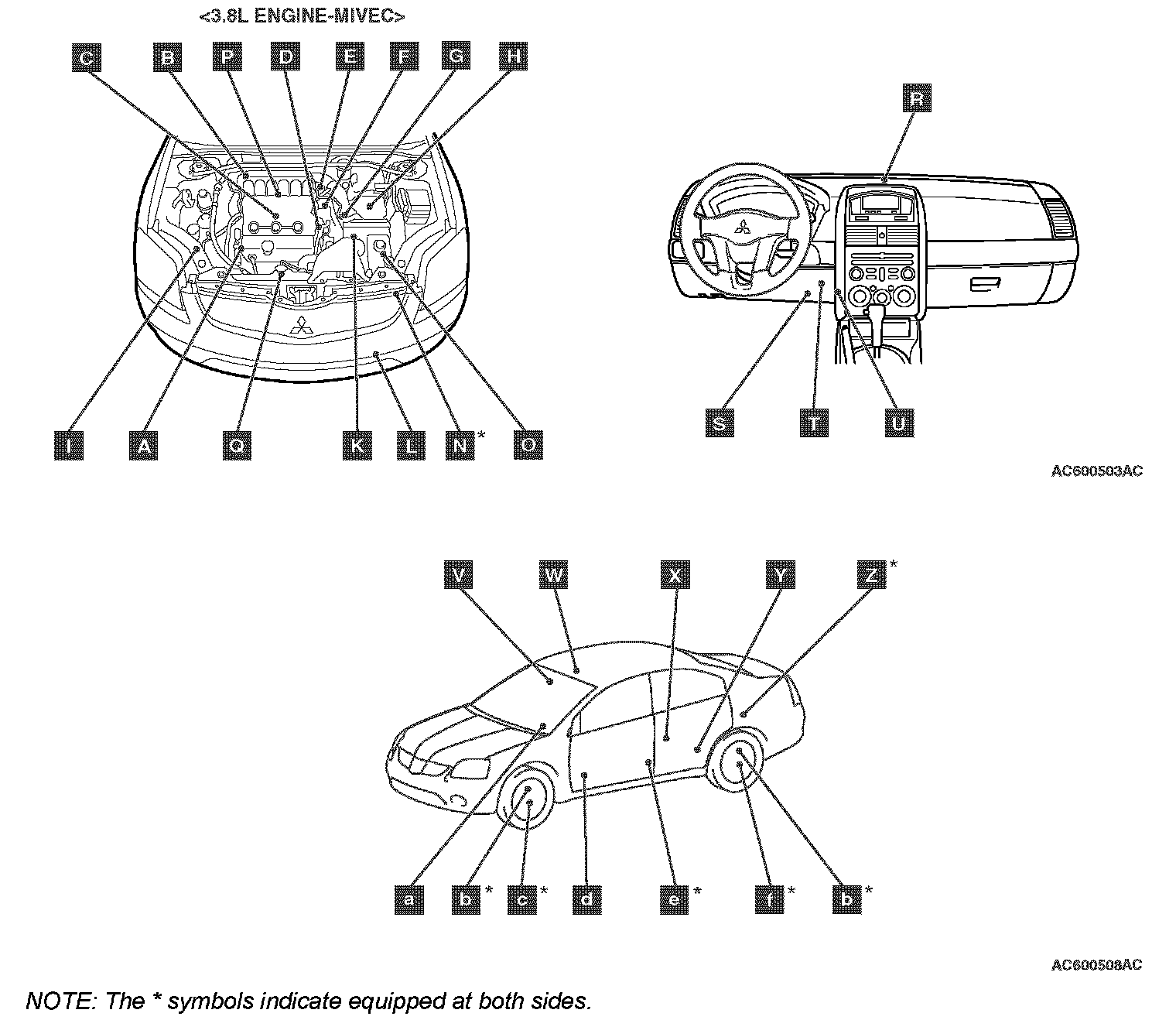

Overall View:

View A:
