Transmission Speed Sensor
>>
Locations
>>

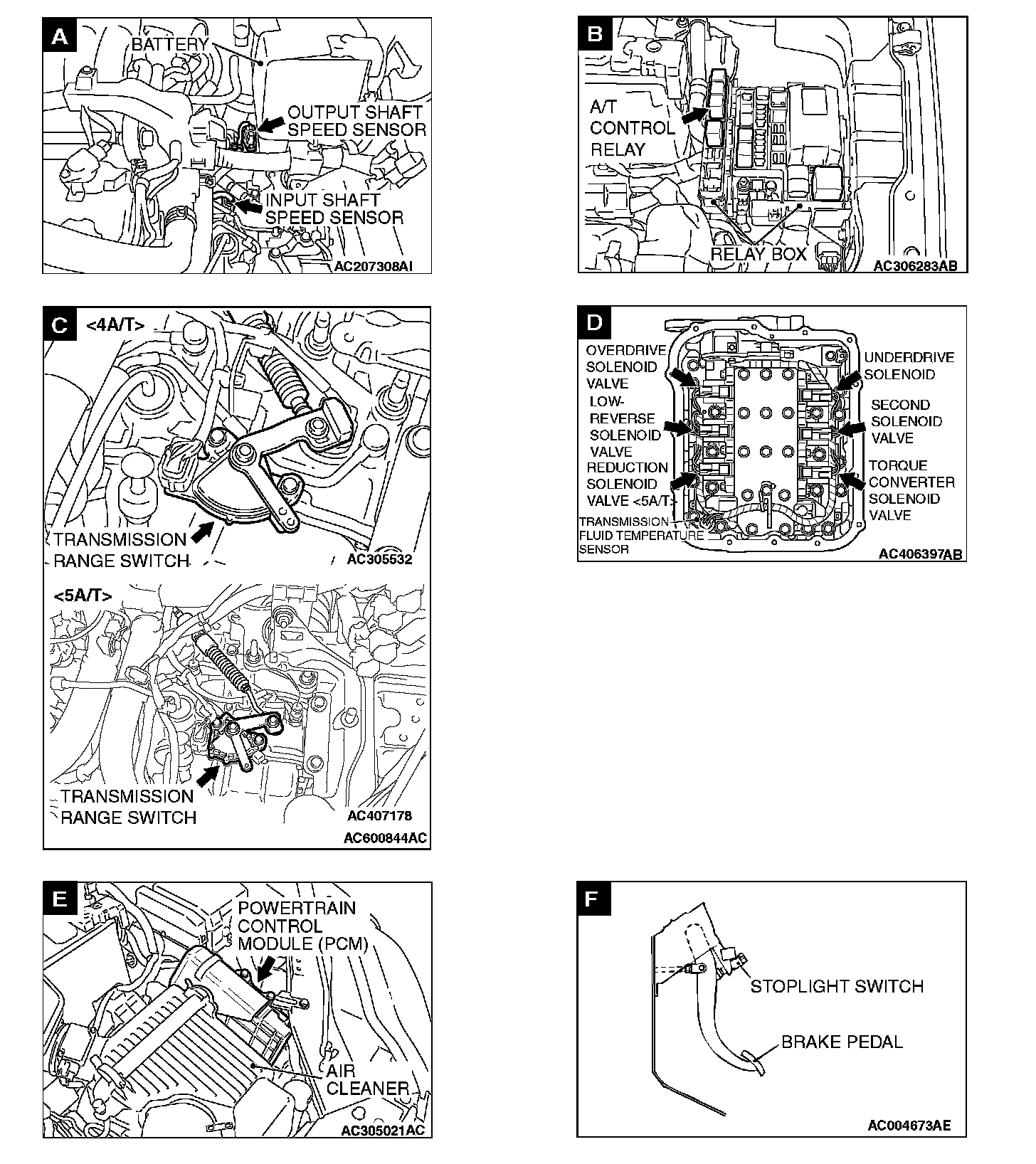

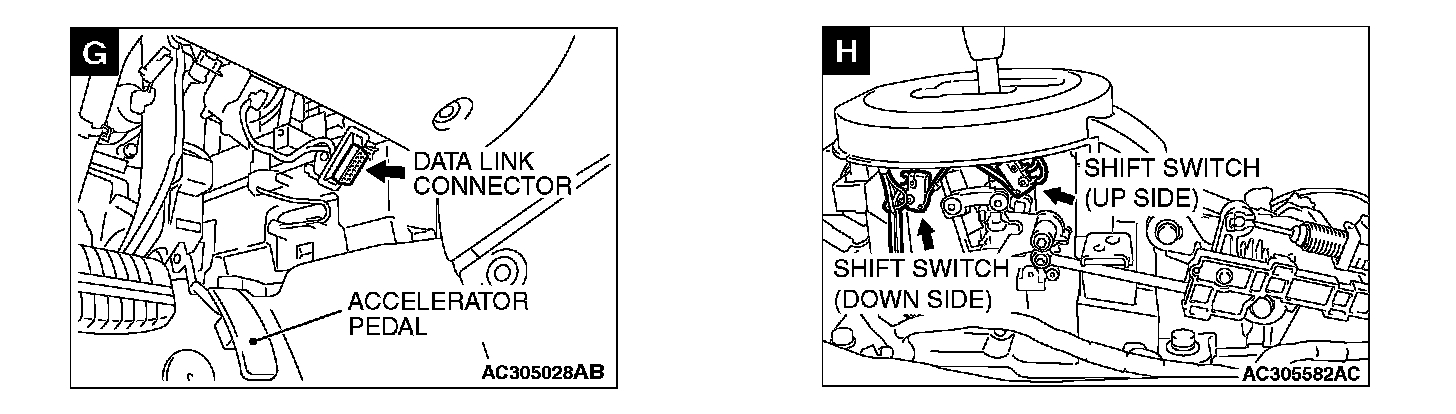

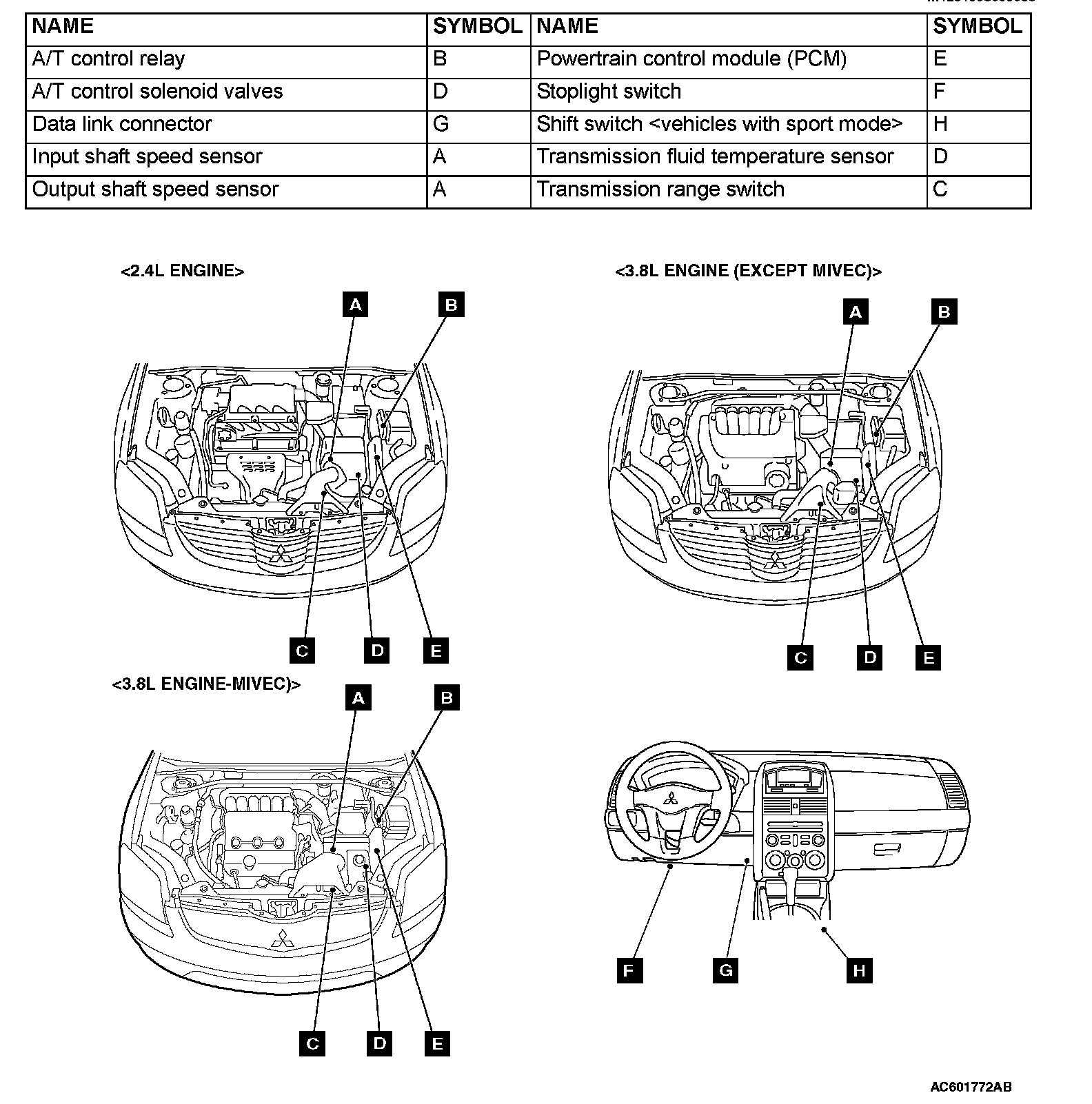

A/T Control Component Layout
A/T Control Component Layout
ON-VEHICLE SERVICE
A/T CONTROL COMPONENT LAYOUT
