F5A5A
F5A5A
VALVE BODY
DISASSEMBLY AND ASSEMBLY

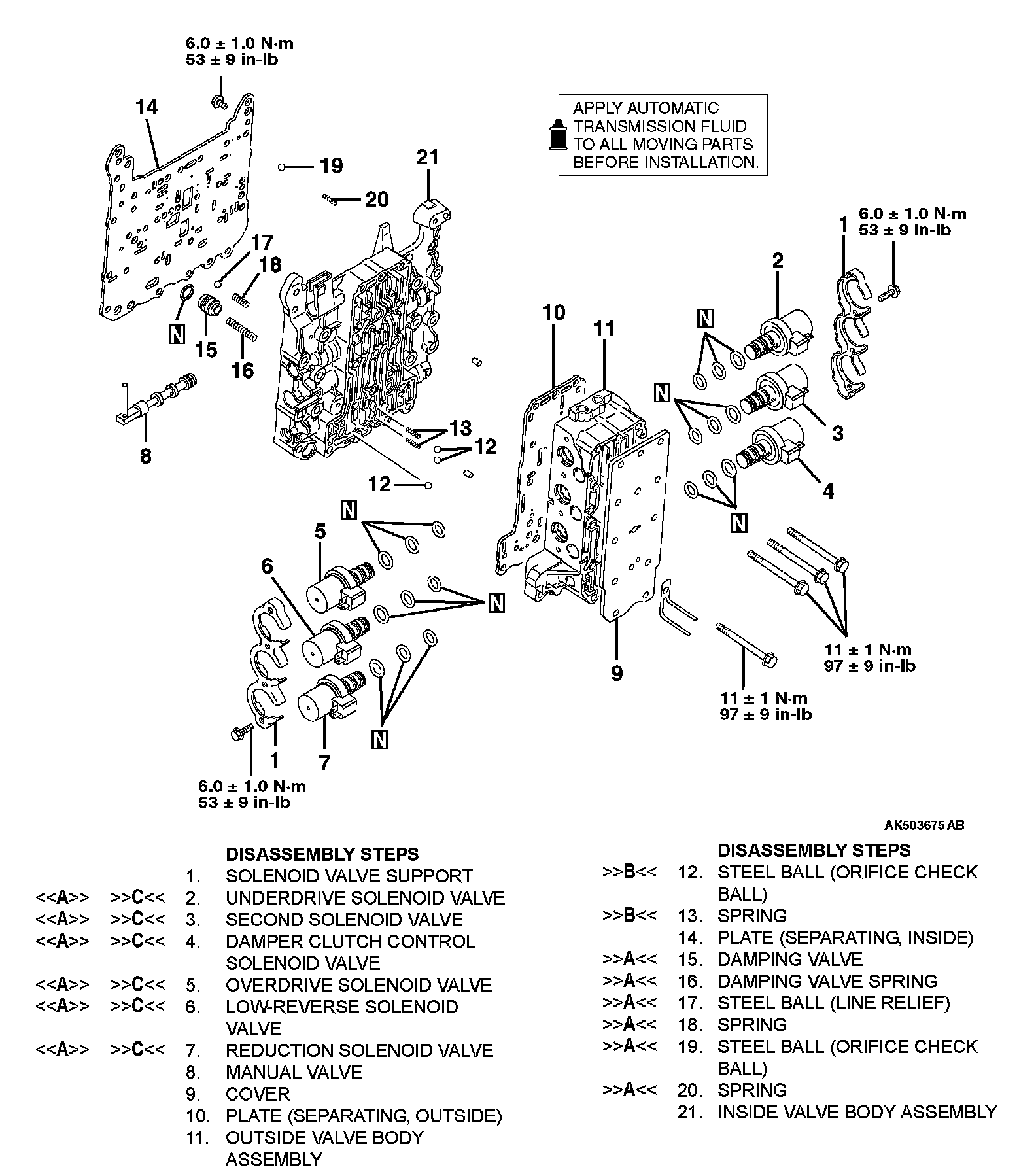

Disassembly Steps 1-21:

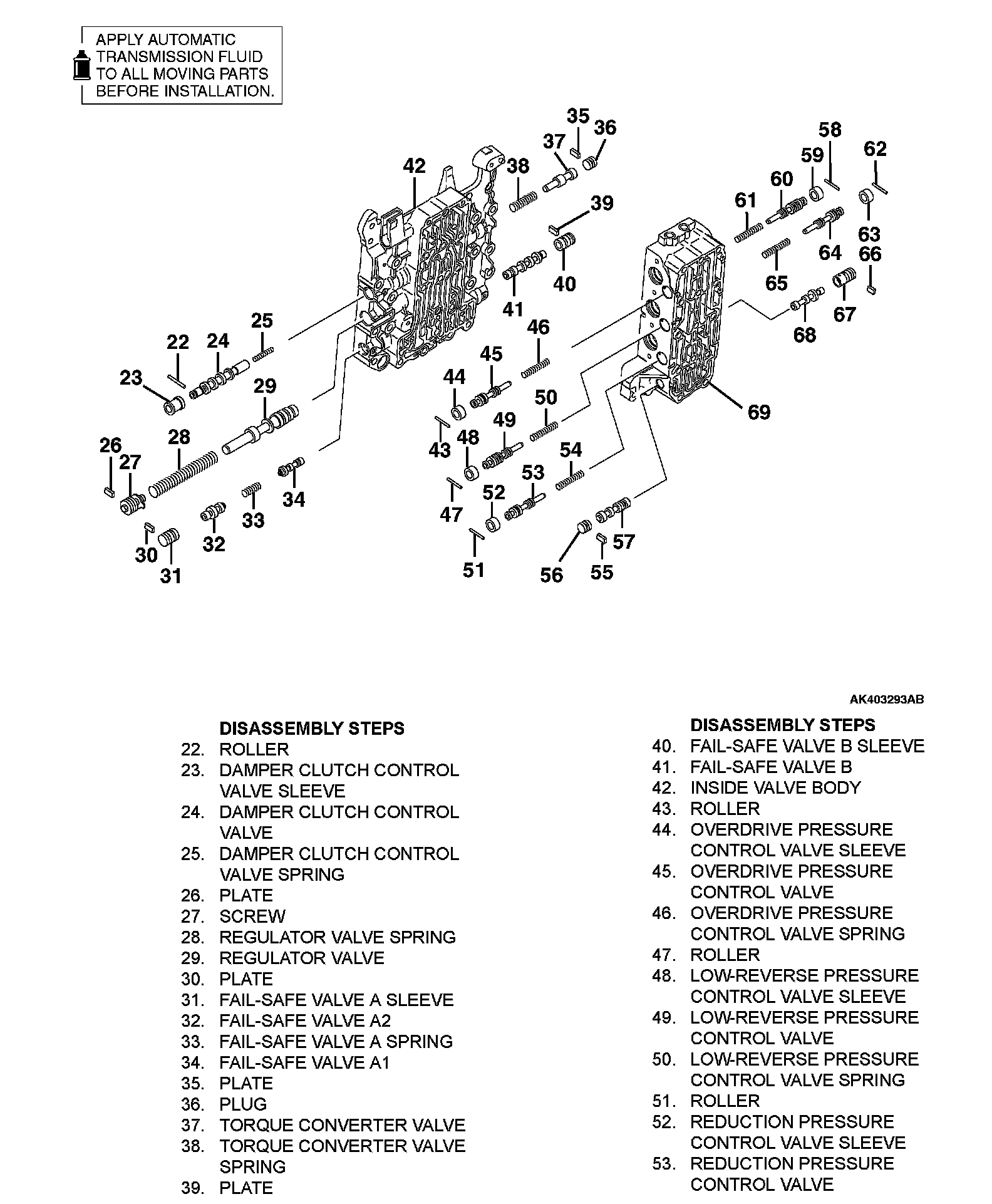

Disassembly Steps 22-53:

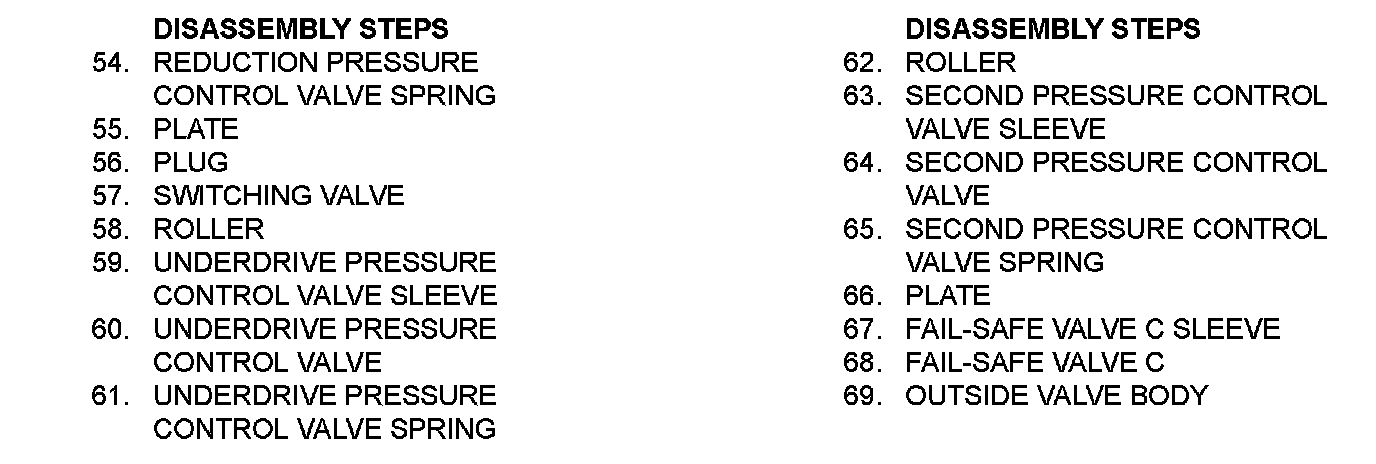

Disassembly Steps 54-69:
