Actuator Test Reference Table
ACTUATOR
TEST REFERENCE TABLE

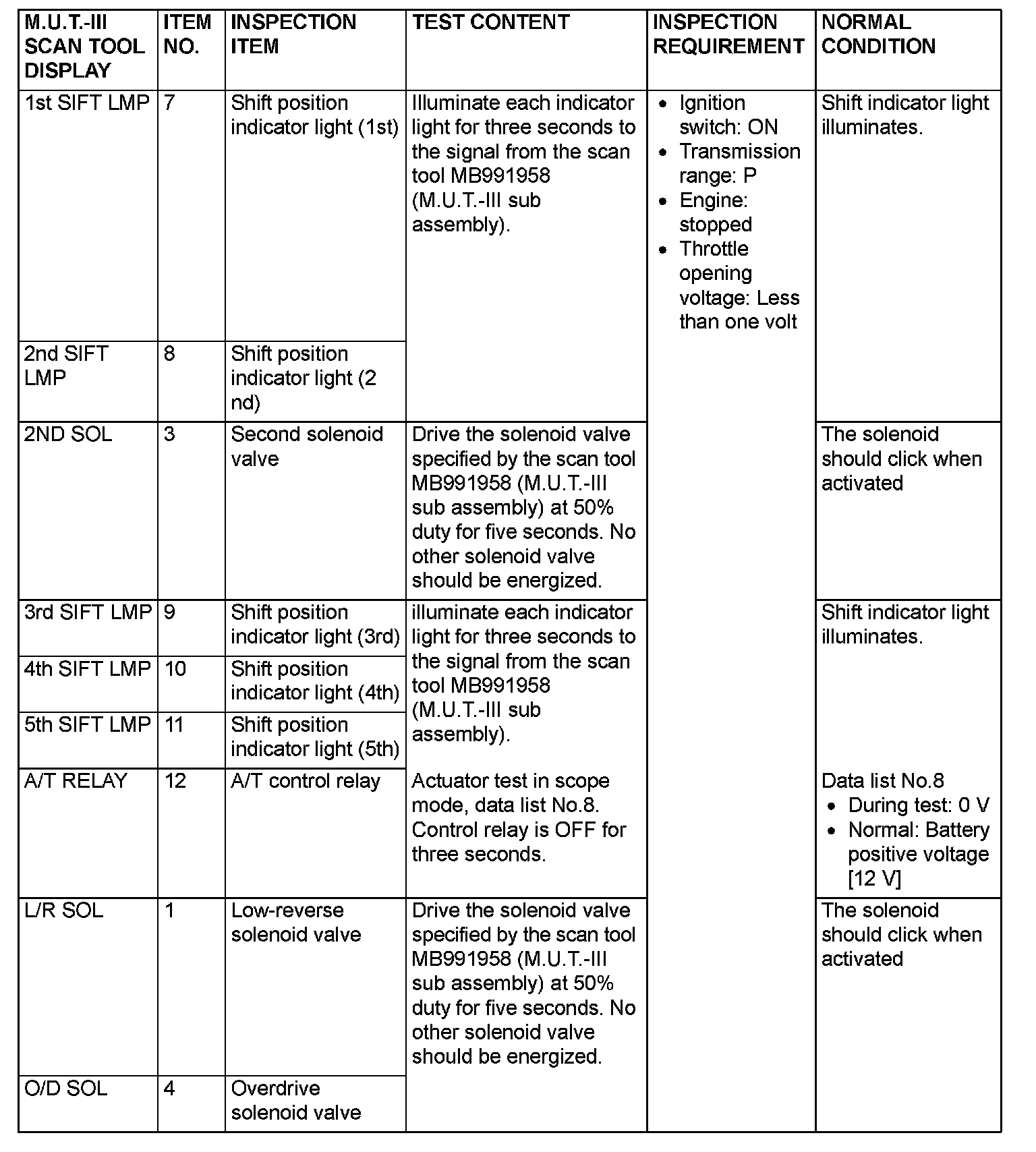

Actuator Test Reference Table (Part 1):
Actuator Test Reference Table (Part 2):
