Power Window Switch: Testing and Inspection

INSPECTION

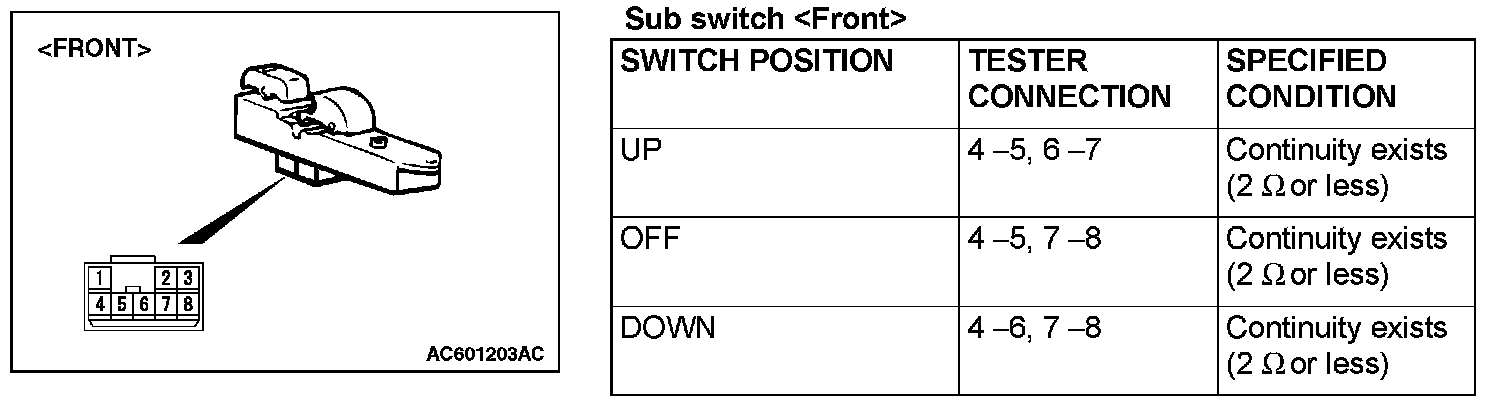

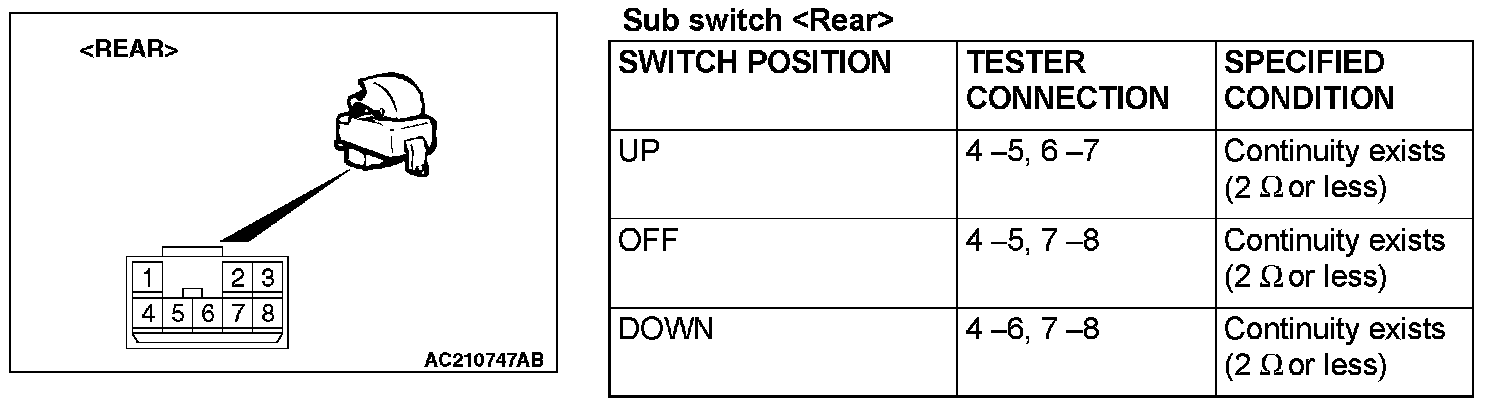

POWER WINDOW SWITCH CONTINUITY CHECK

Remove the power window switch.

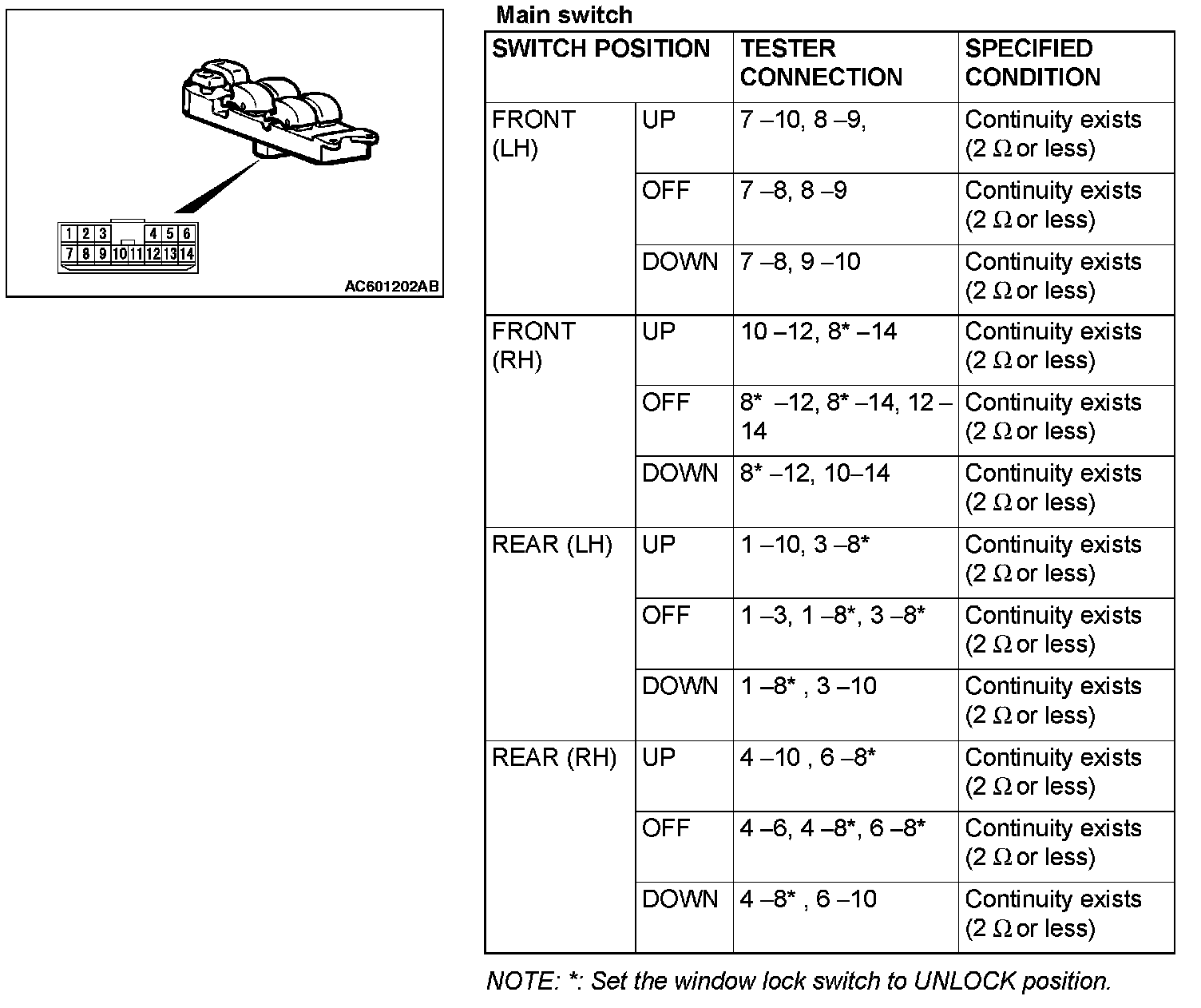

Power window main switch's front ]LH[ switch check

Connect terminal number 13 to the battery positive (+) post and connect terminal number 12 to the battery negative (-) post.
