CRANKSHAFT POSITION SENSOR

REMOVAL AND INSTALLATION ]3.8L ENGINE MIVEC [

Removal Steps 1-3:






INSTALLATION SERVICE POINTS

[A] CRANKSHAFT POSITION SENSOR

INSTALLATION
1. Install the crankshaft position sensor to the cylinder block front case.
2. Tighten the crankshaft position sensor mounting bolts by hand.
3. Tighten the crankshaft position sensor mounting bolts to the specified torque.

Tightening torque:8.5 ± 0.5 N.m (76 ± 4 in-lb)

[B] CLIP INSTALLATION

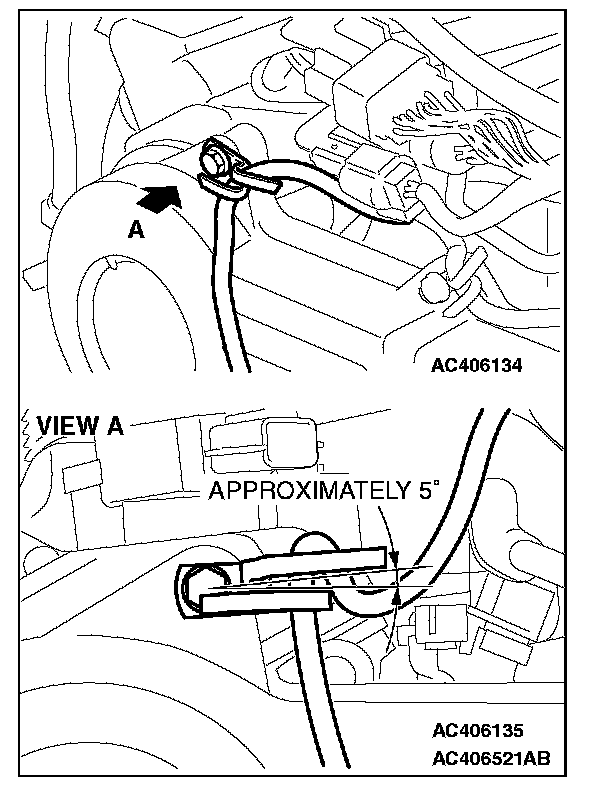

1. Install the clip to the timing belt front upper cover as shown.
2. Tighten the clip mounting bolt to the specified torque.

Tightening torque: 11 ± 1 N.m (98 ± 8 in-lb)
