Main Relay (Computer/Fuel System): Testing and Inspection

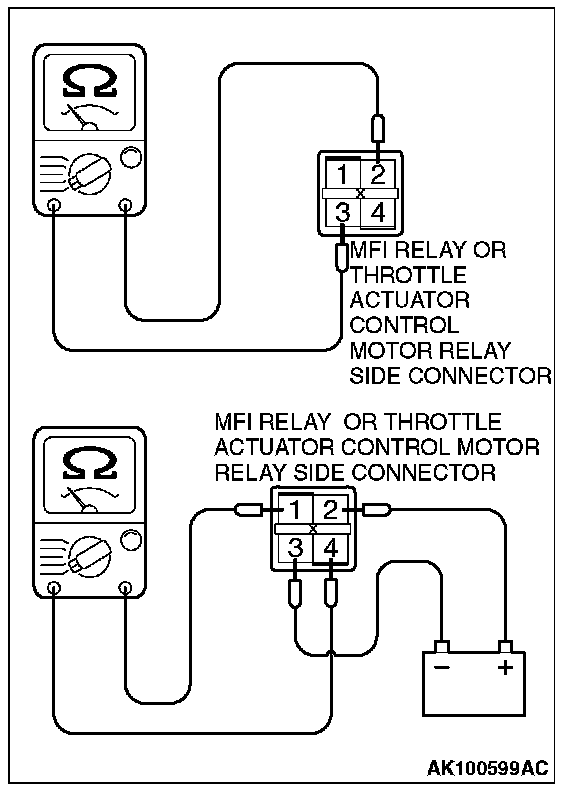

MULTIPORT FUEL INJECTION (MFI) RELAY AND THROTTLE ACTUATOR CONTROL MOTOR RELAY CONTINUITY CHECKInspect the MFI relay and throttle actuator control motor relay for continuity in accordance with the chart shown below.
